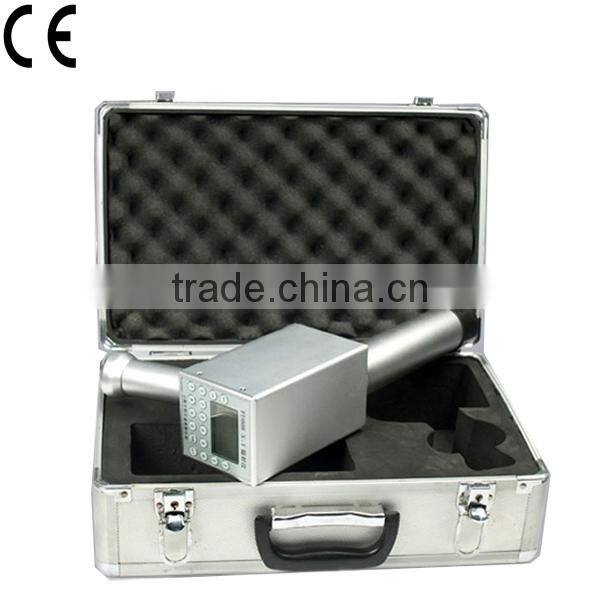

FD-808 gamma ray radioactive detector&water detector

Specifications

FD-808 gamma ray radioactive detector&water detector:
1,Good precision and high accuracy
2,exact location wih low price

FD-808 gamma ray radioactive detector&water detection instrument

FD-808 is an intelligent portable gamma spectrometer and dose rate measurement meter, which completely conforms to GB energy response. You can read nuclear radiation strength or exposure rate directly, also quantitatively calculate contents of radionuclide like uranium, thorium and kalium through spectrogram. It has good stability, simple operation, small volume, light weight etc.

Applications:
Find underground water resource, mineral prospecting, environmental monitoring, geological survey, nuclear laboratory and so on.

Functions:

1. X-gamma radiation total amount measurement
2. U, Th, K quantitative analysis
3. Recognize radionuclide

4. Radioactive detection of environment, building materials and house decoration stuff

5. Search underground water and determine solid objects density

6. Uranium, thorium and kalium prospecting

7. Large area gamma abnormity census, sap and trial trench rock nature extraction and edition



Technical parameters:
1. X,gamma ray energy is less than 4Mev
2. Sensitive thresholds: 350cps/μsv/h
3. Detector: 30mm*30mm NaI (TI) crystal, resolution superior than 8%
4. Range: 0~9999μsv/h 0~9999γ
5. Stability: measuring error ≤±7% (working 8 hours)
6. Accuracy: utmost deviation between measured absorbed dose rate and the value calculated is no more than±10%
7. Working condition: -10°C~+50°C, relative humidity is less than 95%
8. Size: 360mm*90mm*220mm
9. Weight: 2.0kg

Features:
1. 16 bites ADC up to1MSPS, to achieve MCA design technology
2. Timing X-gamma spectra measurement to recognize nuclide and quantitative calculation of radionuclide content, as supplying dose rate
3. Reads: dose rate μSv/h,γ optional; cumulative dose μSv; count rate: CPS; quantitative calculation unit: ppm, %
4. Timing clock, can store 2 million spectra data
5. Custom measuring time: automatic get dose result after measurement
6. Multilayer menu display, auto survey and manual survey mode to choose

7. Chargeable lithium battery to supply; indicates when voltage is low, low power consumption, fast and convenient
8. Power consumption: less than 160MW
