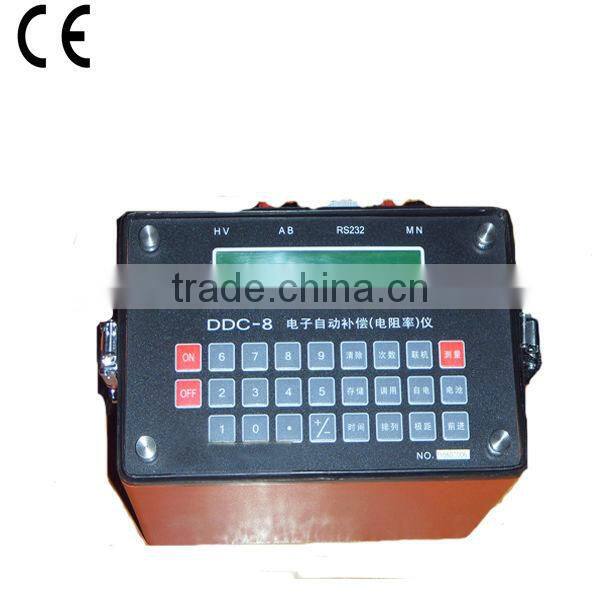

DDC-8 shell water detector
1. With the variation of apparent resistivity, it is widely used for searching underground water and non-metal ores (quartz mine, calcite mine, coal ore and talc ore etc), which also plays an important role in sides as ores prospecting and water detect etc.
2. Micro-PC controlled, resistivity value read directly, multiple arrays, data protection when power-down.
3. It is applied for ground and sap’s electrical prospecting method like vertical electrical sounding (VES), electro-profile method, IP charge method and SP method etc. The applied field includes hydrology, environment, engineering prospecting, metal and non-metal mineral source detect etc.
Specifications:
External HT supply: 10V~700V
Maximum supply current: 3000mA (without set for over-voltage and over-current protection)
Measuring voltage range: ±3000mV
Measuring accuracy: ±2%
Current measuring range: 0.1mA~3000mA; measuring accuracy: ±2%
Stored data: 800 points
Compensation range for natural potential: -1000mV~+1000mV
Input impedance: >30MΩ
Noise suppression against the industrial frequency of 50HZ: > 60dB
Operating temperature range: -10°C~+50°C
