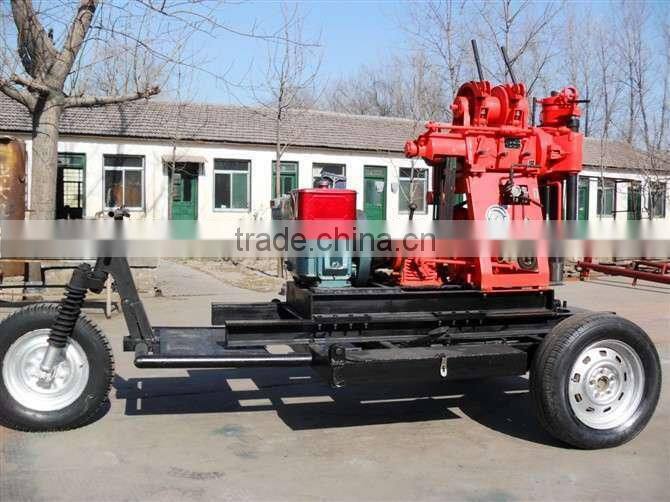

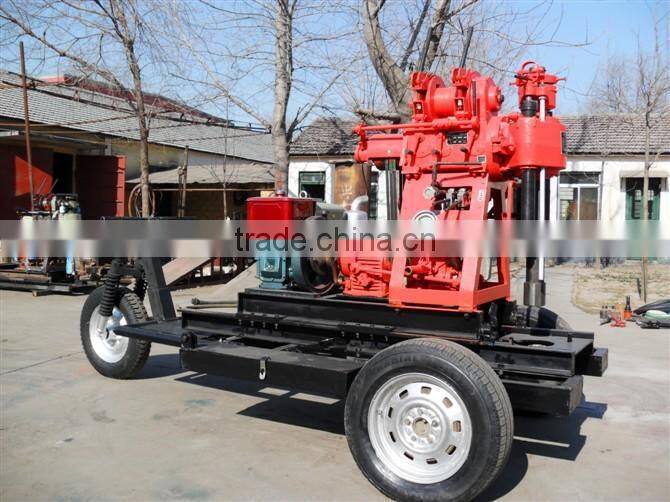

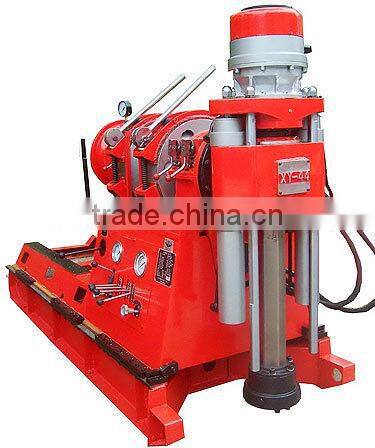

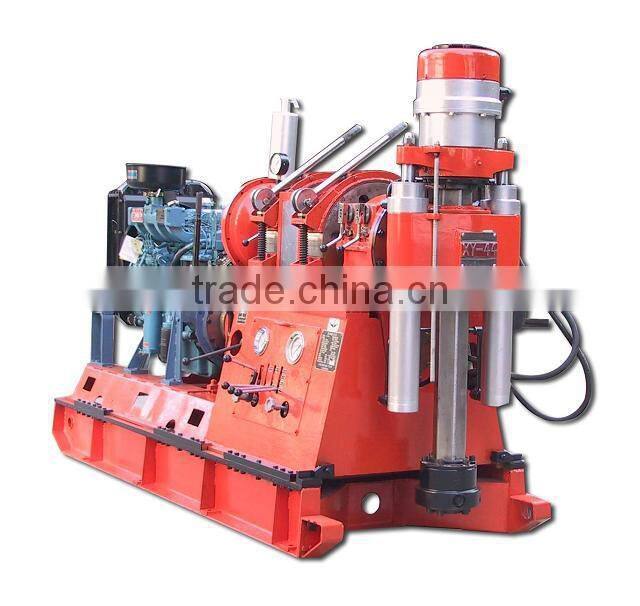

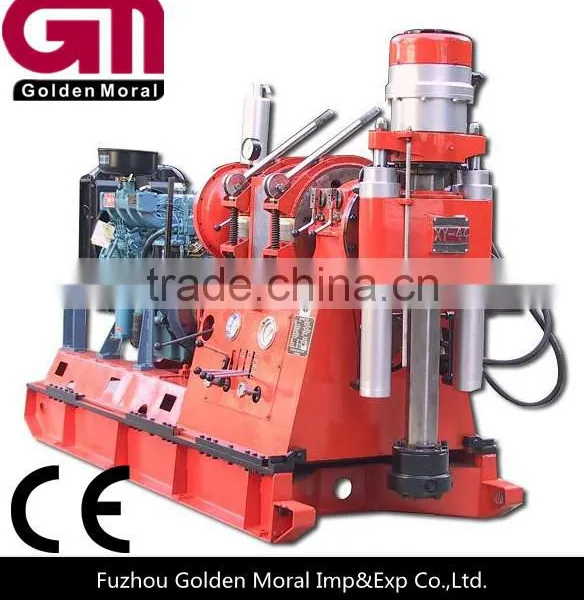

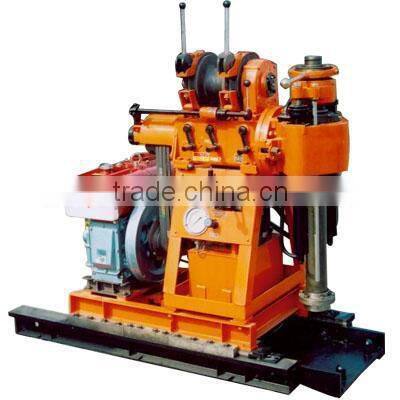

Chinese Machine XY-4A Mine Drill Rig

Specifications

Chinese Machine XY-4A Mine drill rig :

adapt to the needs of the current geological exploration ,develop a new product XY-4A type prospecting rig which based on a drilling capacity of XY-4 core drill. Addition to the main use in alloys, diamond core drilling, also be used for engineering geological survey,

Hydrology and water well drilling, as well as large-caliber foundation construction. It is reasonable structure, light weight, large capacity, versatile, stable performance, reliability, standardization, high level of generalization.

Main features:

1, has more speed series (8) and reasonable speed range, low-speed torque (maximum reached 3200N.m). Both suitable alloy, diamond core drilling, can also be used for engineering geological survey, hydrology and water well drilling into the foundation piles construction.

2, hanging scroll through holes large diameter (80mm), double cylinder hydraulic feed, the trip is longer (up to 600mm) process adaptability, especially for large diameter drill pipe rope core (upper coring) drilling, is conducive to improve drilling efficiency and reduce holes accident.

Drilling capacity diameter 71mm rope core drill pipe rated drilling depth of up to 1000m.

Light weight Detachable good, rig Net Weight 2150kg, the host can be decomposed into 10 components (maximum removable parts weight 300kg), removal convenient, appropriate for the mountain areas.

With water brake, deep hole drilling, drilling down smooth and safe.

6, Single Gear oil pump, simple to install, easy to use, less power consumption, the hydraulic system oil temperature is low and stable work. The system is equipped with a hand pump, can be used when the power does not work from the hand pump hole drilling.

Rig structure is compact and reasonable layout, all components revealed outside, do not overlap, ease of maintenance, maintenance and repair.

8, low center of gravity shift car long distance (up to 460mm) fixed firmly, and high-speed drilling and good stability.

9 with shockproof instrument, instrument life long conducive to grasp hole situation, manipulation handle less manipulation of a flexible and reliable.

1, drilling capacity

Drill pipe type drill pipe specifications drilling depth (m)

inside and outside Φ43 × 6 1400

Domestic drill pipe the flat drill pipe Φ54 × 6 1000

Φ67 × 6 830

Within the thicker drill pipe Φ50 × 5.4 1300

Φ60 × 6 950

Wireline coring drill pipe Φ55.5 × 4.75 1400

Φ71 × 5 1000

Φ89 × 5 800

Drilling angle: 0 to 360 °

3, power machine:

Motor Y225S-4 37kW 1480r/min

Diesel engine R4105G53 42kW 1500r/min

4 gyrator

Type: double cylinder hydraulic feed mechanical rotary

Hanging scroll through hole diameter: 80mm

Spindle speed: power head speed (r / min) 1480 (used for core drilling)

Forward low speed (r / min) 80; 148; 212; 308

Forward high-speed (r / min) 247; 456; 650; 945

Inversion (r / min) 66; 201

Vertical shaft Maximum torque: 3.2kN.m

Spindle stroke: 600mm

Hanging scroll largest since gravity: 120kN

The vertical shaft biggest plus pressure: 90kN

5, winch

Type: planetary gear

Rope diameter: 17.5mm6W (16) or 18.5mm6 × 19

Reel of wire rope capacity: (17.5mm) (170kg / square mm) 110m

(18.5mm) (170kg / square mm) 90m

Single rope lifting force: 45kN

When the power machine speed to 1500r/min: 0.70; 1.29; 1.84; 2.68m / s

6 clutch

Type: dry monolithic friction clutch

7 gearbox

Type: sliding gear transmission (n-1 anti-)

8 oil pump

Type: Single Gear oil pump

Displacement: 20ml / r

9, water brake

Operating speed: 700 ~ 1800r/min

Single rope balance speed: 3 ~ 8m / s

Single rope balancing load: 45kN

10, the rack

Type: Skid (skid-speed)

Rig Back Stroke: 460mm

11, Dimensions (L × W × H): 3030 × 1100 × 1890mm
