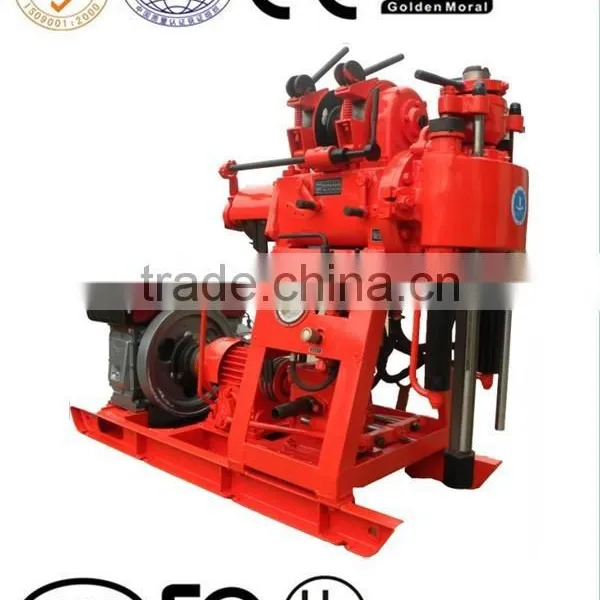

XY-180 Well Water Drill Core Drilling Water Drill
- Ningbo
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Gasoline | Place of Origin | Fujian, China | |
| Brand Name | GM | Model Number | XY-180 | |
| Usage | Other | Voltage | 220 | |
| Power(W) | 411kw | Dimension(L*W*H) | 3.1*0.9*1.3m | |
| Weight | 610kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Overseas third-party support available |
Product Description

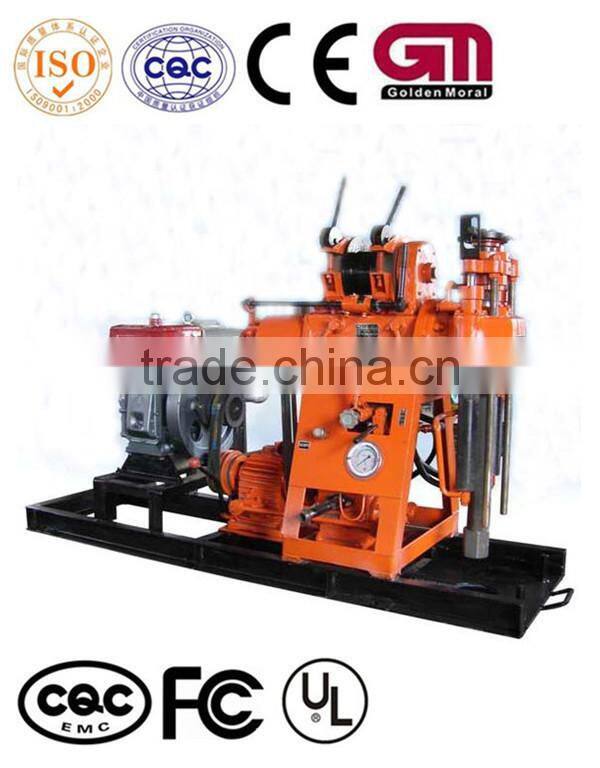

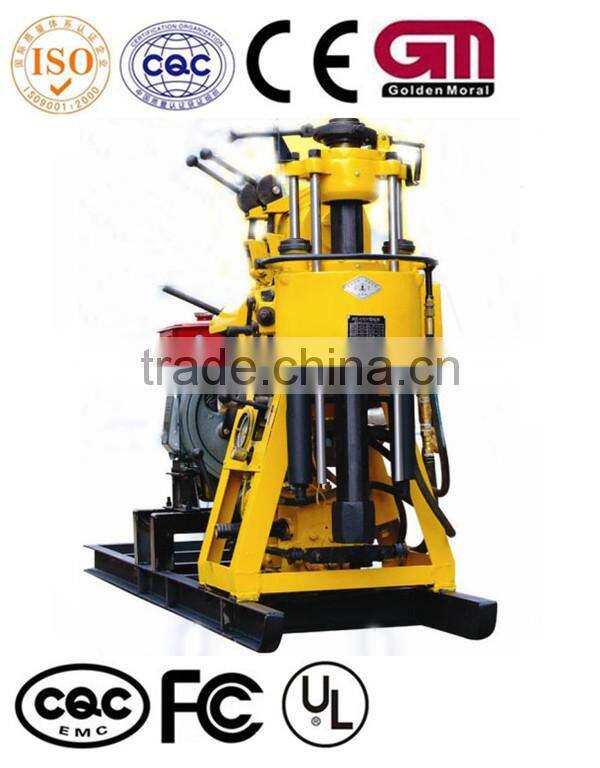

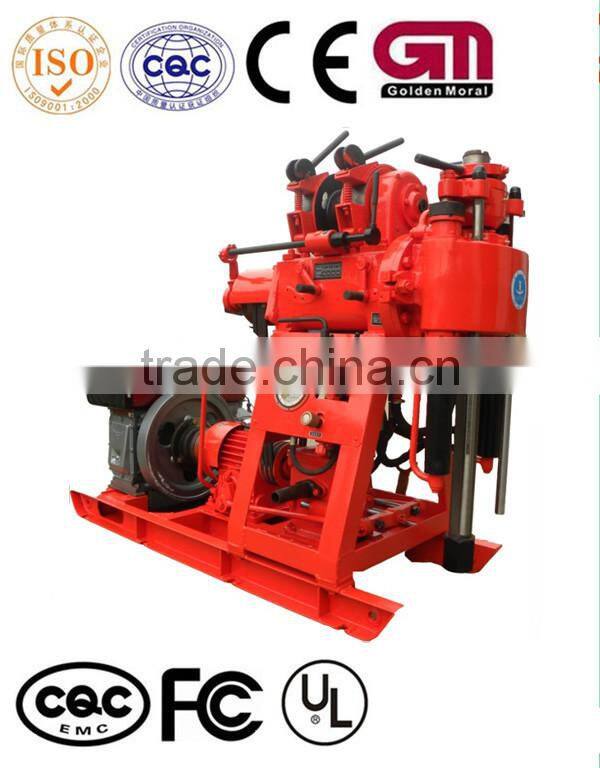

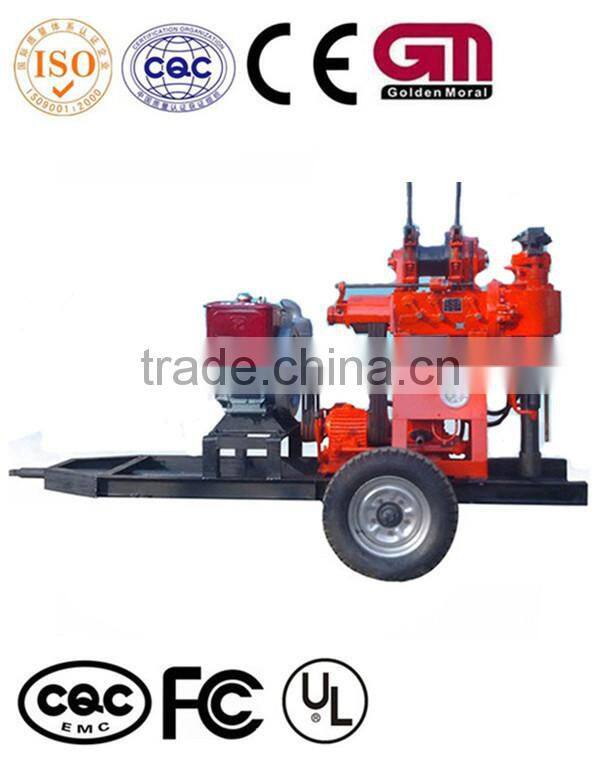

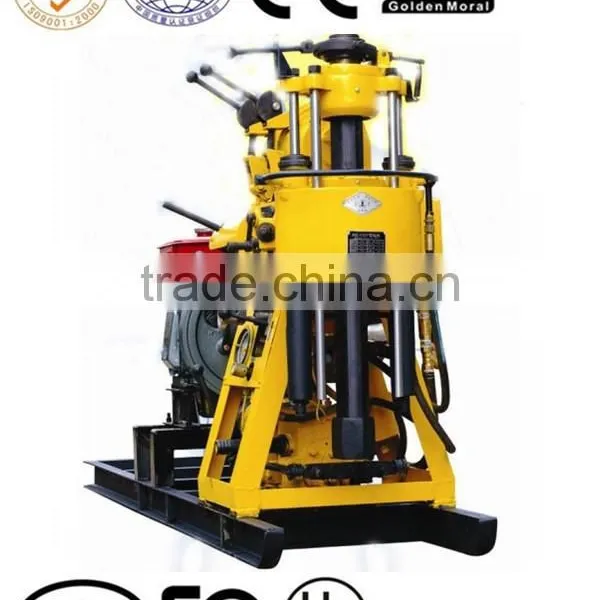

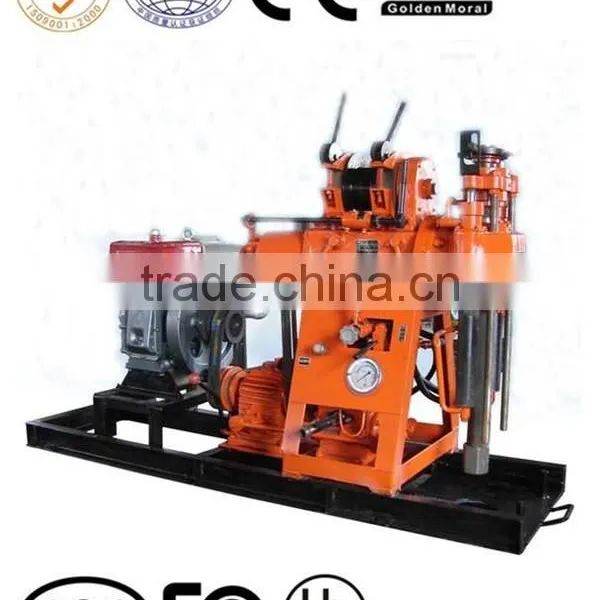

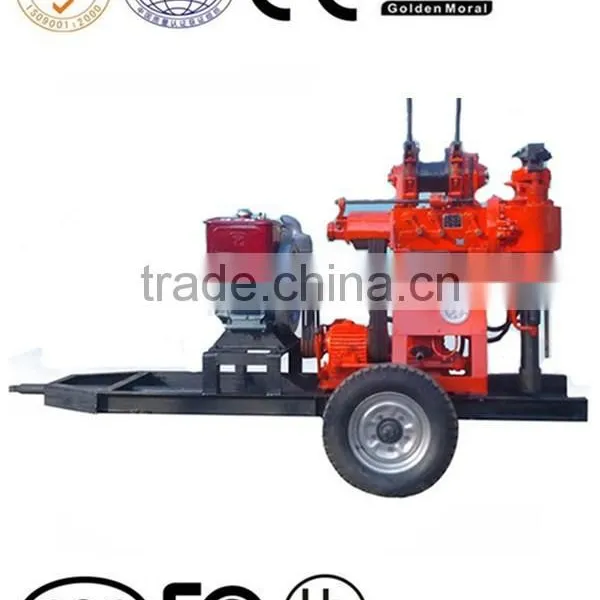

XY-180 Well water drill core drilling water drill
Main Features
Easy operation and high efficency as the hydraulic feeding be taken;High speed,improve drilling efficiency;As the ball type chuck,it can complete no-stopping roating while the spindle relift;Two kinds of hexagonal driving lever,use for different geology condition;
Conicity clutch,strong torque and high quanlity
Geological exploration,rodabed and tall building groundsill geology investigation Kinds of survey hole in concrete structures.
Specifications | ||
Unity machine parameter | ||
Drilling depth | 100 180m | |
Drill rod caliber | 50 42mm | |
End hole caliber | 75 46mm | |
Maximum open hole caliber | 220mm | |
Drilling angle | 90°~75° | |
Unity machine dimensions | 2.1×0.9×1.3m | |
Drill weight (No include power) | 610kg | |
Spindle | ||
spindle speed | 130 300 480 730 830 1045r/min | |
Spindle stroke | 450mm | |
Hoist | ||
Max.single line hoisting capacity | 11KN | |
Single line lifting speed | 1.06 0.67 0.32m/s | |
Tightrope caliber | 9.3mm | |
Tightrope cubic measure | 35m | |
Hug floodgate belt width | 50mm | |
Hug floodgate caliber | 240mm | |

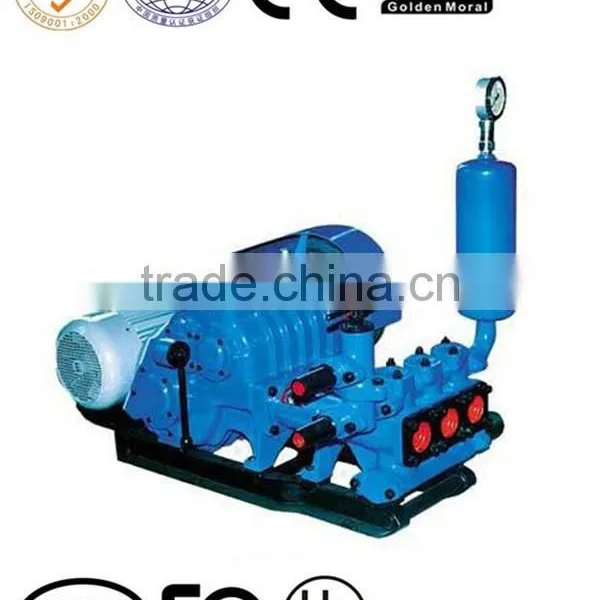

Mud pump | ||
Type | Horizontal single urn twin-action | |
Displacement | 95 77L/min | |
Diesle engine | s1105 18HP | |
Electric motor | Y160M—4 11KW | |
Maximum pressure | 1.2Mpa | |
Work pressure | 0.7Mpa | |
