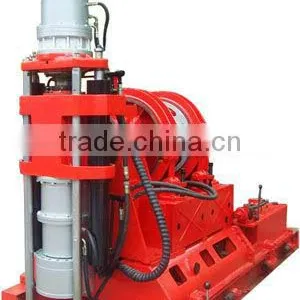

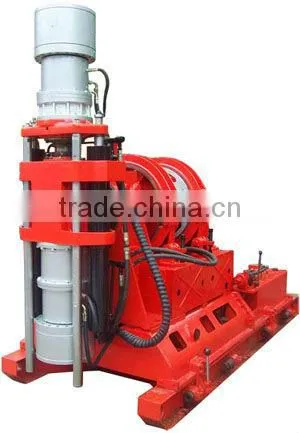

XY-5 Geotechnical Drill Rig

XY-5 Geotechnical Drill Rig : XY-5 mining drill rig is mainly used for metal and nonmetal solid deposit exploration diamond small caliber drilling. Can also be used for large diameter alloy drilling. Drilling vertical holes and inclined holes. Also be used for hydrological drilling of oil and gas field exploration and engineering. XY-5 drill rig is mechanical - hydraulic drive spindle type core drilling rig. Rig reasonable structure, smooth operation, reliable work, easy to manipulate, strong and durable, the disintegration of performance, ease of installation, commissioning and repair characteristics. 1, drilling depth 50 drill pipe: 1500m; 60 drill pipe: 1200m 2 gyrator Spindle speed (4105G58 diesel engines) Forward 8-speed: 80 ~ 1000r/min Reverse 2-speed: 68; 211r/min Spindle stroke: 600mm Verical shaft diameter: 96mm Maximum lifting capacity: 250kN Maximum pressure capacity: 180kN 3, winches Lifting speed (third floor): 0.9; 1.8; 2.45; 3.2m / s Maximum lift capacity (single rope): 40kN 4, the mobile device Moving the cylinder stroke: 450mm 5, power (optional) Motor: 55kW; 1470r/min Diesel Engine: 70kW; 2000r/min 6, the rig weight (not including power): 3000kg Dimensions (L × W × H): 3190×1495×2140mm 8, power The motor: Y250M-4 type 55kw 1470r/min Diesel: R4105ZG4 62kw 2000r/min 9 Weight (without power): 3620kg
