Specifications
Rubber Water HoseReinforcement: High tensile synthetic yarn braided or spiraled.
Standard length: 50m, 100m

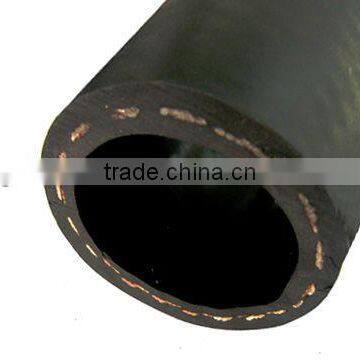

Rubber Water Hose
Application: Mainly used for conveying of water or neutral liquid at under normal temperature in construction, industry and agriculture etc.
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: High tensile synthetic yarn braided or spiraled.
Cover: NR & NBR synthetic rubber, black and red in colors etc, surfaces of cover can be smooth and corrugated.
Characteristics: Abrasion resistant, weather resistant and zone resistant. Its of flexible, light in weight, anti-bending and less distortion.
Standard length: 50m, 100m
Temperature range: -20ºC to +50ºC (-4ºF to+122ºF)
Technique parameter:
Inside Diameter | Outside Diameter (mm) | Reinforced Layer(B) | Burst pressure (MPa) | Length Max. (m) | Weight (kg/m) | Working pressure (MPa) | |
inch | mm | ||||||
3/16 | 5 | 12 | 1 | 1.5~3.0 | 100 | 0.15 | 0.5~1.0 |
1/4 | 6 | 13 | 1 | 1.5~3.0 | 100 | 0.17 | 0.5~1.0 |
5/16 | 8 | 15 | 1 | 1.5~3.0 | 100 | 0.22 | 0.5~1.0 |
3/8 | 10 | 17 | 1 | 1.5~3.0 | 100 | 0.25 | 0.5~1.0 |
1/2 | 13 | 21 | 1 | 1.5~3.0 | 100 | 0.39 | 0.5~1.0 |
5/8 | 16 | 24 | 1 | 1.5~3.0 | 100 | 0.44 | 0.5~1.0 |
3/4 | 19 | 28 | 1 | 1.5~3.0 | 100 | 0.55 | 0.5~1.0 |
1 | 25 | 35 | 1 | 1.5~3.0 | 50 | 0.86 | 0.5~1.0 |
Note: 1MPa=10bar≈145psi≈10kgf/m²
