Help CenterPVC and Rubber Hose
Related Products
Specifications
PVC and Rubber hose1. good performation
2.many sizes
pective price
4.High quality

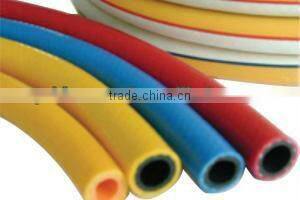

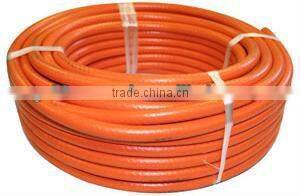

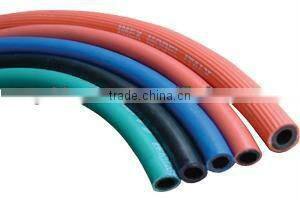

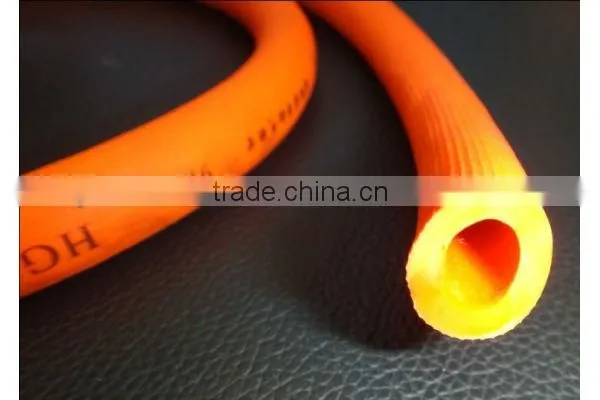

PVC Gas Hose
Application: Mainly used for conveying of liquid gas and natural gas for household fuel gas system.
Tube: Black or other colors flexible PVC.
Reinforcement: High tensile synthetic fibre spiraled.
Cover: Red or yellow flexible PVC, surfaces of cover can be smooth and corrugated.
Characteristics: Weather resistant. Oil resistant, acid & alkali resistant, corrosion and durability etc. Its of high pressure bearable, flexible, light in weight, anti-bending and nice bright surface.
Temperature range: -5ºC - +65ºC (+23ºF to+149ºF)
Technique parameter:
Inside Diameter | Outside Diameter (mm) | Working pressure (MPa) | Burst pressure (MPa) | Length(m) | Weight (kg/m) |
Packing measurement | |
inch | mm | D×H(mm) | |||||
5/16 | 8 | 14 | 2.0 | 6.0 | 100 | 0.135 | 500×140 |
8.5 | 14 | 2.0 | 6.0 | 100 | 0.127 | 500×140 | |
8.5 | 14.5 | 2.0 | 6.0 | 100 | 0.141 | 500×140 | |
3/8 | 9 | 15 | 2.0 | 6.0 | 100 | 0.147 | 520×140 |
10 | 16 | 2.0 | 6.0 | 100 | 0.160 | 520×140 | |
Note: 1MPa=10bar≈145psi≈10kgf/cm²
PVC Gas Hose
Application: Mainly used for conveying of liquid gas and natural gas for household fuel gas system.
Tube: Black or other colors flexible PVC.
Reinforcement: High tensile synthetic fibre spiraled.
Cover: Red or yellow flexible PVC, surfaces of cover can be smooth and corrugated.
Characteristics: Weather resistant. Oil resistant, acid & alkali resistant, corrosion and durability etc. Its of high pressure bearable, flexible, light in weight, anti-bending and nice bright surface.
Temperature range: -5ºC - +65ºC (+23ºF to+149ºF)
Technique parameter:
Inside Diameter | Outside Diameter (mm) | Working pressure (MPa) | Burst pressure (MPa) | Length(m) | Weight (kg/m) |
Packing measurement | |
inch | mm | D×H(mm) | |||||
5/16 | 8 | 14 | 2.0 | 6.0 | 100 | 0.135 | 500×140 |
8.5 | 14 | 2.0 | 6.0 | 100 | 0.127 | 500×140 | |
8.5 | 14.5 | 2.0 | 6.0 | 100 | 0.141 | 500×140 | |
3/8 | 9 | 15 | 2.0 | 6.0 | 100 | 0.147 | 520×140 |
10 | 16 | 2.0 | 6.0 | 100 | 0.160 | 520×140 | |
Note: 1MPa=10bar≈145psi≈10kgf/cm²
Rubber Water Hose
Application: Mainly used for conveying of water or neutral liquid at under normal temperature in construction, industry and agriculture etc.
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: High tensile synthetic yarn braided or spiraled.
Cover: NR & NBR synthetic rubber, black and red in colors etc, surfaces of cover can be smooth and corrugated.
Characteristics: Abrasion resistant, weather resistant and zone resistant. Its of flexible, light in weight, anti-bending and less distortion.
Standard length: 50m, 100m
Temperature range: -20ºC to +50ºC (-4ºF to+122ºF)
