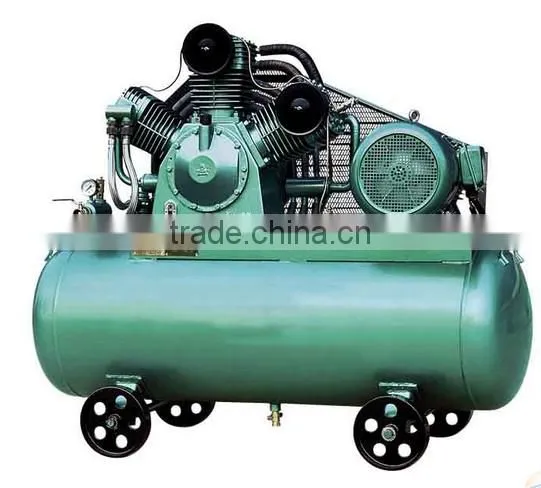

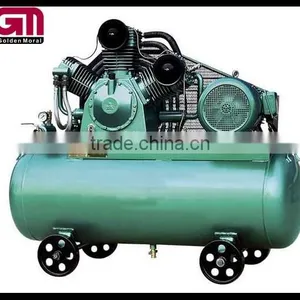

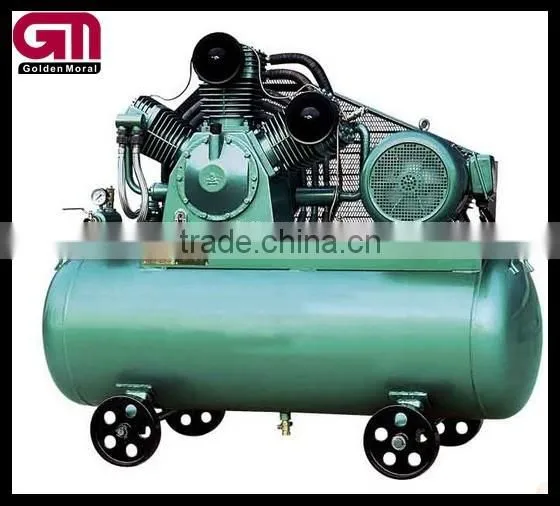

KA-3 Industrial Air compressor
1. Powerful large head design, with good, with enough material to strengthen the design of the main parts, head size and weight are larger than other manufacturers, safety margin is high, with low speed, especially suitable for heavy duty, long time of continuous operation, reliability is especially high, particularly long lifespan.
2. Especially for thermal design and air flow design, the exhaust temperature is low, not carbon deposition, and high efficiency.
3. With ring valve design, the valve material for the Swedish stainless steel valves, valve spring material for the Japanese import of special spring steel valve and valve operating in the bending movement is not so valve performance and life expectancy index particularly good.
4. Piston Ring of Japan RIKEN, durable, not oil.
5. Travel by high-frequency hardening crankshaft, in particular, wear-resistant.
6. Precision balanced by the moving parts, running smoothly with exceptionally low noise
Technical specifications:
For 24 hours continuous operation
| Model | Motor | Cylinder | Displacement | Exhaust PressureMpa | Gas tank | Dimension |
| HP/KW | M3 | mm | ||||
| M3/min | ||||||
| DIA×QTY | ||||||
| KA-30 | 30/22 | LP155×2 | 3 | 0.8(8) | 45 | 1900×850×1400 |
| HP120×1 | ||||||
| KA-25 | 25/18.5 | LP155×2 | 2.5 | 0.8(8) | 0.45 | 1800×800×1370 |
| HP120×1 | ||||||
| KA-20 | 20/15 | 120×3 | 2 | 0.8(8) | 0.35 | 1800×800×1300 |
| KA-15 | 11./15 | 120×3 | 1.51 | 0.8(8) | 0.3 | 1635×700×1220 |
| KA-10 | 10/7.5 | 100×3 | 1 | 0.8(8) | 0.23 | 1554×650×1140 |
| KA-7.5 | 7.5/5.5 | 100×2 | 0.67 | 0.8(8) | 0.18 | 1368×560×1050 |
| KA-5.5 | 5.5/4 | 80×3 | 0.52 | 0.8(8) | 0.18 | 1425×560×1011 |
| KA-4 | 4./3 | 80×2 | 0.4 | 0.8(8) | 0.13 | 1310×500×960 |
| KA-3 | 3/2.2 | 80×2 | 0.3 | 0.8(8) | 0.13 | 1310×500×960 |
| KAH-30 | 30/22 | LP155×2 | 2.5 | 1.25(12.5) | 0.45 | 1900×800×1400 |
| HP120×1 | ||||||
| KAH-25 | 25/18.5 | LP155×2 | 2.2 | 1.25(12.5) | 0.45 | 1800×800×1370 |
| HP120×1 | ||||||
| KAH-20 | 20/15 | LP120×2 | 1.8 | 1.25(12.5) | 0.35 | 1800×800×1370 |
| HP100×1 | ||||||
| KAH-15 | 11./25 | LP155×2 | 1.22 | 1.25(12.5) | 0.3 | 1635×670×1320 |
| HP100×1 | ||||||
| KAH-10 | 10/7.5 | LP100×2 | 0.84 | 1.25(12.5) | 0.23 | 1554×650×1140 |
| HP80×1 | ||||||
| KAH-7.5 | 7.5/5.5 | LP100×2 | 0.65 | 1.25(12.5) | 0.2 | 1490×560×1050 |
| Hp80×1 | ||||||
| KAH-5.5 | 5.5/4 | LP80×2 | 0.45 | 1.25(12.5) | 0.18 | 1425×560×1050 |
| HP65×1 |
