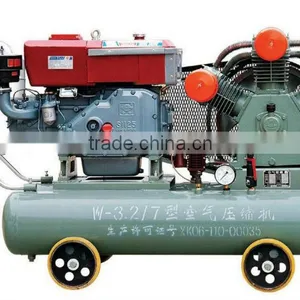

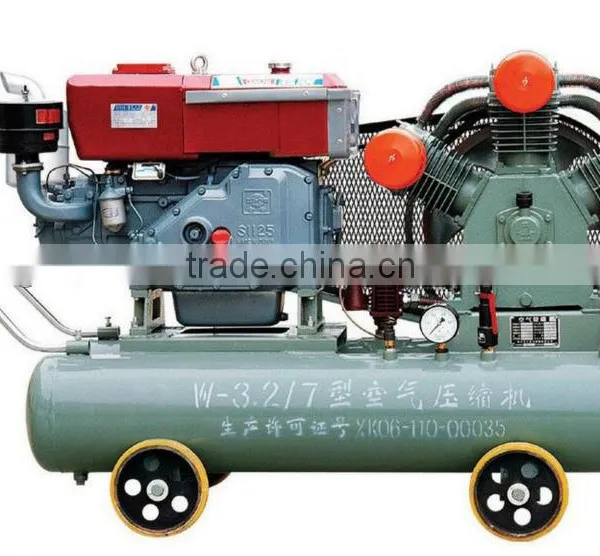

Piston Air Compressor W-3.2/7 Diesel

US$ 1 - 399 MOQ: 1 Set

Key Specifications

Condition:

New

Configuration:

Portable

Power Source:

AC Power

Fuzhou Golden Moral Imp & Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Configuration Portable

Power Source AC Power

Lubrication Style Oil-less

Mute Other, Less noise

Place of Origin Fujian, China

Brand Name GM

Model Number W-3.2/7

Voltage 240V

Certification CE

Warranty one year

After-sales Service Provided Overseas third-party support available

Type Piston

Piston Air compressor W-3.2/7 Diesel

The piston air compressor made of special steel form sweden and after special treatment,high efficient and reliable.

special design for piston ring,Integral casting,excellent flexiblity,lowest lubricating oil consumption.

Cylinder made of boron cast iron,wear resistant,special suitable for dusty condition.

Crankshaft made from ductile cast iron,rare magnesium alloy after heat treatment and surface quenching,excellent performance.

simple structure,light weight,easy to move,easy operating and maintenance.energy saving low cost.

Specification:

Model	W-1.5/4 Diesel	W-1.5/4 Electric	W-1.8/5 Diesel	W-1.8/5 Electric	W-2.8/5 Diesel	W-2.8/5 Electric
Cylinder	3×90mm	3×90mm	3×100mm	3×100mm	3×115mm	3×115mm
Rotary speed	1180rpm	1180rpm	1000rpm	1000rpm	1070rpm	1070rpm
Exhaust Volune	1.5m3/min	1.5m3/min	1.8m3/min	1.8m3/min	2.85m3/min	2.85m3/min
Exhaust pressure	0.4Mpa	0.4Mpa	0.5Mpa	0.5Mpa	0.5Mpa	0.5Mpa
Storage tank	40L	40L	130L	130L	160L	160L
Engine	S195(12HP)	Y160M(11kw)	S1100(15HP)	Y160M1-2(11kw)	S1110(18HP)	Y160M2-2(15kw)
Net weight	305kg	305kg	325kg	325kg	465kg	465kg
Gross weight	340kg	340kg	365kg	365kg	515kg	515kg
Size(L×W×H)	1500×620×1020mm	1500×620×1020mm	1540×640×1030mm	1540×640×1030mm	1710×860×1215mm	1710×860×1215mm
