Home > Industrial Equipment & Components > Compressor > Compressor Unit > GM47L-1 Direct-coupled Portable Mini Air Compressor
GM47L-1 Direct-coupled Portable Mini Air Compressor
US$ 1 - 399
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Configuration:
Portable
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Direct-coupled Portable Small Air Compressor GM47L-2US$ 1 - 399MOQ: 1 Set -
Air Compressor(Direct-coupled) GM47L-3US$ 1 - 399MOQ: 1 Set
-
GM0301 Portable Piston Air Compressor Direct-coupledUS$ 1 - 399MOQ: 1 Set
-
GMW2025 Direct-coupled Portable Air CompressorUS$ 1 - 399MOQ: 1 Set
-
Mute Air Compressor(No Oil) GMW-1002 Mini Air CompressorUS$ 1 - 399MOQ: 1 Set
Condition
New
Type
Other
Configuration
Portable
Power Source
AC Power
Lubrication Style
Oil-less
Mute
Other, Less noise
Place of Origin
Fujian, China
Brand Name
GM
Model Number
GM47L-1
Voltage
220V
Dimension(L*W*H)
60*31*58
Weight
27KG
Certification
CE
Warranty
one year
After-sales Service Provided
Overseas third-party support available

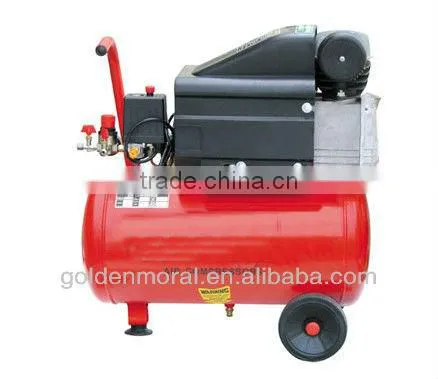

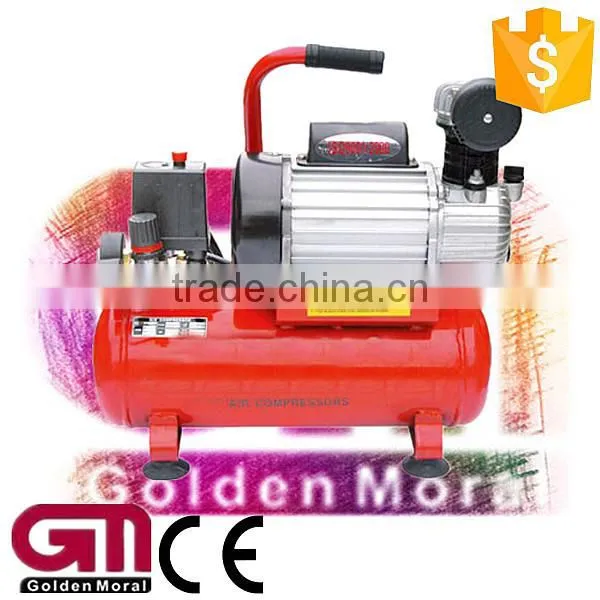

GM47L-1 Direct-coupled portable mini air compressor
1. Aluminum head with cast iron cylinder gives added resistance wear.
2. Suitable for general purpose workshop applications.
3. Pump head directly to heavy duty induction motor for reliable and quite operation.
4. Welded tank complies with latest European Standards.
5. Fitted with fully automatic pressure cut out switch with twin gauges. Displaying tank and working pressure.
6. CE/ ISO approved.
| Model | GM0302 | GM0208-2 | GM0208-3 | GM47L-1 |
| Pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Exhaust volune | 0.20m3/min | 0.10m3/min | 0.10m3/min | 0.12m3/min |
| Motor | 2.2KW/3HP | 0.75KW/1HP | 0.75KW/1HP | 1.5KW/2HP |
| Cylinder | 42mm ×2 | 42mm ×1 | 42mm ×1 | 47mm ×1 |
| Storage tank | 30L | 6L | 6L | 24L |
| Size | 63×42×61cm | 47×21×47cm | 47×21×47cm | 60×31×58cm |
| Weight | 36Kg | 21Kg | 21Kg | 27Kg |
| GM47L-2 | GM47L-3 | GMW0301 | GMW0305 | GMW2025 |
| 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| 0.12m3/min | 0.12m3/min | 0.14m3/min | 0.12m3/min | 0.198m3/min |
| 1.5KW/2HP | 1.5KW/2HP | 1.875KW/2.5HP | 1.5KW/2.5HP | 1.5KW/2HP |
| 47mm ×1 | 47mm ×1 | 41mm *1 | 47mm *1 | 61mm *1 |
| 24L | 24L | 35L | 50L | 25L |
| 60×31×58cm | 60×31×58cm | 70×30×58cm | 80×32×67cm | 60×30×59cm |
| 27Kg | 27Kg | 32Kg | 37Kg | 24Kg |
