Home > Industrial Equipment & Components > Compressor > Compressor Unit > W-1.5/4 Electric Piston Air Compressor
W-1.5/4 Electric Piston Air Compressor
US$ 50 - 100
MOQ: 1 Box
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Piston
Configuration
Portable
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Yes
Place of Origin
Fujian, China
Brand Name
GM
Model Number
W-1.5/4 Electric Piston Air compressor
Voltage
220V/380V/415V(customizable)
Dimension(L*W*H)
1 Unit
Weight
50kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

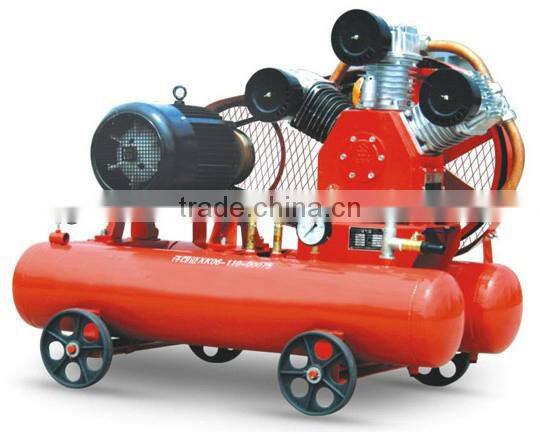

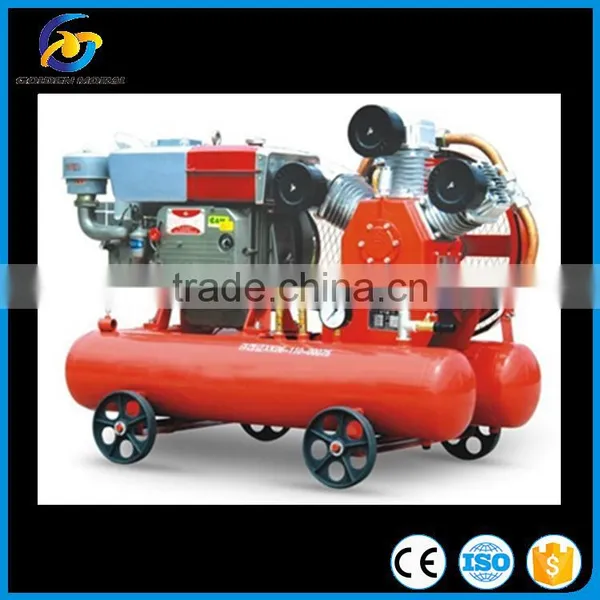

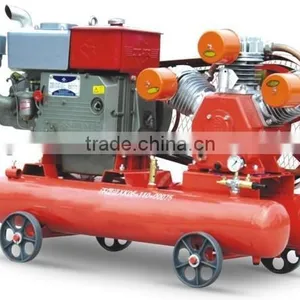

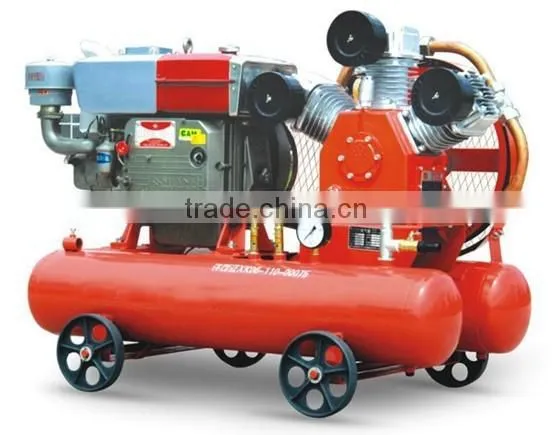

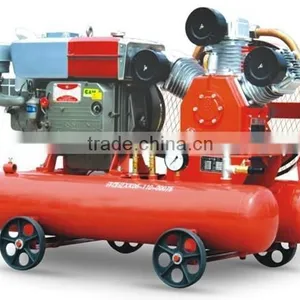

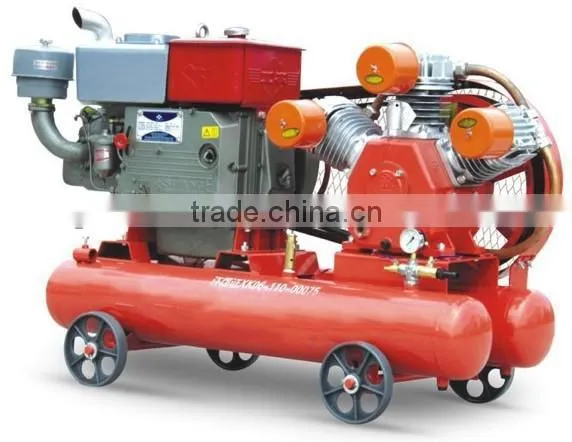

W-1.5/4 Electric Piston Air compressor
The piston air compressor made of special steel form sweden and after special treatment,high efficient and reliable.
special design for piston ring,Integral casting,excellent flexiblity,lowest lubricating oil consumption.
Cylinder made of boron cast iron,wear resistant,special suitable for dusty condition.
Crankshaft made from ductile cast iron,rare magnesium alloy after heat treatment and surface quenching,excellent performance.
simple structure,light weight,easy to move,easy operating and maintenance.energy saving low cost.
Specification:
| Model | W-1.5/4 Diesel | W-1.5/4 Electric | W-1.8/5 Diesel | W-1.8/5 Electric | W-2.8/5 Diesel | W-2.8/5 Electric | W-3.0/5 Diesel | W-3.0/5 Electric | 2V-3.5/5 Diesel | 2V-3.5/5 Electric | W-3.2/7 Diessel | W-3.2/7 Electric |
| Cylinder | 3×90mm | 3×90mm | 3×100mm | 3×100mm | 3×115mm | 3×115mm | 3×120mm | 3×120mm | 4×115mm | 4×115mm | 3×125mm | 3×125mm |
| Rotary speed | 1180rpm | 1180rpm | 1000rpm | 1000rpm | 1070rpm | 1070rpm | 1070rpm | 1070rpm | 970rpm | 970rpm | 1100rpm | 1100rpm |
| Exhaust Volune | 1.5m3/min | 1.5m3/min | 1.8m3/min | 1.8m3/min | 2.85m3/min | 2.85m3/min | 3m3/min | 3m3/min | 3.5m3/min | 3.5m3/min | 3.2m3/min | 3.2m3/min |
| Exhaust pressure | 0.4Mpa | 0.4Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.5Mpa | 0.7Mpa | 0.7Mpa |
| Storage tank | 40L | 40L | 130L | 130L | 160L | 160L | 200L | 200L | 250L | 250L | 230L | 230L |
| Engine | S195(12HP) | Y160M(11kw) | S1100(15HP) | Y160M1-2(11kw) | S1110(18HP) | Y160M2-2(15kw) | S1115(22HP) | Y160M2-2(15kw) | ZS1125(25HP) | Y200L1-6(18kw) | $1125,25HP | 18.5KW |
| Net weight | 305kg | 305kg | 325kg | 325kg | 465kg | 465kg | 530kg | 530kg | 650kg | 650kg | 550kg | 550kg |
| Gross weight | 340kg | 340kg | 365kg | 365kg | 515kg | 515kg | 590kg | 590kg | 720kg | 720kg | 600kg | 600kg |
| Size(L×W×H) | 1500×620×1020mm | 1500×620×1020mm | 1540×640×1030mm | 1540×640×1030mm | 1710×860×1215mm | 1710×860×1215mm | 1710×860×1245mm | 1710×860×1245mm | 1995×950×1200mm | 1995×950×1200mm | 196×90×125mm | 196×90×125mm |
