Home > Products > Air Cooled Diesel Generator > manufacturer portable air cooled big power 6kva diesel generator

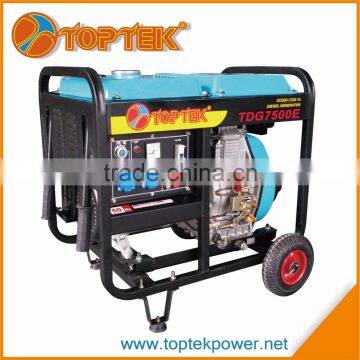

manufacturer portable air cooled big power 6kva diesel generator
- 3000 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | TOPTEK | Model Number: | TDG7500E |
Output Type: | AC Single Phase | Speed: | 3000rpm | Frequency: | 50Hz |
Rated Power: | 6KW | Rated Voltage: | 220V | Rated Current: | 27.3A |
Product Description
manufacturer portable air cooled big power 6kva diesel generator
6kva diesel generator specification:
Model | TDG7500E | ||
Generator | Frequency(Hz) | 50Hz | 60Hz |
Max. AC output(KW) | 6.3KW | 6.5KW | |
Rated AC output(KW) | 6.0KW | 6.3KW | |
DC.Current(A) | 12V/8.3A | ||
Phase. | Single phase | ||
Insulation. | B | ||
Power factor(cosφ) | 1 | ||
Rated AC voltage(V) | 220~240V | ||
Engine | Model. | TD192FE | |
Engine Type. | Air Cooled,4 Stroke,Single Cylinder,Vertical | ||
Max power output(HP) | 14HP | ||
Displacement(cc) | 498cc | ||
Compressing ratio. | 19:1 | ||
Engine speed(rpm) | 3000rpm | 3600rpm | |
Starting system. | Electric. | ||
Lubracation System | Pressure splashed | ||
Fuel tank capacity(L) | 12.5L | ||
Lube oil capacity (L) | 1.65L | ||
Noise level(dB / 7M) | 85dB(A) | ||
Conveyance | N.W./G.W.(kg) | 107/ 120kg | |
Packing Dimension(mm) | 765x525x645 mm | ||
20'L/40'HQ (set) | 99sets/276sets |
6kva diesel generator feature:
1) Using direct injection air-cooled engine 192F, strong power, long life, low fuel comsuption and cost effective;
2) Special and various control panels are available for different market;
3) AVR automatic voltage to maintain stability and ensure a smooth power on the voltage fluctuation sensitive equipment is especially important;
4) Engine oil warning sysem, fuel display tables, etc;
5) standby power for home use, leisure, agriculture and commerce.
6) diesel generator with portable design (with 2 handles and 2 x 9"wheels).
7) single phase output, all prices are from factory direct.
Factory profile
pictures of 6kva diesel generator :
Packing detals: We use standerd export carton case and wooden holder packing, and plywood packing for your selection. if you have any special requirement, please tell us in advance, we will try to meet you.
Shipping port: SHANGHAI port
Payment Terms:
T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment or against electronic B/L.
TOPTEK provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment,all the generators from TOPTEK are CE approved,factory are already passed the ISO9001:2008 quality managment system certification,relying on excellent product quality, thoughtful service, good reputation, creating a brilliant performance.
we only to produce diesel engine, diesel generator, diesel water pump and diesel tiller, because the focus, we are more professional.
In addition, we have a variety of factories working close with us and we are able to provide excellent price and
quality for our customers, also the other similar products as customers' requirement.
TOPTEK products range:
Approved Certification:
FAQ:
1)What’s the time deliver for the 6kva diesel generator?
Re:
15~20working days after receiving payment
2)What's the life span of your product running 8 hrs a day 7 days a week?
Re:
within 500hours, it will be ok, then you need change the outside parts such as air filter(clean the foam element if dirty), muffler, piston and piston ring after 500hours. and you need also check all screws and fasten them once again.
(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)
3)What's the service or insurance that your company offer to the product?
Re:
a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.
b. All the failed units can be removed under the permission of manufacturer.
c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.
4)What differentiate your product from the competition?
Re:
a) We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.
b) our factory is located in yangzhou, jiangsu province, it is a manufacture base of generators, with affluent raw material, low cost , and it is close to SHANGHAI port, with better transportation.
c) good quality alternator are famous in our area ( gaoyou alternator)
d) we have many years of export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, with rich experience in OEM service.
e) many years of manufacture experience, mature installation technology, compact structure of products, perfect performance.
f) large quantity orders(8x40'HQ) in every months that guarantee the competitive prices on materials, and that means the competitive prices on products.
g) we are ISO9001:2008 certificated factory, all products are CE approved.
h) we will wholeheartedly give you the best service anytime, that is the most important
5)What's the service for maintenance I need to do? And when?
Re:
in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.
any more questions pls contact person: Arthur Zhang (phone:+86-18852593763)
wechat ID: 18852593763
