186F small engine efi kit

FOB Price

USD $200 - $201 / Set

10 Sets(Min.Order)

Product Details

Condition:	New	Usage:	Other	Fuel:	Diesel
Stroke:	4 Stroke	Cylinder:	Single Cylinder	Cold Style:	Other, Air-cooled
Start:	Electric Start	Place of Origin:	Chongqing, China	Brand Name:	OEM

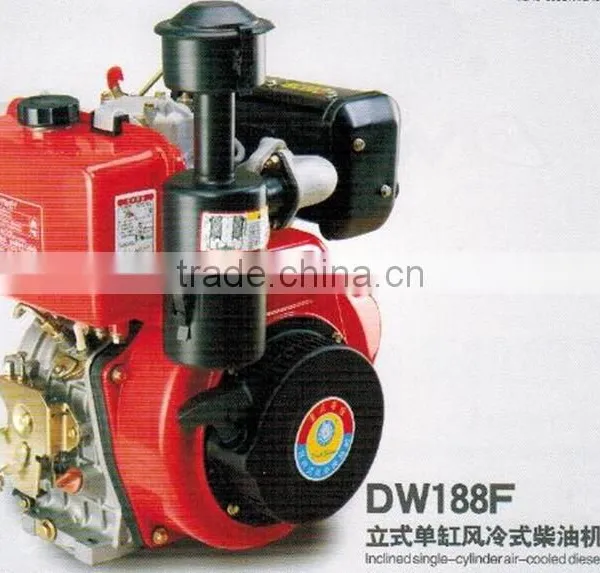

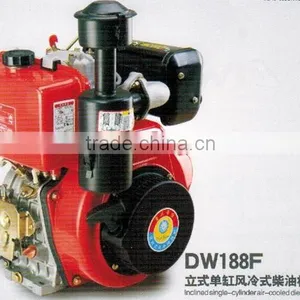

Model Number:	DW188F	Dimension(LWH):	420440495mm	Weight:	48kg
Certification:	ISO9001	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Engine type			Vertical or horizontal, Single cylinder,four stroke,OHV 25°,direction injection, forced air cooling
Clinder bore diameter x stroke			88*75mm
Total piston displacement			0.465
Compression ratio			8.0:1
Rated power,hp/rpm			9HP/3000
Max.power,hp/rpm			10HP/3600
Max.torque,n.m/rpm			21/2500
Fuel consumption rate/rated rotational speed			281.5/3600
Min.stable speed,r/min			≤1300
Starting system			Recoil and hand operated or electric operated
Output shaft rotation direction			see the imput end as counter-clockwise
Output shaft type			Spline shaft/ flat key shaft/ threaded shaft/ taper shaft
Ignition system			CDI
Fuel grade designation			light diesel oil (0# forsummer 10#for winter )
Fuel tank/oil capacity,L			5.5/1.65
Lubricating system			pressure and splash composite type
Lubricating oil model			SAEIOW3O( CC class or CD class)
N.W/kg			≤48kg
Dimension,LWH mm			420440495mm
20FCL Loading quantity/sets			220

FAQ

Q1: What are products your company manufactured?

Diesel/gasoline tiller

Diesel/gasoline engine

Diesel/gasoline generator

Above products range from 3HP-10HP

Q2: What is your MOQ?

Generally we suggest 10sets, but we accept sample order if you want to test quality and performance first.

Q3: What is the payment term?

Prepayment after order confirmed, balance payment before shipment.

You are welcome to pay by T/T, L/C, D/A,D/P, Western Union, etc.

Q4: How about the delivery time?

Within 10 workdays after receive the prepayment

Q5: How about your warranty?

1year

Q6: How about your after-sale service?

1-We have professional engineer team, they will be available for technical support.

2-After-service available for foreign market as customer required.
