Home > Products > Diesel engine series > 4.5kw Diesel engine

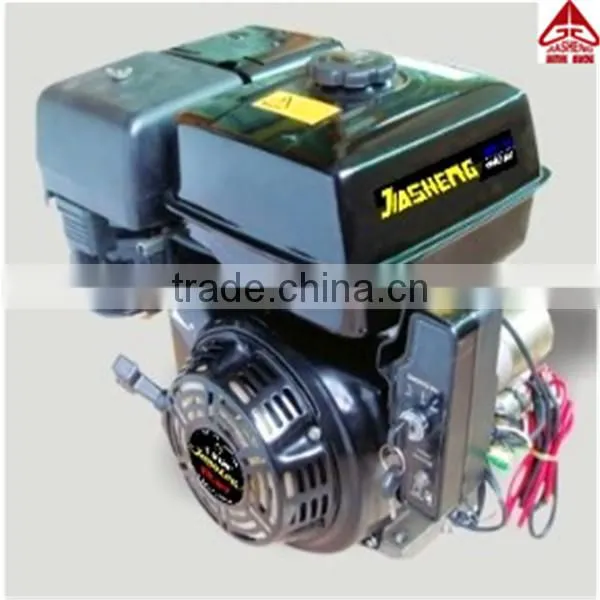

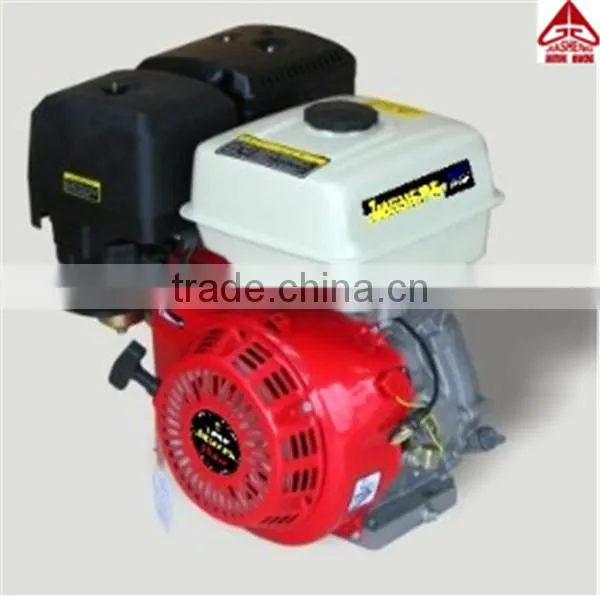

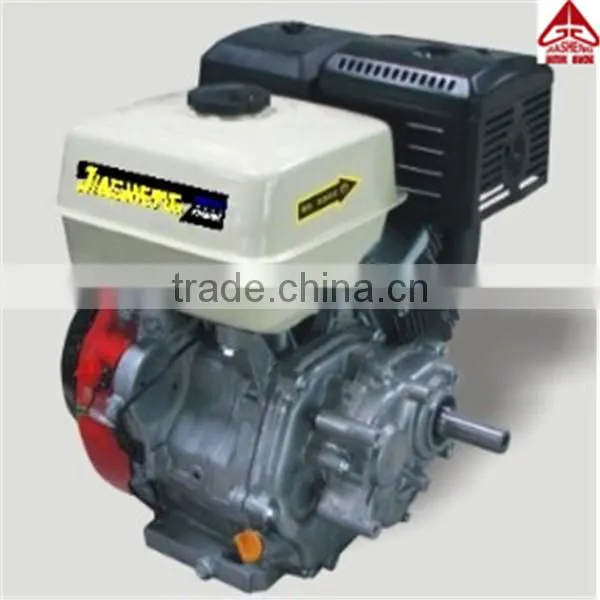

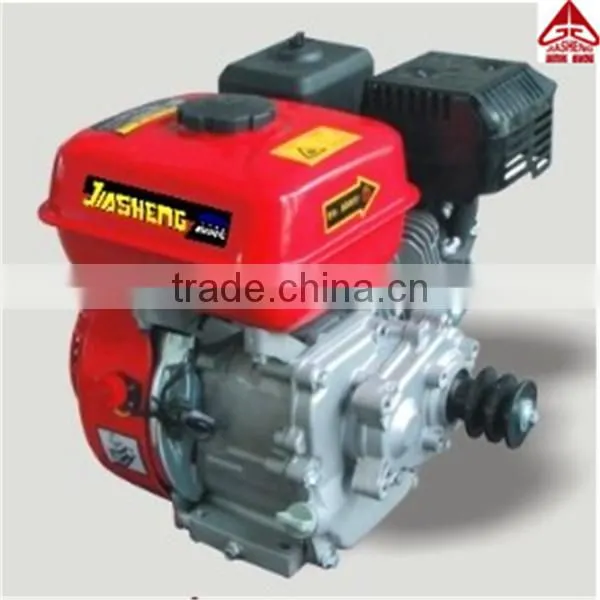

4.5kw Diesel engine
- 50000 Set / Sets per Month
- Chongqing
- T/T
You May Like
Product Details
| Condition | New | Usage | Other | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Other | Place of Origin | Chongqing, China | |
| Brand Name | Jiasheng | Model Number | JS 177F | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Jiasheng diesel engine series
Model | 173F | 177F | 188F | 190F |
Engine type | Single cylinder,four stroke,OHV 25°,forced air cooling | |||
Displacement | 242 | 270 | 389 | 420 |
Bore*stroke,mm*mm | 73*58 | 77*58 | 88*64 | 91*66 |
Compression ratio | 8.0:1 | |||
Max.power,kw/rpm | 4.5/3600 | 5.0/3600 | 7.0/3600 | 7.8/3600 |
Max.torque,n.m/rpm | 14/2500 | 15.2/2500 | 21/2500 | 23.5/2500 |
Fuel consumption,g/kw.h | ≤374 | |||
Min.stable speed,r/min | 1500±150 | |||
Lubricating system | Lubrication by splash | |||
Starting system | Recoil | |||
Ignition system | CDI | |||
Fuel designation | 90# | |||
Fuel tank/oil capacity,L | 6.5/1.1 | |||
N.W/G.W,kg | 25/28 | 31/34 | ||
Dimension,L*W*H mm | 480*450*490 | |||
20FCL Loading quantity, sets | 220 | |||
