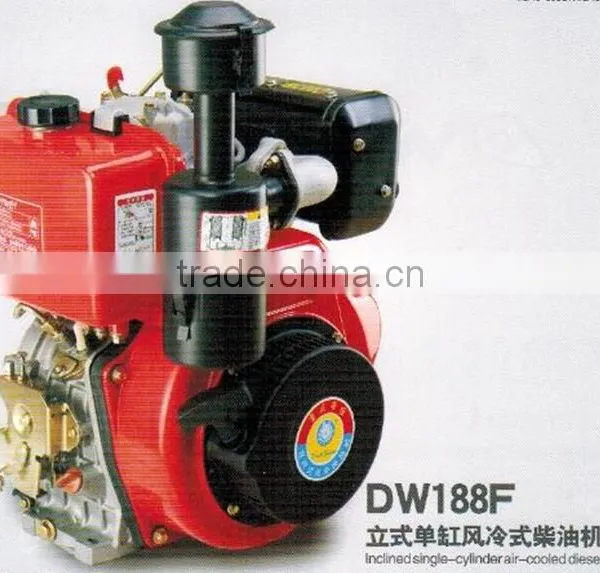

Single Cylinder Air Cooled Disel Engine Cheap Diesel Engine 188F

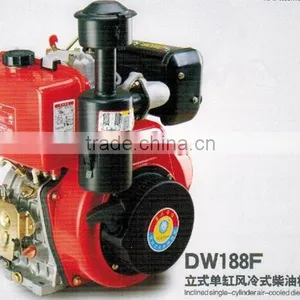

Single Cylinder Air Cooled Disel Engine Cheap Diesel Engine 188F thumbnail-1
Single Cylinder Air Cooled Disel Engine Cheap Diesel Engine 188F thumbnail-2
Single Cylinder Air Cooled Disel Engine Cheap Diesel Engine 188F photo-1
Single Cylinder Air Cooled Disel Engine Cheap Diesel Engine 188F photo-2
US$ 200 - 201 MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Jianchi Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Chongqing, China
Brand Name OEM
Model Number DW188F
Dimension(L*W*H) 420*440*495mm
Weight 48kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Engine type Vertical or horizontal, Single cylinder,four stroke,OHV 25°,direction injection, forced air cooling
Clinder bore diameter x stroke 88*75mm
 Total piston displacement 0.465
Compression ratio 8.0:1
Rated power,hp/rpm 9HP/3000
Max.power,hp/rpm 10HP/3600
Max.torque,n.m/rpm 21/2500
Fuel consumption rate/rated rotational speed 281.5/3600
Min.stable speed,r/min ≤1300
Starting system Recoil and hand operated or electric operated
Output shaft rotation direction see the imput end as counter-clockwise
Output shaft type Spline shaft/ flat key shaft/ threaded shaft/ taper shaft
Ignition system CDI
Fuel grade designation light diesel oil (0# forsummer         10#for winter )
Fuel tank/oil capacity,L 5.5/1.65
Lubricating system pressure  and splash composite type
Lubricating oil model SAEIOW3O( CC class or CD class)
N.W/kg ≤48kg
Dimension,L*W*H mm 420*440*495mm
20FCL Loading quantity/sets 220



FAQ



Q1: What are products your company manufactured?

    Diesel/gasoline tiller

   Diesel/gasoline engine

   Diesel/gasoline generator

   Above products range from 3HP-10HP

Q2: What is your MOQ?

   Generally we suggest 10sets, but we accept sample order if you want to test quality and performance first.

Q3: What is the payment term?

   Prepayment after order confirmed, balance payment before shipment.

   You are welcome to pay by T/T, L/C, D/A,D/P, Western Union, etc.

Q4: How about the delivery time?

   Within 10 workdays after receive the prepayment

Q5: How about your warranty?

   1year

Q6: How about your after-sale service?

     1-We have professional engineer team, they will be available for technical support.

    2-After-service available for foreign market as customer required.
