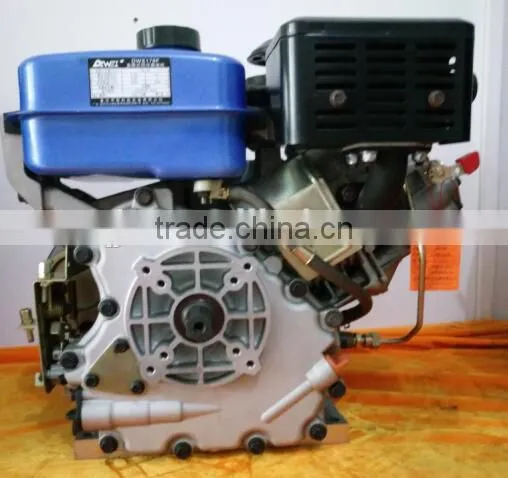

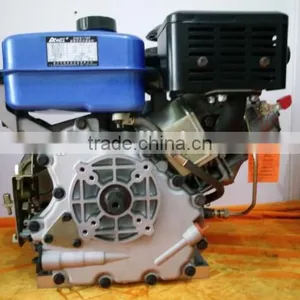

air cooled disel engine DW178F

FOB Price

USD $175 - $176 / Set

10 Sets(Min.Order)

Product Details

Condition:	New	Usage:	Other	Fuel:	Diesel
Stroke:	4 Stroke	Cylinder:	Single Cylinder	Cold Style:	Other, Air-cooled
Start:	Kick Start	Place of Origin:	Chongqing, China	Brand Name:	OEM
Model Number:	DW178F	Dimension(LWH):	385420450mm	Weight:	30kg
Certification:	ISO9001	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

model:	DWX178F
Engine type:	Single cylinder,four stroke,OHV 25°,forced air cooling
Displacement:	0.296L
Borestroke,mmmm:	78*62
Compression ratio:	8.0:1
Rated power,kw/rpm:	3.7/3000
Max.power,kw/rpm:	4.5/3600
Minimum idling stablized speed r/min:	≤1300
Max.torque,n.m/rpm:	15.2/2500
Fuel consumption,g(kw.h )/ r/min:	285.5/3600
Min.stable speed,r/min:	1500±150
Lubricating system:	Pressure and splash composite type
Starting system:	Recoil and hand-operated or electrice-operated
Ignition system:	CDI
Fuel designation:	light diesel oil (0# forsummer 10#for winter )
Fuel tank/oil capacity,L:	3.5/1.1
N.W/G.W,kg:	≤33kg
Dimension,LWH mm:	385420450
20FCL Loading quantity, sets:	220
Output shaft type:	spline shaft / flat key shaft / threaded shaft / taper shaft
Output shaft rotation direction:	see the input end as counter-clockwise

FAQ

Q1: What are products your company manufactured?

Diesel/gasoline tiller

Diesel/gasoline engine

Diesel/gasoline generator

Above products range from 3HP-10HP

Q2: What is your MOQ?

Generally we suggest 10sets, but we accept sample order if you want to test quality and performance first.

Q3: What is the payment term?

Prepayment after order confirmed, balance payment before shipment.

You are welcome to pay by T/T, L/C, D/A,D/P, Western Union, etc.

Q4: How about the delivery time?

Within 10 workdays after receive the prepayment

Q5: How about your warranty?

1year

Q6: How about your after-sale service?

1-We have professional engineer team, they will be available for technical support.

2-After-service available for foreign market as customer required.
