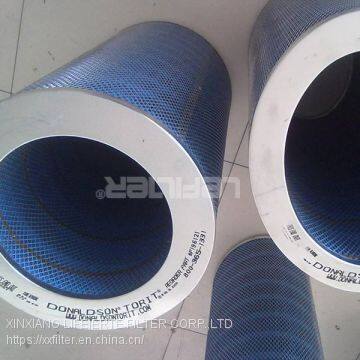

Help CenterP191920-016-436 Fire Resistance Dust-Fume Dust Collector Filter Cartridge
Related Products
-
Polyester Pleated Shot Blasting Dust Filter Cartridge 325*325*1000US$ 1 - 25MOQ: 1 Piece -
Donaldson Wood Pulp Fiber Dust Filter Cartridge P191280 P191281US$ 1 - 25MOQ: 1 Piece
-
Industrial Flame Retardant Dust Collector Air Filter Cartridge P191889US$ 1 - 25MOQ: 1 Piece
-
Industrial Manufacture Dust Cylindrical Turbine Inlet Air Filter P199474US$ 15 - 85MOQ: 16 Pieces
-
Metal Polishing and Bead Blasting Cylindrical Dust Air Filter Cartridge P030627US$ 15 - 85MOQ: 16 Pieces
Fire Retardant Dust-Fume Dust Collector Filter Cartridge
Features of dust collector air filter cartridges:
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
Common Specifications
| Model | Outside diameter of the upper-lid | Inside diameter of the upper-lid | Outside diameter of the bottom lid | Diameter of the installation holes | Height | ||
| LFK 3266 | Φ324 | Φ213 | Φ324 | Φ14 | 660 | ||
| LFK 3275 | Φ324 | Φ213 | Φ324 | Φ14 | 750 | ||
| LFK 32100 | Φ324 | Φ213 | Φ324 | Φ14 | 1000 | ||
| LFK 3566 | Φ352 | Φ241 | Φ352 | Φ16 | 660 | ||
| LFK 3575 | Φ352 | Φ241 | Φ352 | Φ16 | 750 | ||
| LFK 35100 | Φ352 | Φ241 | Φ352 | Φ16 | 1000 | ||
The large flow filter has a 6 inch./152mm large diameter, and is coreless, single open-ended with an inside to outside flow pattern.
The large flow filter diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required.The long service life and high flow rate result in low investment and less manpower in many applications.
Our products through the following test:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Material Compatibility with Fluids
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
