RS8140 RS8160 RS8180 RS8200 Road Roller RS8140 for Export

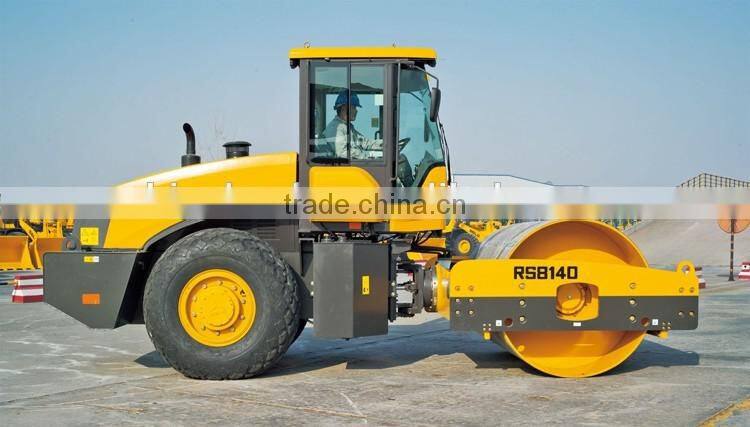

RS8140 RS8160 RS8180 RS8200 Road Roller RS8140 for Export photo-1
US$ 30,000 - 40,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Static Linear Pressure:
322N/cm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Single Drum Roller
Static Linear Pressure 322N/cm
Travel Speed 0~9.2km/h
Grade Ability 30%
Place of Origin Shandong, China
Brand Name RS8140
Model Number RS8140
Power(W) 92kw
Dimension(L*W*H) 6113*2300*3140mm
Weight 14000kg
Certification CE/ISO9001
After-sales Service Provided Overseas service center available
14 ton road roller RS8140
Product Description






RS8140 RS8160 RS8180 RS8200 road roller RS8140 for export



ItemSpecifications
Overall dimension
L×W×H6113×2300×3140mm
Width of vibrating wheel2130mm
Diameter of vibrating wheel1500mm
Wheel tread1535mm
Wheelbase3303mm
Min.ground clearance350mm
Min.turning radius6400mm
Compacting width2130mm
Theoretical gradeability30%
Steering angle35°
Swing angle12°
Overall parameter
Overall working weight14000kg
Weight distribution of front wheel7000kg
Weight distribution of rear wheel7000kg
Nominal amplitude (high/low)1.8/1.0mm
Vibration  frequency (low/high)30Hz
Exciting force (high/low)261/145kN
Static linear load322N/cm
Engine
ModelWP6G125E22
TypeInline, water-cooled, direct injection
Rated power/speed92kw/2000r/min
Engine displacement6.75L
Cylinder bore/stroke105/130mm
Emission standardGB2089-2007
Max.torque540Nm
Min.fuel-consume ratio≤220g/kW.h
Transmission system
Clutch typeDry single disc clutch
Transmission typeFixed shaft mechanical shifting
GearsThree forward two reverse
Speed at forward/reverse gear I0~2.4km/h
Speed at forward/reverse gear II0~4.1km/h
Speed at forward gear III0~9.2km/h
Brake system
Service brake typeAir over hydraulic disc brake
Parking brake typeManual caliper disc type
Steering system
TypeFull hydraulic steering
System pressure 16MPa
Vibration system
TypeOpen system
System pressure 20MPa
Full capacity
Fuel270L
Hydraulic oil100L
Engine16L
Transmission13L
Drive axle16L+2x5L
Brake system2L






Product Picture



Hot sale road roller



RS8140 RS8160 RS8180 RS8200 road roller RS8140 for export













Packing & Delivery



Packing: disassembled in container or based on Customer's demands

Shipping: by container or by ro-ro.







Shipment

Warranty



About after-sale service:



*We supply 1200 working hours or 12 months warranty since the bill of lading date, whichever comes first.
