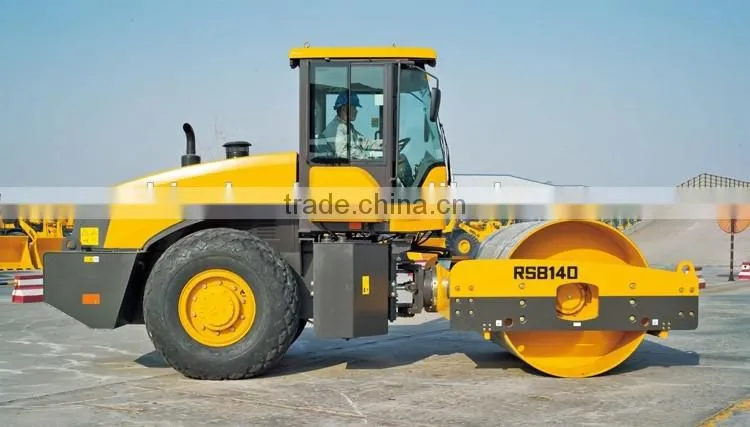

Help Center2017 New Road Roller RS8140 for Export
Related Products
-
Professional Supplier of Road Roller Road Roller RS8140 With A/CUS$ 30,000 - 40,000MOQ: 1 Unit -
Chinese Famous Brand Road Roller 14 Ton Road Roller Hot SaleUS$ 30,000 - 40,000MOQ: 1 Unit
-
Good Quality Road Roller RS8140 Road Roller for ExportUS$ 30,000 - 40,000MOQ: 1 Unit
-
Road Roller RS8140 With A/CUS$ 30,000 - 40,000MOQ: 1 Unit
-
Mechanical Road Roller 14 Ton Road Roller for ExportUS$ 30,000 - 40,000MOQ: 1 Unit
| Item | Specifications |
| Overall dimension | |
| L×W×H | 6113×2300×3140mm |
| Width of vibrating wheel | 2130mm |
| Diameter of vibrating wheel | 1500mm |
| Wheel tread | 1535mm |
| Wheelbase | 3303mm |
| Min.ground clearance | 350mm |
| Min.turning radius | 6400mm |
| Compacting width | 2130mm |
| Theoretical gradeability | 30% |
| Steering angle | 35° |
| Swing angle | 12° |
| Overall parameter | |
| Overall working weight | 14000kg |
| Weight distribution of front wheel | 7000kg |
| Weight distribution of rear wheel | 7000kg |
| Nominal amplitude (high/low) | 1.8/1.0mm |
| Vibration frequency (low/high) | 30Hz |
| Exciting force (high/low) | 261/145kN |
| Static linear load | 322N/cm |
| Engine | |
| Model | WP6G125E22 |
| Type | Inline, water-cooled, direct injection |
| Rated power/speed | 92kw/2000r/min |
| Engine displacement | 6.75L |
| Cylinder bore/stroke | 105/130mm |
| Emission standard | GB2089-2007 |
| Max.torque | 540Nm |
| Min.fuel-consume ratio | ≤220g/kW.h |
| Transmission system | |
| Clutch type | Dry single disc clutch |
| Transmission type | Fixed shaft mechanical shifting |
| Gears | Three forward two reverse |
| Speed at forward/reverse gear I | 0~2.4km/h |
| Speed at forward/reverse gear II | 0~4.1km/h |
| Speed at forward gear III | 0~9.2km/h |
| Brake system | |
| Service brake type | Air over hydraulic disc brake |
| Parking brake type | Manual caliper disc type |
| Steering system | |
| Type | Full hydraulic steering |
| System pressure | 16MPa |
| Vibration system | |
| Type | Open system |
| System pressure | 20MPa |
| Full capacity | |
| Fuel | 270L |
| Hydraulic oil | 100L |
| Engine | 16L |
| Transmission | 13L |
| Drive axle | 16L+2x5L |
| Brake system | 2L |
Hot sale road roller
Packing: disassembled in container or based on Customer's demands
Shipping: by container or by ro-ro.
About after-sale service:
*We supply 1200 working hours or 12 months warranty since the bill of lading date, whichever comes first.
