G9220 China brand wholesale Motor Grader G9220 Motor grader good quality good price
| G9220 is a product of high speed, high efficiency, high accuracy and multiple purposes developed on the basis of advanced technology of VOLVO, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on. | |
| 1. Electrically-controlled variable power DEUTTZ engine is used and has three power curves in perfect matching with Advance transmission case, which makes it available to select applicable power mode based on load to realize an optimum performance and fuel efficiency and high efficiency and energy saving function. | |
| 2. It is equipped with dual-cylinder driven tray-type working device of advanced VOLVO technology and domestic industrial originated dual rotatory cylinder and rotatory valve structure which is of large drive power and can rotate with load. | |
| 3. FOPS/ROPS cab is safe and reliable and of good sealing performance; It has wide visual field and is conductive to observe the condition of two ends of shovel nose tool in turning, crabbing and leveling rim angle, with high operational accuracy. | |
| 4. Swing frame is made of lubrication-free and maintenance-free composite bearing, with small frictional coefficient, high reliability and is shock-proof and wear-proof; Hydraulic lock cylinder location is adopted and is easy to operate. | |
| 5. Electrical system of the entire machine has centralized control, three-stage alarm electronic monitoring system, digitalized stepping instrument display, high man-machine interaction and is convenient for detection and maintenance; |
Specification | Motor Grader G9220 |
Operationg Mass | 16500kg |
Engine | Deutz engine BF6M1013ECP, |
Engine Power | 220HP |
Overall Dimension | 8975*2710*3240mm |
Overall Length(without front blade and rear ripper) | 8975mm |
Max forward speed | 39km/h |
Max backward speed | 25.5km/h |
Speed gear number | six forward, three backward |
Max.traction force | 87Kn |
Hydraulic system pressure | 21Mpa |
Balde L*H*T | 4267*635*25mm |
Frong wheel track | 2260mm |
Rear wheel track | 1538mm |
Wheelbase | 6480mm |
Maximun blade lift above groud | 445mm |
Maximun depth of cutting | 787mm |
Blade cutting angle | forward 47o,backward 5o |
Fule tank volume | 270L |
Hydraulic oil tank volume | 132L |
Transmission | 6WG200 Transmission |
Axle | Meritor Axle |
Cab | FOPS/ROPS Cabin |
Front Dozer | Yes |
Rear Ripper | Yes |
220HP Motor Grader SDLG G9220,Deutz BF6M1013ECP Engine,6WG200 Transmission, Meritor Axle | |
G9220 Photos

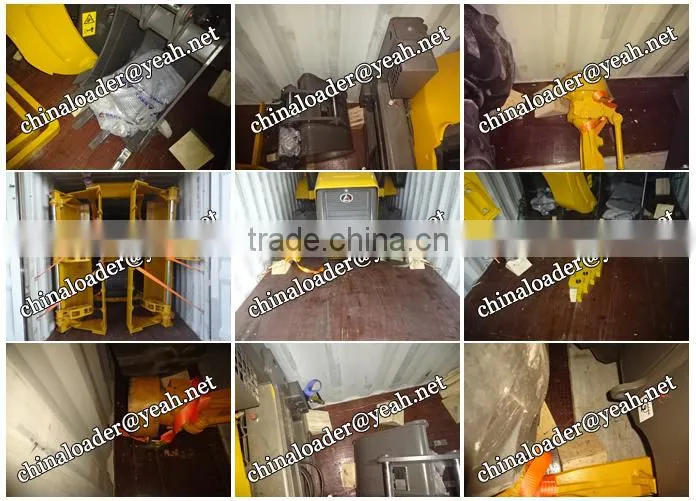

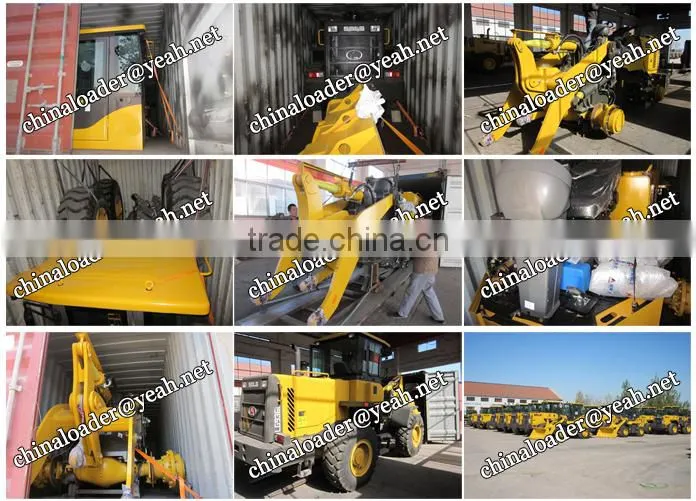

Packing: disassembled in container or based on Customer's demands

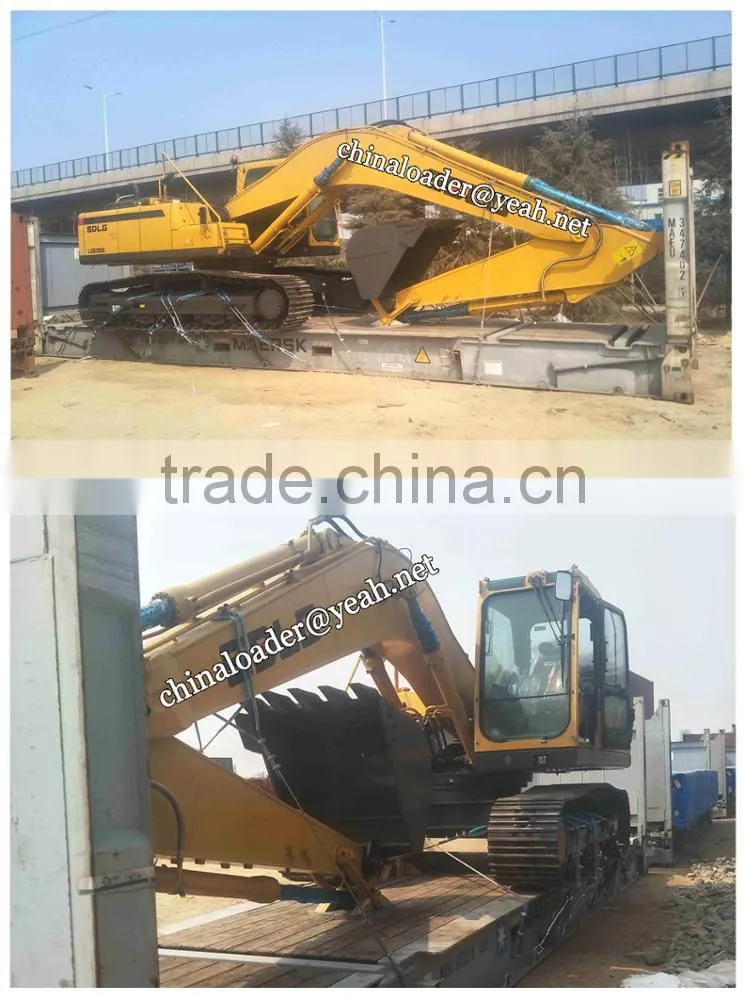

Shipping: by ship or by train or by truck
