Axial Flow Turbine Low Water Head Large Discharge Power Plant Kaplan Turbine Diagram

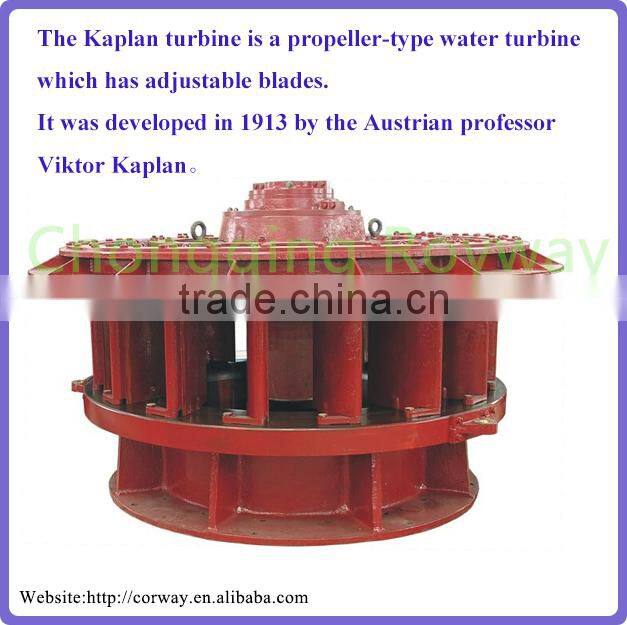

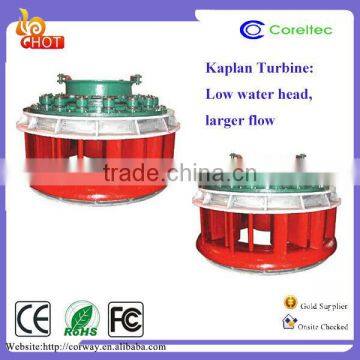

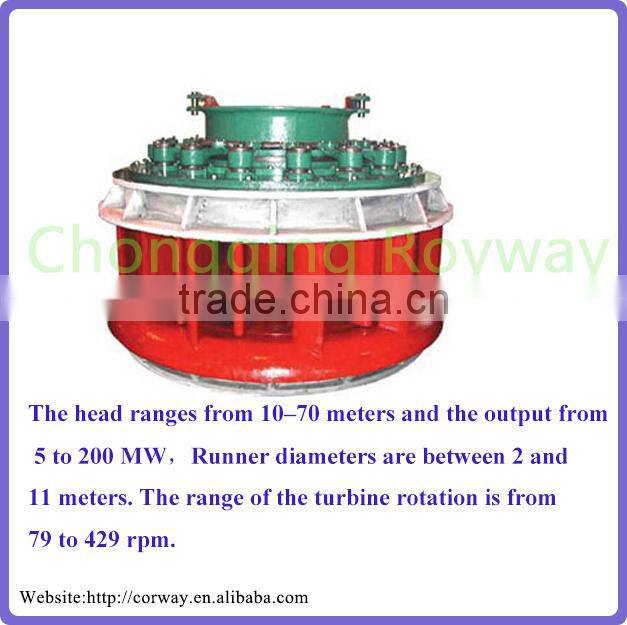

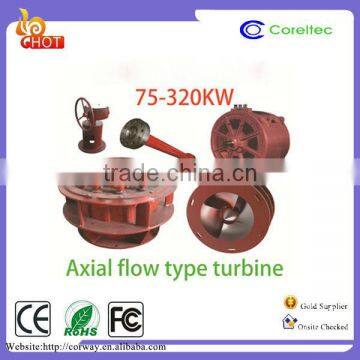

1. Description of Kaplan Turbine
Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big

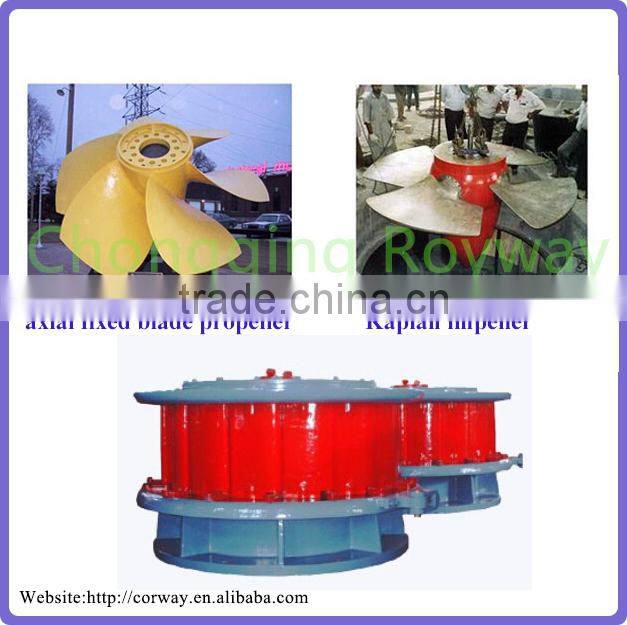

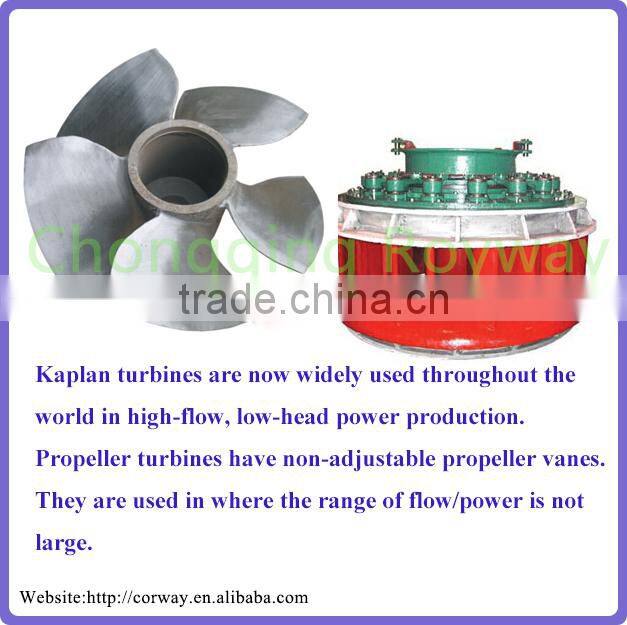

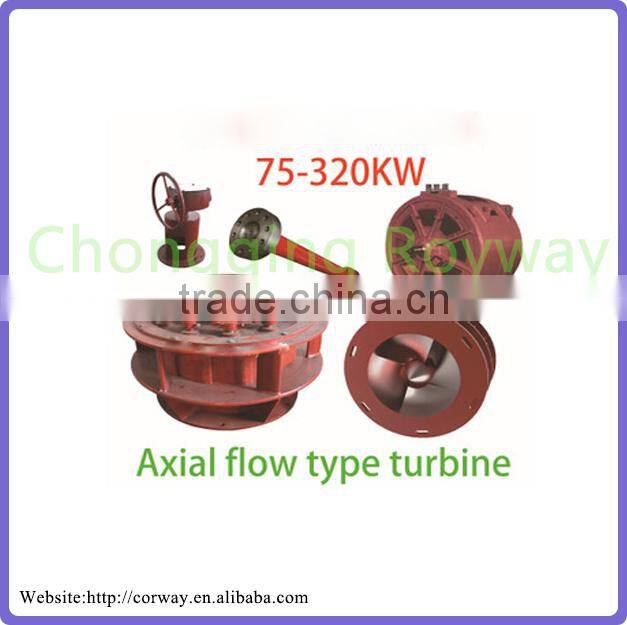

flow, normally divided into fixed blades and adjustable blades turbine. Main components

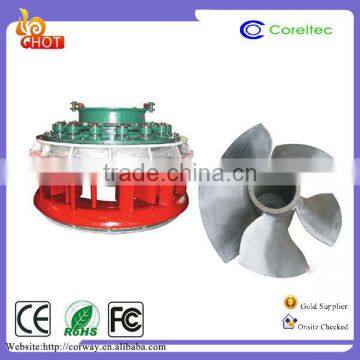

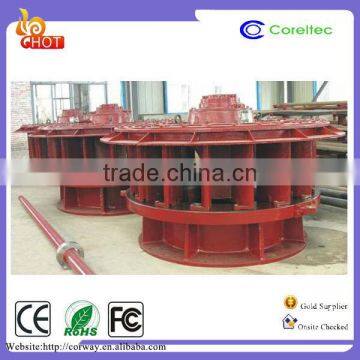

including: runner, draft cone, water chamber, guide vane, bearing, and main shaft.
The spiral case could be steel or concrete. The runner diameter we can manufacture is
from 80cm to 4meters, with rated output 50Kw to 20Mw.

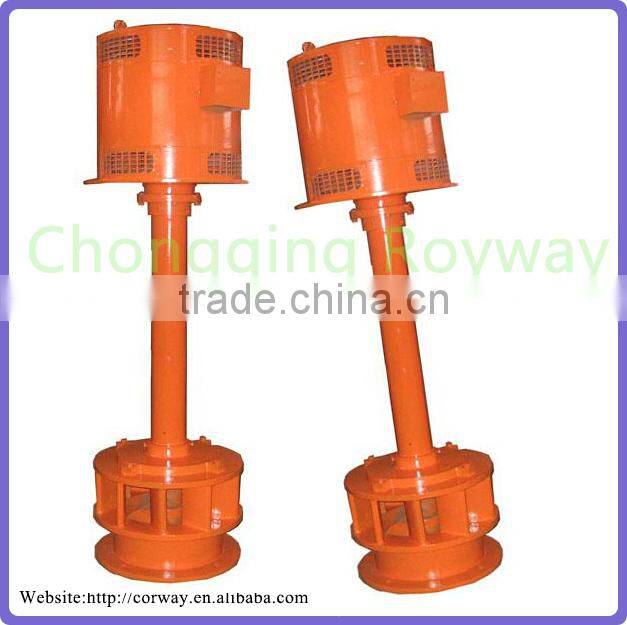

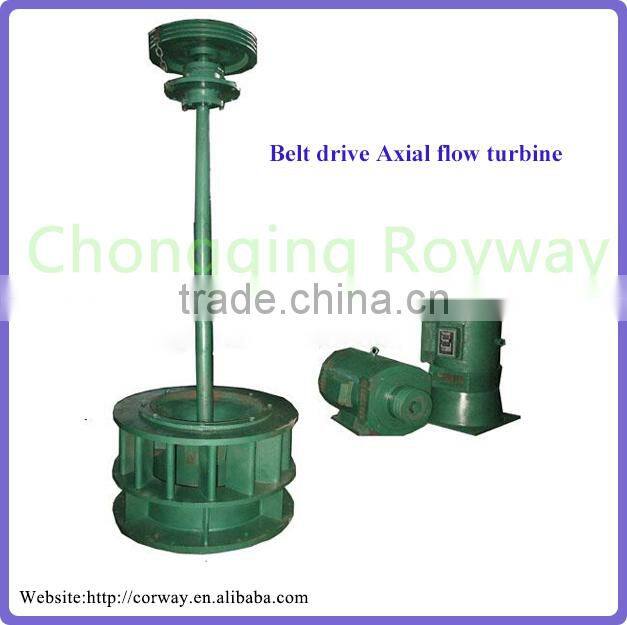

Turbine units normally be vertical shaft arrangement. Generator equipped with same or
different shaft, with Anyway, they will share the same rotating speed. If specially required,
a speed increase gear could be equipped between turbine and generator in order to smaller
the generator size.
1,Suitable water head : 3-45m
2, Output scope : 100Kw -30Mw
3, Runner diameter : 80cm -400cm
4,Runner material : stainless steel
5, Arrangement type : Vertical
2.Technical Parameter of Kaplan Turbine
| Model |
Design water head (m) |
Flow rate (m³/s) |
Output power (KW) |
Speed (r/min) |
Generator model |
Rated power (KW) |
Power factor |
Rated voltage (V) |
runaway speed (r/min) |
Excitaion unit(silicon control) |
| ZD760-LH-180 | 6.5 | 18.58 | 972 | 214 | SF800-28/2150 | 800 | 0.8 | 400 | 450 | SCR |
| =+5° | 11.7 | 8.85 | 890 | 371 | SF800-16/1730 | 800 | 0.8 | 6300 | 800 | SCR |
| =+0° | 11.1 | 9.126 | 889 | 281 | SF800-20/2150 | 800 | 0.8 | 6300 | 600 | SCR |
| 9.7 | 10.524 | 886 | 296 | SF800-20/2150 | 800 | 0.8 | 6300 | 600 | SCR | |
| 8.9 | 12.22 | 887 | 280 | SF800-20/2150 | 800 | 0.8 | 6300 | 600 | SCR | |
| 7.9 | 13.329 | 885 | 264 | SF800-24/2150 | 800 | 0.8 | 6300 | 500 | SCR | |
| 9.5 | 10.685 | 891 | 231 | SF800-24/2150 | 800 | 0.8 | 6300 | 500 | SCR | |
| =+5° | 8.3 | 12.321 | 886 | 243 | SF800-24/2150 | 800 | 0.8 | 6300 | 500 | SCR |
| ZD560-LH-180 | 7.7 | 14.385 | 902 | 231 | SF800-24/2150 | 800 | 0.8 | 6300 | 500 | SCR |
| =+15° | 6.8 | 15.546 | 890 | 217 | SF800-28/2600 | 800 | 0.8 | 6300 | 450 | SCR |
| ZD560-LH-200 | 8.2 | 12.256 | 884 | 193 | SF800-28/2600 | 800 | 0.8 | 6300 | 450 | SCR |
| =+5° | 7.3 | 14.266 | 894 | 205 | SF800-32/2600 | 800 | 0.8 | 6300 | 428 | SCR |
| =+15° | 6.4 | 16.191 | 890 | 190 | SF2500-20/2160 | 800 | 0.8 | 6300 | 500 | SCR |
3. How to inquire our product?
1) please send us the detailed parameters of the HPP
A Water head----- m
B Flow------ m³/s
C Installed capacity--- KW
D Frequency---- 50HZ or 60HZ
E Generator excitation-- static SCR excitation or brushless excitation
Those parameters will decide which type of turbine and generator best satisfy your water condition.
2)Tell us your requirements of the water turbine generator unit.
A Does special material required for the equipments?
B Does the unit controlled manually or by computer?
C What should be quoted in the proposal?
D Mechanical and Electrical part? Swithyard?
