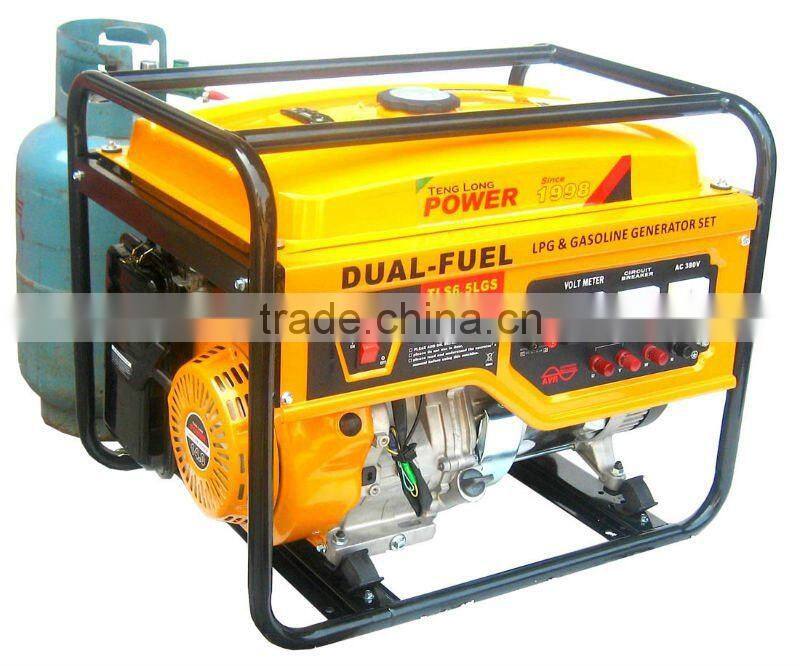

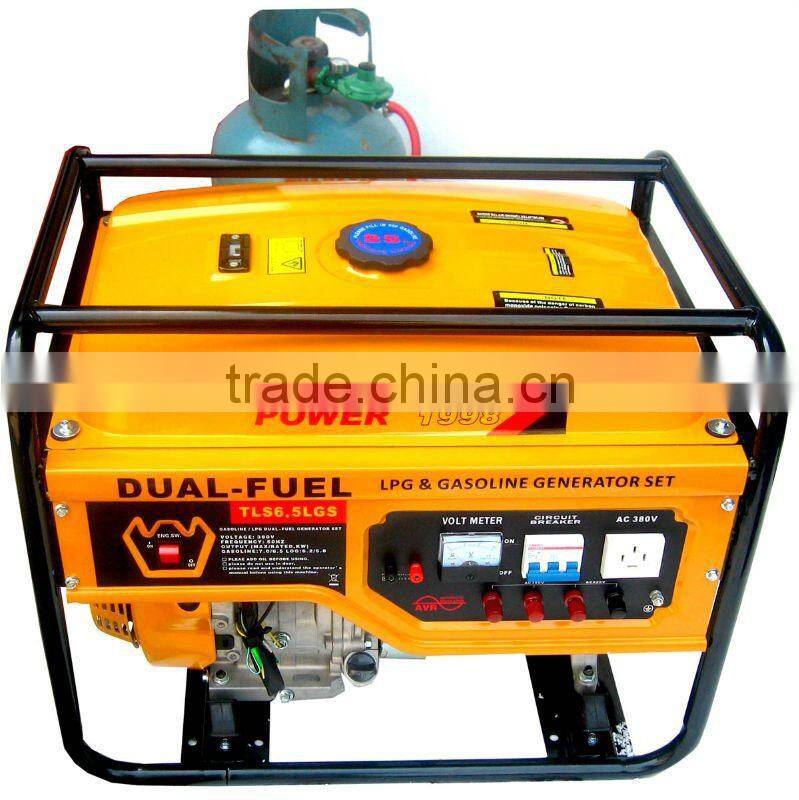

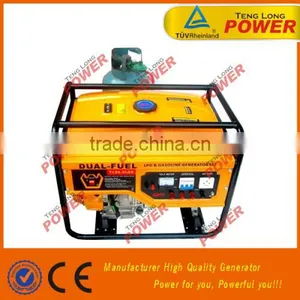

HOUSE USE LPG Generator, 6.5KW, Dual Fuel, 3 Phase
HOUSE USE LPG Generator, 6.5KW, Dual Fuel, 3 Phase
1. Product Spec.
| MODEL | TL6.5GFS(D) (6.5KW) | ||||
| FREQUENCY (Hz) | 60 | ||||
| MAX/RATED OUTPUT(KW) | 7.0/6.5 | ||||
| RATED VOLTAGE(V) | 400 | ||||
| POWER FACTOR | 0.8 | ||||
| PHASE | 3 PHASE | ||||
| VOLTAGE REGULATOR | AVR | ||||
| ENGINE | TL190F/P(15HP) | ||||
| PACKING (LxWxH) (mm) | 700x535x575 | ||||
| N.W.(Kg) | 80(84) | ||||
| STARTING SYSTEM | RECOIL/ELECTRIC | ||||
| FUEL CAPACITY (L) | 25 | ||||
| RUNNING HOURS (H) | 8 | ||||
| ALTERNATOR TYPE | BRUSH | ||||
| OIL ALERT | INSTALLED | ||||
| BATTERY | OPTIONAL 9AH | ||||
| DC OUTPUT 12V 8.3A | OPTIONAL | ||||
| FUEL TYPE | GASOLINE/LPG | ||||
| ALTERNATOR MATERIAL | 100% Copper |
Advantages:

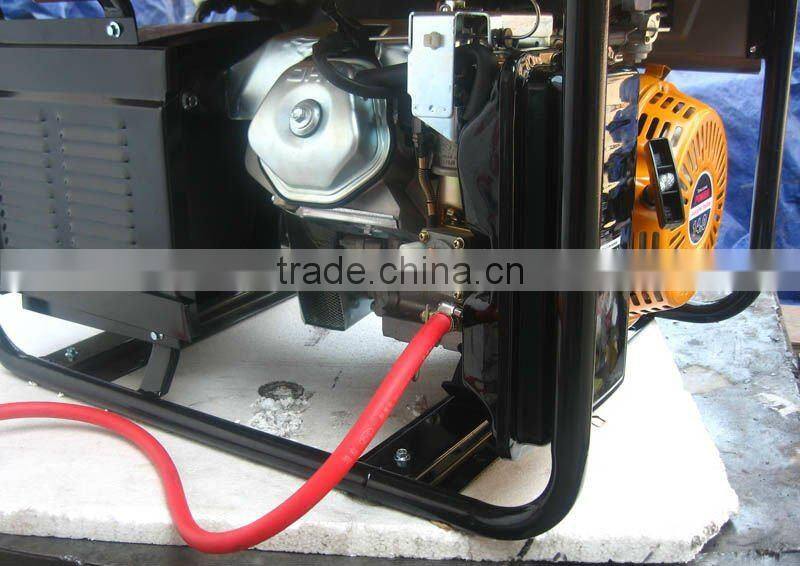

This generator can use gasoline and LPG. We developed a carburator that the LPG and Gasoline can use both of them well. During its running, we can switch the mode between the LPG and Gasoline without stopping the generator.
Save Money
We tested the fuel comsumption of gasoline and LPG, LPG is only 1/2 of the gasoline.
Green
In the other hand, for the combustion rate of LPG, it can reduce less CO and CO2.
More Models Chose:
| MODEL | TL5.0GF(D) (5.0KW) | TL5.0GFS(D) (5.0KW) | TL6.5GF(D) (6.5KW) | TL6.5GFS(D) (6.5KW) | ||||||||||
| FREQUENCY (Hz) | 50/60 | 60 | 50/60 | 60 | ||||||||||
| MAX/RATED OUTPUT(KW) | 5.5/5.0 | 5.5/5.0 | 7.0/6.5 | 7.0/6.5 | ||||||||||
| RATED VOLTAGE(V) | 110/230 | 400 | 110/230 | 400 | ||||||||||
| POWER FACTOR | 1 | 0.8 | 1 | 0.8 | ||||||||||
| PHASE | 1 PHASE | 3 PHASE | 1 PHASE | 3 PHASE | ||||||||||
| VOLTAGE REGULATOR | AVR | AVR | AVR | AVR | ||||||||||
| ENGINE | TL190F/P(15HP) | TL190F/P(15HP) | TL190F/P(15HP) | TL190F/P(15HP) | ||||||||||
| PACKING (LxWxH) (mm) | 700x535x575 | 700x535x575 | 700x535x575 | 700x535x575 | ||||||||||
| N.W.(Kg) | 79(82) | 79(82) | 80(83.5) | 80(84) | ||||||||||
| STARTING SYSTEM | RECOIL/ELECTRIC | RECOIL/ELECTRIC | RECOIL/ELECTRIC | RECOIL/ELECTRIC | ||||||||||
| FUEL CAPACITY (L) | 25 | 25 | 25 | 25 | ||||||||||
| RUNNING HOURS (H) | 9 | 9 | 8 | 8 | ||||||||||
| ALTERNATOR TYPE | BRUSH | BRUSH | BRUSH | BRUSH | ||||||||||
| OIL ALERT | INSTALLED | INSTALLED | INSTALLED | INSTALLED | ||||||||||
| BATTERY | OPTIONAL 9AH | OPTIONAL 9AH | OPTIONAL 9AH | OPTIONAL 9AH | ||||||||||
| DC OUTPUT 12V 8.3A | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | ||||||||||
| FUEL TYPE | GASOLINE/Kerosene/LPG | GASOLINE/Kerosene/LPG | GASOLINE/LPG | GASOLINE/LPG | ||||||||||
| ALTERNATOR MATERIAL | 100% Copper | 100% Copper | 100% Copper | 100% Copper |
Switch between LPG and gasoline any time during operation.
Flow Chart:
2. Company Information.
Chongqing Tenglong Shines Electro-Mechanics Co., ltd. which was established in 1998. A professional, leading positioned the first manufacturer of gasoline engine, generator, water pump, tiller and other agricultural machineries in Chongqing, China. With more than 14 years manufacturing experience in general power industry, rigorous quality control, totally 8 procedures to ensure the quality. Outstanding technical talents and advanced technology win us a good reputation in whole China.
Powerful Engine: single cylinder 4 stroke from 2.5HP to 16HP. Recoil or key start. - 30°low temperature operation, reduce engine
Energetic generator: Single/Dual fuel powered, 100% cooper high quality electricity generated with THD less than 1.5%
Effective water pump: Self priming or centrifugal type, 1 inch to 4 inch for select
Economic tiller/cultivators: Belt or gear transmission, low cost labor saving tools for agricultural.
Trade Show & Business Negotiation:
Shipping
More needs, plz contact me freely
