Hot Sale High Capacity Jaw Crusher on Sale

Name: Hot Sale High Capacity Jaw Crusher on Sale
Brand: Yuxiang
Availability: InStock

FOB Price

US$ 1,000 - 6,000 / Set

1 Set(Min. Order)

Port Qingdao shanghai Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Jaw Crusher
Application	Mining	Motor Type	AC Motor
Power(W)	50KW	Capacity(t/h)	50-60t
Place of Origin	Henan, China	Brand Name	Yuxiang
Model Number	PE250*400	Dimension(LWH)	2520X1840X2303
Weight	10.3t	Certification	CE ISO
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Hot sale high capacity jaw crusher on sale

Product Description

With larger feed openings and bigger crushing strokes, the Jaw Crusher is suitable for crushing big size lumps in large quantity. Jaw Crushers are especially recommended for primary and concrete recycling, river stones, tough ores, for a very long life. From the welded steel base to the rugged eccentric shaft, the jaw crusher is built with brute strength with quality bearings.

Jaw crusher working principle

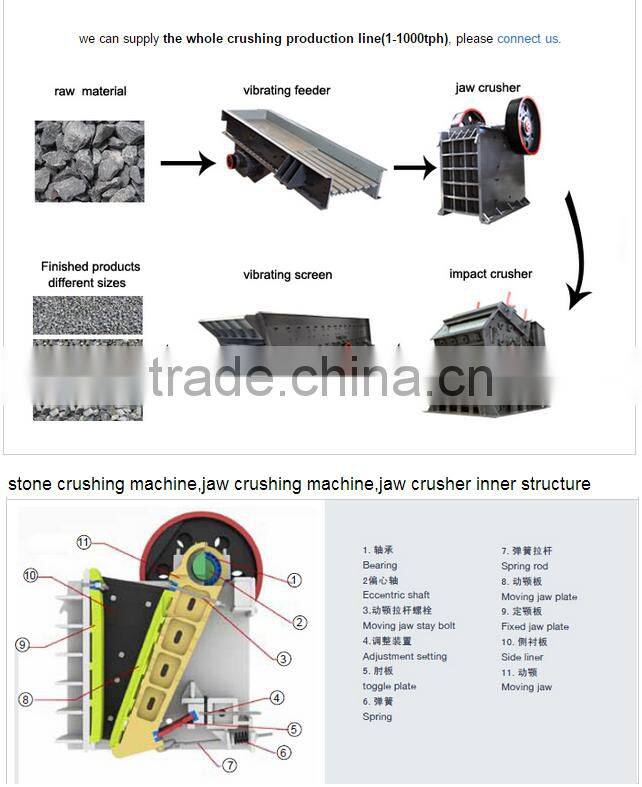

A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. A jaw or toggle crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw, called a swing jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker. The volume or cavity between the two jaws is called the crushing chamber. The movement of the swing jaw can be quite small, since complete crushing is not performed in one stroke. The inertia required to crush the material is provided by a weighted flywheel that moves a shaft creating an eccentric motion that causes the closing of the gap.

Main Features

The Jaw Crusher is configured for primary crushing of even the hardest rock. Incoming material is crushed between the jaw crusher’s fixed plate and movable plate through advancing and retreating motions of the jaw crusher pitman arm. The Jaw Crusher main shaft bearing includes a dust seal with oil bath lubrication

1. Roller bearings provide strength & safety. Oil bath lubrication ensures longer service life.

2. Toggle plate, toggle block, and toggle seat protect the jaw crusher from damage caused by uncrushable material in the crushing chamber. This construction helps to maintain a stable crushing angle.

3. Simple & quick discharge gap adjustment, precise product grain distribution.

4. Large & deep crushing chamber with sharp crushing angle, to achieve a very high crushing ratio.

5. The Jaw Crusher with bigger feed opening and longer pitman arm is especially suitable for primary crushing.

6. Recommended for big lumps & large quantities, for primary crushing of limestone, river stone, tough ores, and concrete recycling.

Jaw crusher technical parameters

Model	Feeder Opening (mm)	Setting Adjustment Range(mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight(t)
PE250x400	400x250	20-50	200	5-25	15	2.4
PE500x750	500x750	50-100	425	40-100	40-55	12
PE600x900	900x600	65-160	480	90-180	55-75	17
PE750x1060	1060x750	80-140	630	110-320	90-110	29
PE900x1200	900*1200	95-165	750	220-450	110-132	52
PE1000x1200	1000x1200	195-265	850	315-550	110	57

Packaging & Shipping

Company Information

Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,feed and fuel pellet making machine ,oil press machine etc. We are located in Gongyi city, Henan, China.
