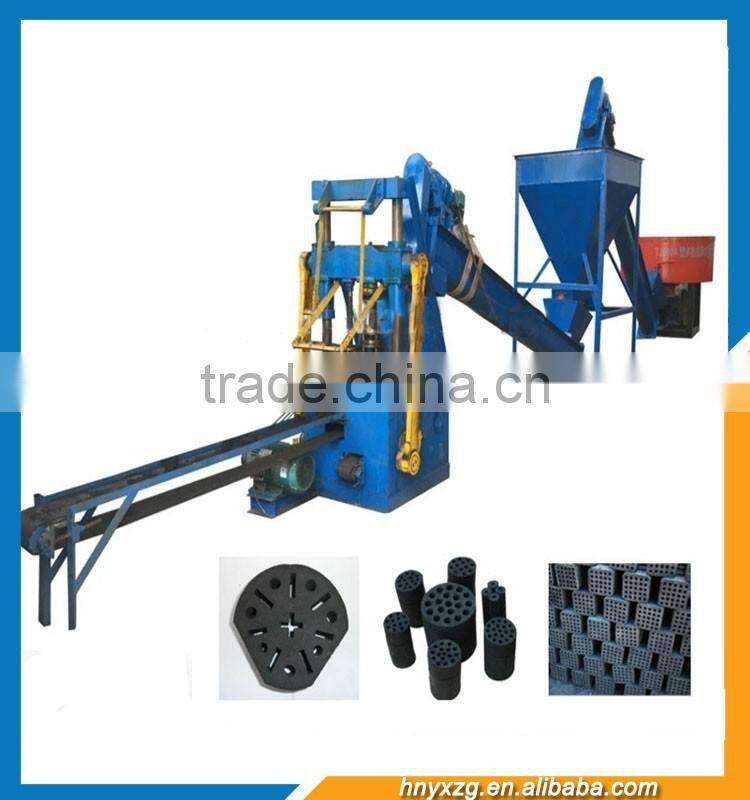

Environmental Energy Large Capacity Honeycomb Briquette Machine

 Raw material: All kinds of coal powder or charcoal powder.

1. Body parts: Consits of platen, engine base, forming the skeleton entity.

2. Driving parts: Consists of motor, belt pulley, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through tow gears pass to axis, and then by a pair of bevel gear and the axis of rotation to drive the dial, and then pass to the four panel movement.

3. Feeding parts: Consists of spindle, hopper, agitator, it will strike by axial gear mixer, beaten coal and load mode barrel.

4. The punching parts: It is mainly consists of four slide, sliding beam, punch, punch holder,

punch pin, activity pressure plate, end of activity mode, spring, etc. When the machine driven by two gears, through the pull rod drives the sliding beam, make the punch down, activities set up, the spring become tight, press the coal powder into coal briquettes, and punch the coal briquettes onto the conveyor, for conveying out, the density of coal briquettes, is decided by the spring to tightly press activity plate.

5. Transport part: Consists of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation the shaped coal briquettes out off the body, the adjustable screw on the conveyor rack can adjust the tightness.

1.The structure is simple and easy to operate.

2.Manufacturing circular coal, round coal, porous coal, plum coal, goose-egg shaped coal,hollow and speed of combustion honeycomb briquette ( a match to ignite the fire of briquettes ) die easy to replace.

3.Multi-use, energy-saving power, reasonable price.To do a new ignition coal, speed burning honeycomb briquette, Straw honeycomb briquette, double honeycomb briquette, planning, design, production, installation for users of briquette production line.

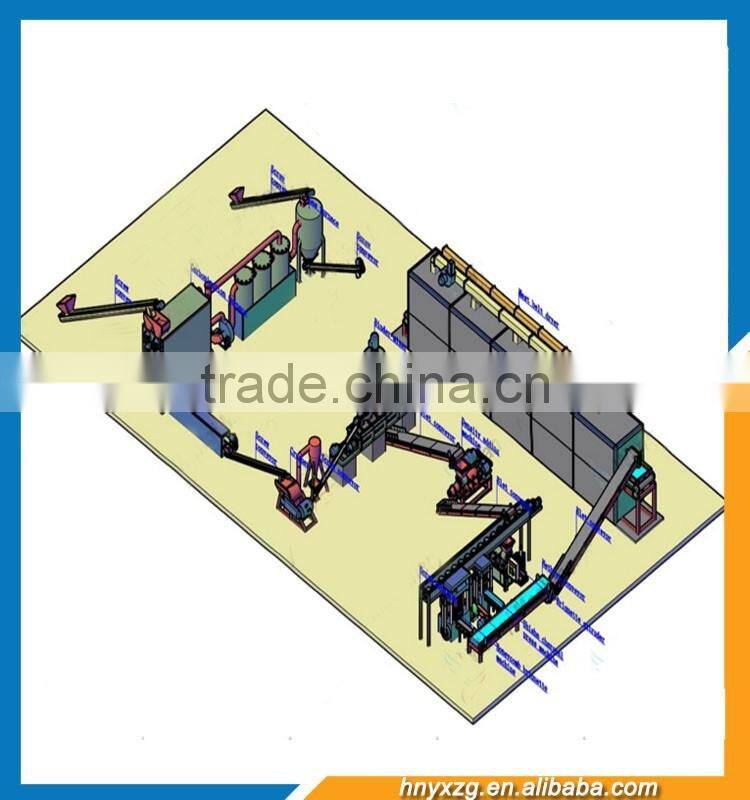

Our engineer design large product line(flow chart)

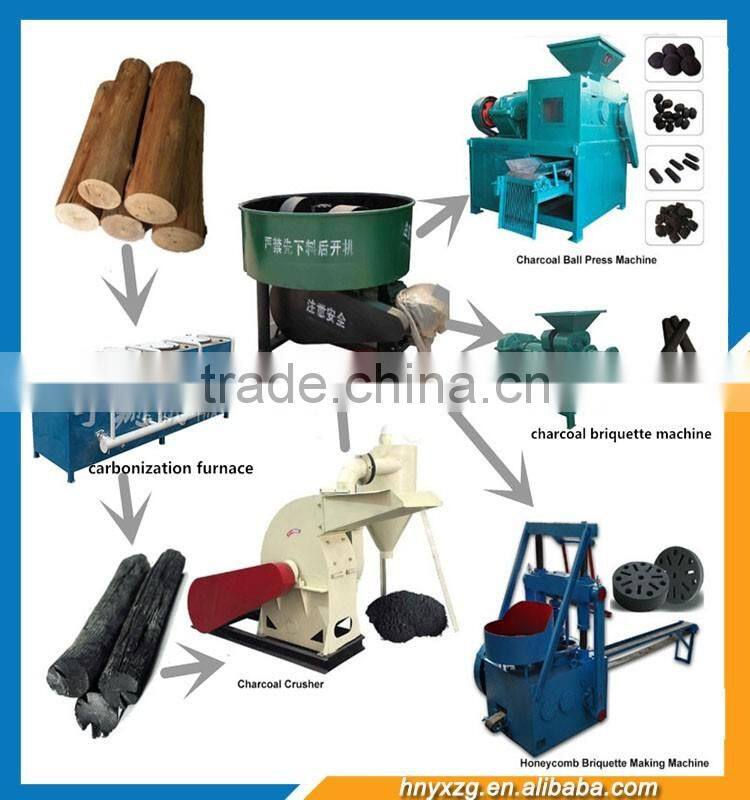

 Producing charcoal briquette from wood

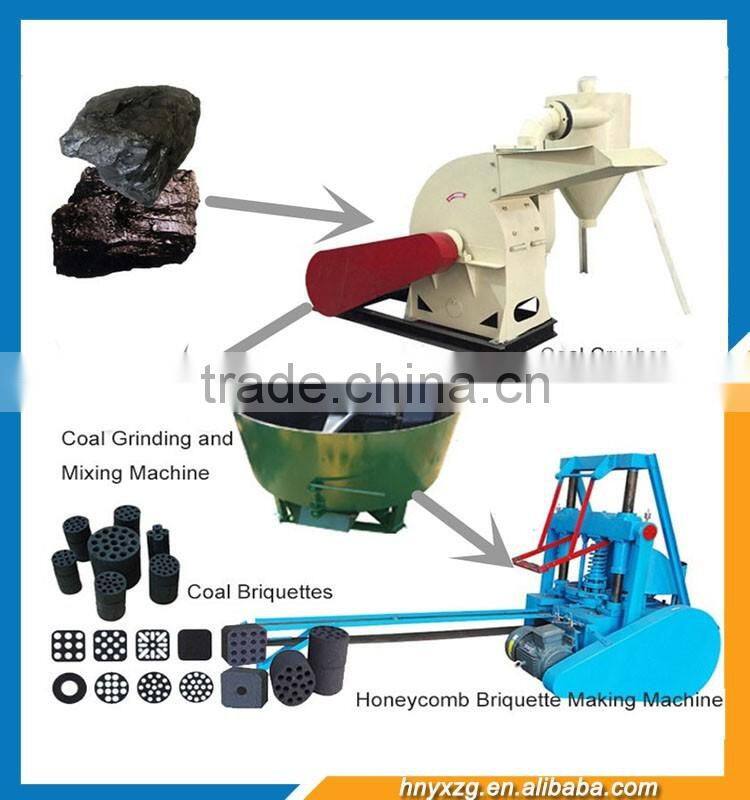

Producing coal honeycomb briquette from coal

 Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.

Yuxiang heavy machinery is located in China famouse machinery county-Gongyi (Henan),covering an area of over 20000 square meters.Being an ISO 9001:2000 international Quality System certified enterpise,since its born Yuxiang has been concentrating on Research,Design&Manufacturing of Mining machines like wet pan mill,ball mill,crusher etc.;Biomass energy machines like carbonization furnace,charcocal briquette machine;Oil press machine series.

Yuxiang is focused on producing machinery that specifically meets the unique needs of cusotmers.operation by tailoring the solution around specific goals.During the past 20years,Yuxiang company has gained rich experience in the field of designing and manufacturing of machines.At the same time,Yuxiang continues to invest in the advanced equipments and keep upgrading and maintaining the facilities we have had.We can provide our customers with high quality machines by combining modern equipments with advanced processing technology and perfect Quality Control System.
