"shisha charcoal" in the Arabia,in england and America,peaple called"hookah",but in European countries,it was called:shisha.Actually,In Arabic,the written name is :N Argile".at present,shisha charcoal had become a fashion with enterainment,leisure and relaxation in Europe and America,more and more people(in different age phase)begin to pay attention to it.

2.Introduction of Shisha Charcoal Briquette Forming Machine:

It is a machine can press charcoal powder into small tablets, round shape, cubic shape, strip shape,ringlike shape, etc, also it can press with special words, company name, brand name, telephone number, etc. Good charcoal powder from coconut shell, bamboo, hard wood can pressed into high quality shisha charcoal, no harm to health.

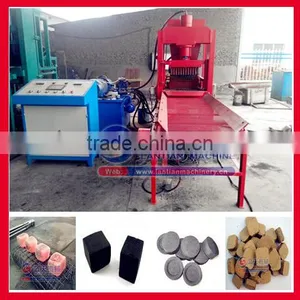

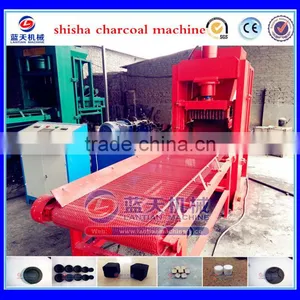

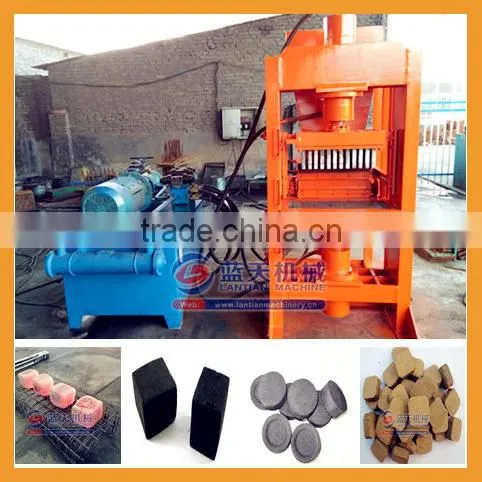

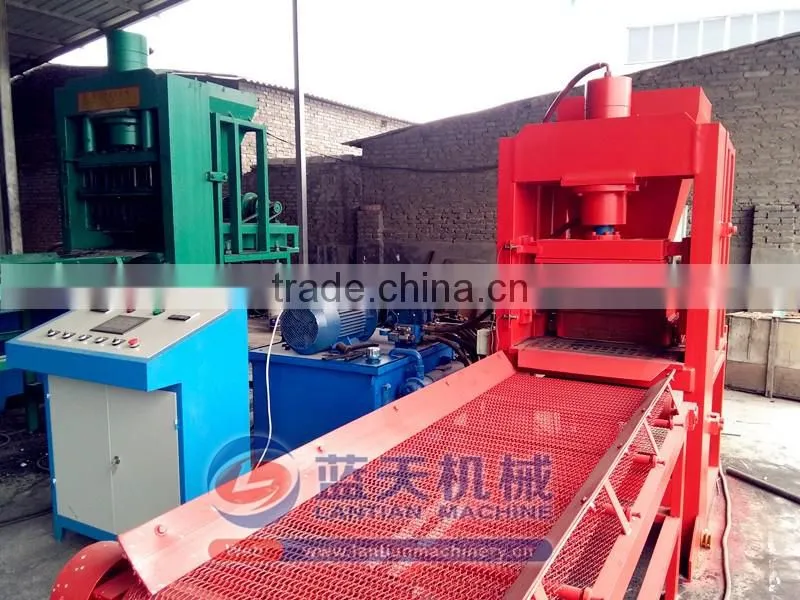

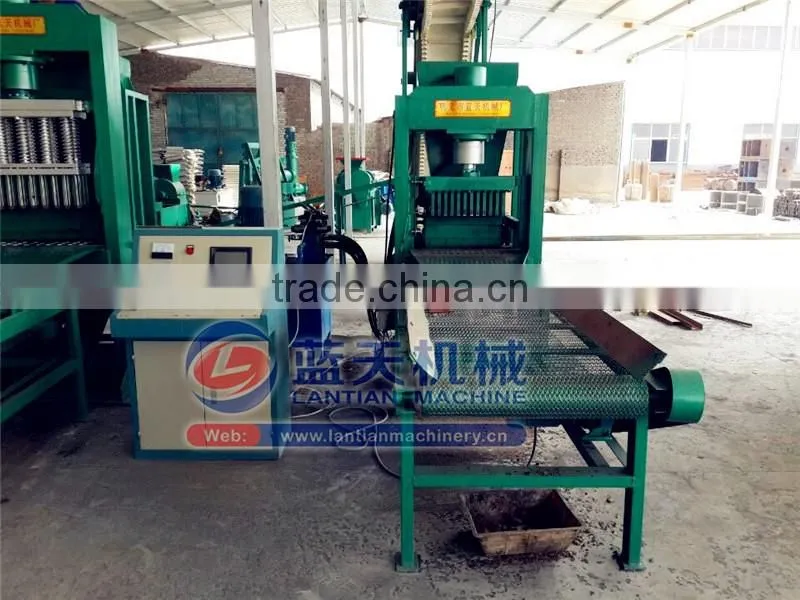

(1) Hydraulic type:
This machine is our patent product, which researched and developed by our engineers for 2 years.
Compared with mechanical type, some features as follows:
(1) it has larger pressure, also pressure can be adjusted, so it can press different
raw material: charcoal powder, coal powder, sawdust, salt, fertilizer, etc.
(2) it has manual and automatic operation two kinds, so more flexible and simple.
(3) pressure, speed, punching times, shisha charcoal heights all can be adjusted.
(4) the whole machine includes main machine, electric control cabinet(PLC), hydraulic cylinder and outlet conveyor belt.
(5) if for 25*25*25 mm cubic shape, it can press 48 pieces per time; if for 33mm round tablet, it can press 30 pieces per time; The punching times is 7-11 times one minute. So it can press about 20000 pieces one hour.

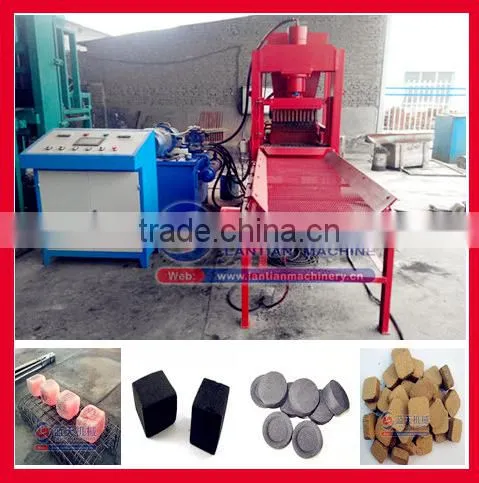

Hookah Shisha Charcoal Making Machine:

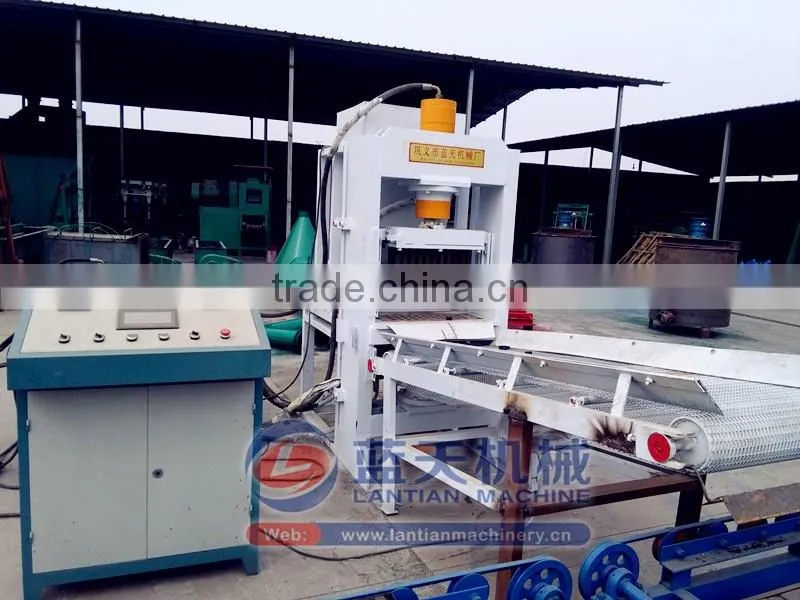

India customer Hookah Shisha Charcoal Making Machine:

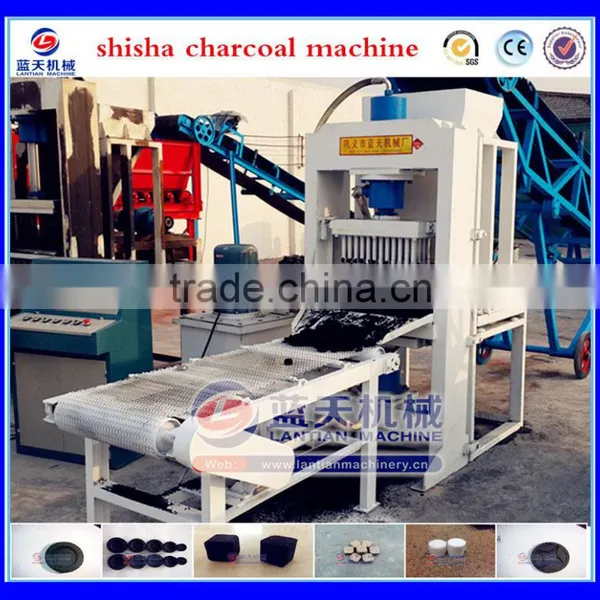

Dubai customer Shisha Charcoal Briquette Forming Machine:

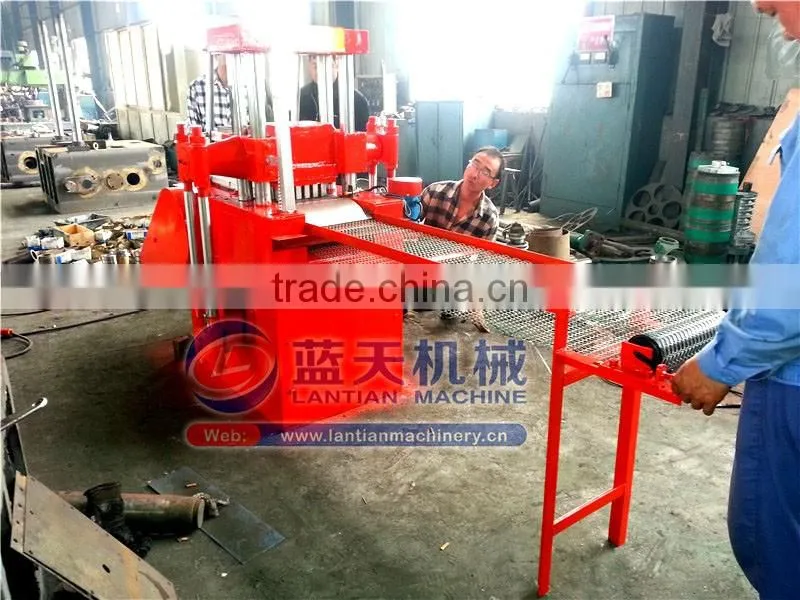

(2) Mechanical type:
Mechanical shisha charcoal machine is a very matured machine of our factory, we manufactured it for many years. So I guess most of them know this machine before.
Specific requirement:

For 33 mm round shape, It can press 9 pieces per time; for 25*25 square shape, it can press 12 pieces per time, the punching times is 20-24 times one minute, so it can press about 15000 pieces one minute.

Indonesia customer Shisha Charcoal Briquette Forming Machine:

4.Features of molds of Shisha Charcoal Briquette Forming Machine.
The mold material is chromium steel, the feature is high hardness, wear-resistant, corrosion-resistant and not rust, the service time is 3-4 years (8 hours working time per day). The mold use wire cutting process technology, so the mold size is very precise.
Mold shape and size can be customized according to customers special demands, for example square shape, round shape, strip shape, heart shape or others.


5.Main parameters of Shisha Charcoal Briquette Forming Machine:

6. Shisha Charcoal Briquette Forming Machineproduction line:
Raw material----carbonizing----crushing----mixing----molding----drying.
In order to make good quality shisha charcoal, we need pay attention some pointers as follows:
1. Raw materials: Hard wood charcoal, coconut shell charcoal, bamboo charcoal are good materials for shisha charcoal.
2. Shisha charcoal machine: Only good quality shisha charcoal machine can produce good quality shisha charcoal,our machine are patented products, we have hydraulic and mechanical two types for your choosing.
3. Binder formula: It needs to confirm the binder formula should be natural, smelless, nontoxic,
so it can ensure shisha charcoal good quality. Because our factory has many years experience in this field, so we have different kinds binder formulas, also they are low cost, easy get in market.

Final products of Charcoal Tablet Press Machine:
Generally, round size is 20-45mm, square size is 15-55mm. The final shisha charcoal is smokeless, smelless, nontoxic, combustible, also has long burning time. Usually shisha charcoal ash content is 3%-5%, one piece can burn one hour.
Besides, this machine also can press fertilizers, salt and sawdusts. The mixture of sawdust and wax can be used as high quality fire lighter.

Other assistant equipments of shisha charcoal/mini tablet press machine:

1 Firstly, all the machines will be wrapped up with plastic firm.
2 Then we will use wooden or iron box to put machines according to the size and weight and the machines will be put in a fixed container without collision and rust.

1 What is your company business type? Trading company or factory?
Our factory has 30 years experiences, all the machines are manufactured by ourselves,factory direct sales, so you can get the lowest price, high quality and after-sales service can be guarantee.

2 Could you offer complete production line?
Yes,we will allocate suitable line, according to your special requirement, such as crusher,conveyor,mixer,dryer,briquette machine etc.
