China NO.1 Manufacturer sawdust briquette charcoal extruder machine
Brief introduction of briquette charcoal extruder machine
briquette charcoal extruder machine is using sawdust, branches, rice husk, bamboo sawdust, peanut skin, sunflower seed shell, furfural residue, corncob, bagasse, lees, coconut shell and north south of crop straw as raw material, crushing, charcoal high-temperature, high-pressure plasticizing molding for mechanism charcoal semi-finished products, after carbonization is finished charcoal.
Raw material of briquette charcoal extruder machine
"Lantian brand" briquette charcoal extruder machine, the spiral propeller by using precision casting of special wear-resistant materials, life than conventional propeller increases more than ten times, forming sleeve using precision casting special formula alloy material, life of up to one year, this cutting-edge technology not only the cost is reduced greatly, but also saves manpower.
Production characteristic of briquette charcoal extruder machine
1. do not need to add any binder or harmful chemicals;
2. the raw material moisture within 10-12%
3. the use of advanced hot air flow drying system, the drying effect is excellent;
4.by high temperature carbonization equipment, purification, in addition to smoke can be semi-finished products into smokeless, tasteless, non-toxic cleaning carbon, sional technical support, no risk
The performance advantage of lantian brand of briquette charcoal extruder machine
I. Charcoal machine design is reasonable, and the manufacturing quality is reliable, which has the advantages of simple structure, convenient operation, small volume features, less land occupation, and energy saving.
II. Full automatic control heating device design, random control material dry humidity to ensure molding material stability, and improve work efficiency;
III. Charcoal machine propeller part is made of wear-resistant materials through special processing to increase the production time and prolong life.
IV. Increase the pitch increased feed rate, thus greatly improves the yield
VI. Improved structure of the cone shape, friction machinery and raw materials, increase the density of the rods.
Technical parameters of briquette charcoal extruder machine
Model |
Power(kw) |
Yield (t/h) |
Temperature of ingredient |
Weight (ton) |
The shapes size |
|
BJ50-L |
11-15 |
0.15-025 |
8-12% |
|
0.60 |
2200*600*1350 |
BJ60-L |
15-18.5 |
0.25-0.28 |
8-12% |
0.65 |
2400*700*1350 |
|
BJ70-L |
18.5-22 |
0.28-0.35 |
8-12% |
0.80 |
2400*750*1400 2600*750*1450 |
|
BJ80-L |
22-25 |
0.35-0.38 |
8-12% |
0.88 |
|
|
BJ90-L |
30 |
0.38-0,45 |
8-12% |
0.98 |
2600*1800*1500 |
|

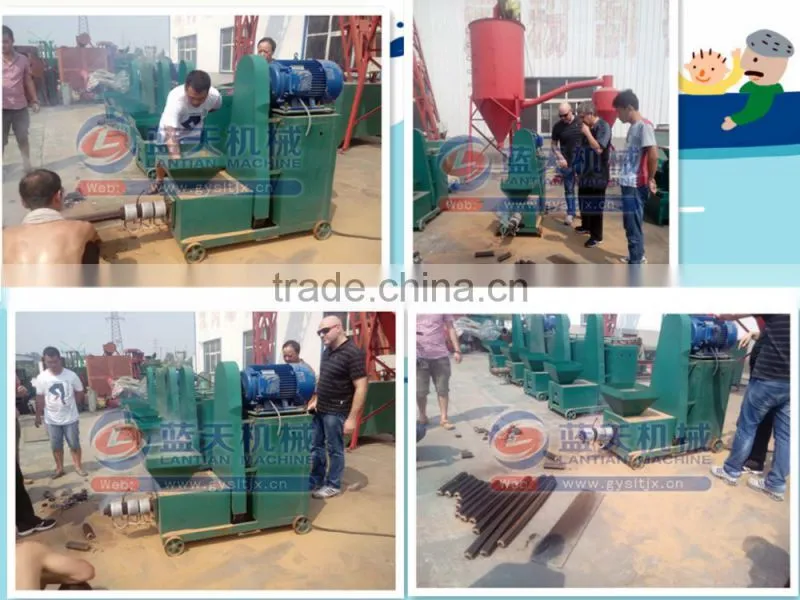

The production of briquette charcoal extruder machine

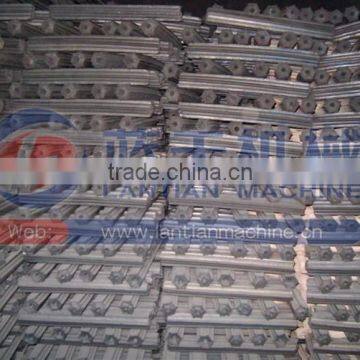

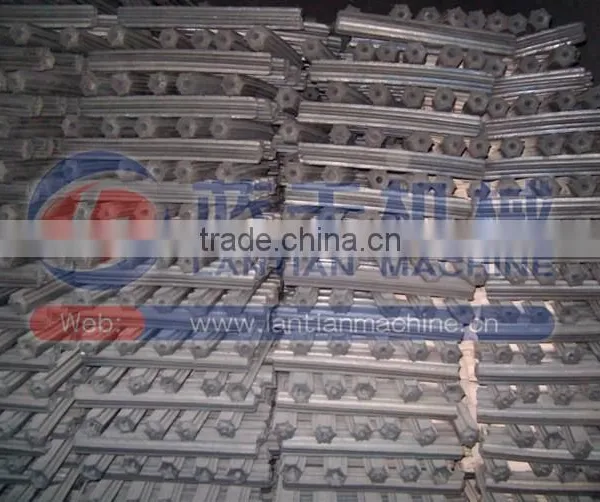

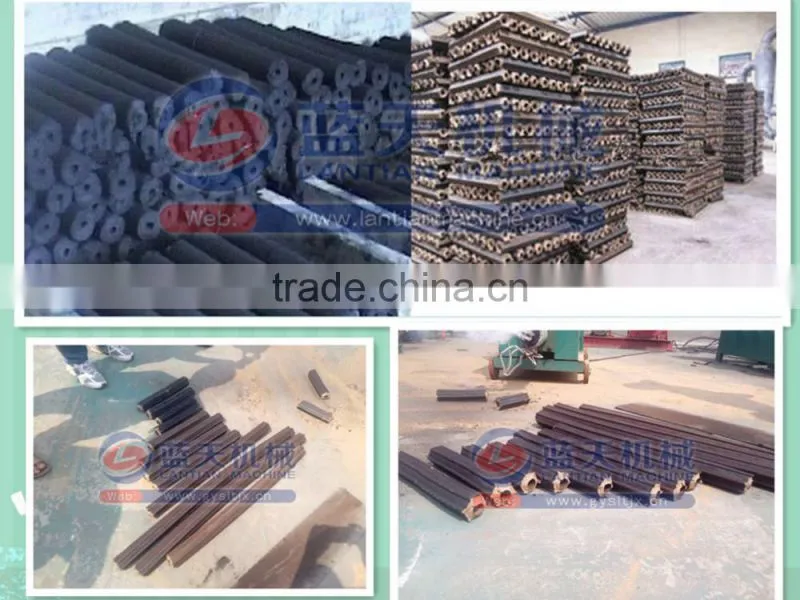

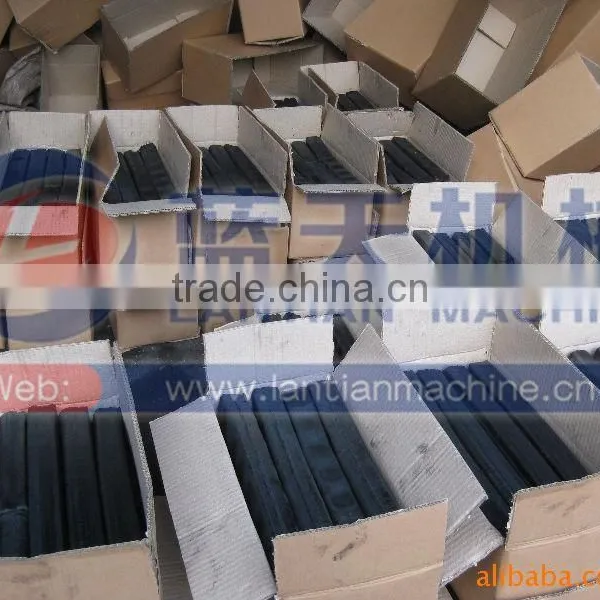

The main features and quality index of sawdust charcoal
Mechanism charcoal main features: high density, high heat value, no dust, no pollution, tasteless, no explosion, easy combustion, is internationally recognized as the green environmental protection product. The quality index of charcoal:
moisture |
Carbon content |
Ash |
Calorific value |
The burning time |
volatility |
Combustion humility |
0.98% |
83.28% |
3.68% |
7.9kcal/kg |
200min/kg |
6.68% |
880 |
This wood scrap materials, branches, peanut shell, corn stalks, straw and other crop wastes do charcoal is equal to the South and the north of garbage into money as raw materials, waste to treasure. In the absence of air condition, after a high temperature and high pressure molding, carbonization waste into renewable resources, is changing the pollutants into an important model organism resources, the development of agricultural circular economy. The market price at 1.4 yuan per kg, is suitable for industrial production, food and beverage industry and home heating.

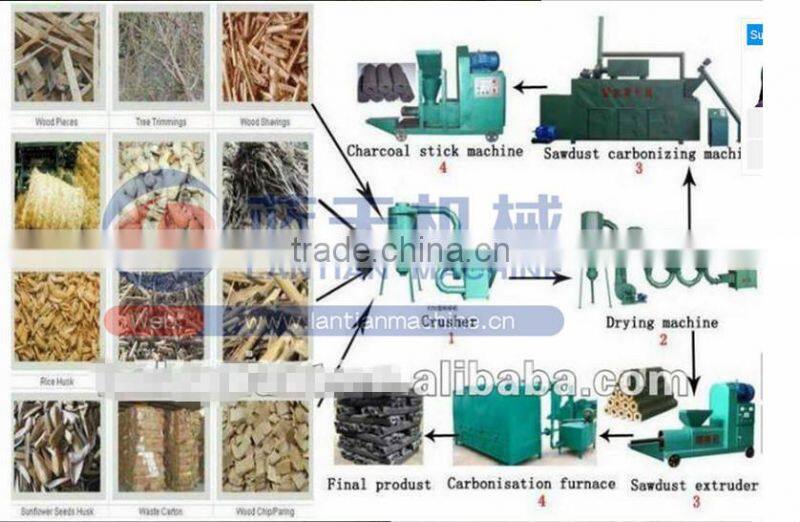

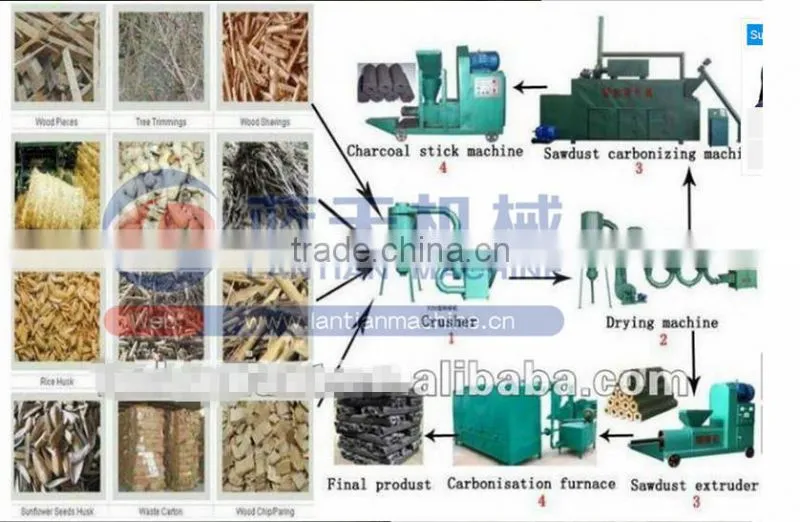

The working line of charcoal briquette machine

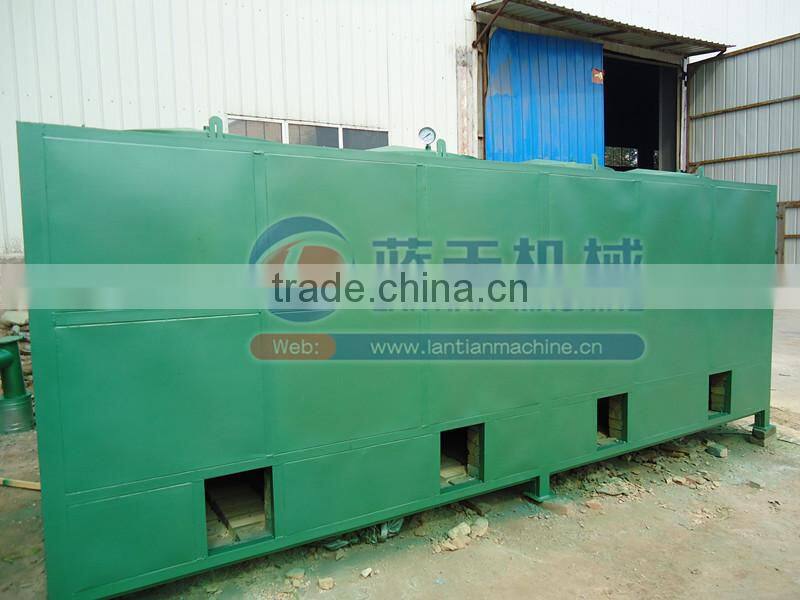

We know that the sawdust charcoal machine processed only semi-finished wood charcoal In order to fully processed into charcoal It must be a professional carbonization process In addition Our factory has the professional carbonization furnace for you to choose
We can according to your request to provide the most comprehensive protection machine
Pre-sale service, Installation and After sales service:
The Pre-sale service is free, begins with analyzing and planning of your particular needs. Whether you need a single machine, a multi-stage process or a production line. We can advise you on the right solution for the most cost-efficient briquetting.
We can guide you to install the products or directly send our engineer in your country for the installation.
In the after sales service, we have a team of briquetting professionals ready to help you. We provide one year warranty for all of our products and six month for the wear parts. Spare and wear parts are always close to you.
we are a company with more than 20 years of history of the company, the company's main coal equipment, charcoal equipment, drying equipment,processing equipment, such as pressure ball machine, drying machine, hydraulic machine,pressing machine, granulator, coal rod machine, charcoal machine honeycomb briquettemachine and auxiliary equipment, etc.. In 2005 the enterprise has been approved as a Chinaimport and export autonomy of enterprises, ISO international quality certification, EU CEcertification enterprises, 2006-2008 was named the integrity of private enterprises in Zhengzhou City, Zhengzhou patent demonstration enterprise. At present, has obtained eight utility model patents, patent two, filed for a patent for invention
If any questions, please contact me soon, I will do my best for you to solve the problem
