Home > Products > Extruder machine > 30 years Silver Chacoal Stick/bars/rods Extruder Machine
30 years Silver Chacoal Stick/bars/rods Extruder Machine
- 30 Set / Sets per Month
- Qingdao/ Shanghai/Ningbo/Guangzhou/ Alataw Pass/Erenhot
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Lantian |
Model Number: | 140 | Voltage: | 220V/380V | Power(W): | 11kw |
Weight: | 500 kg | Dimension(L*W*H): | 2*1.3*1.15 m | Certification: | CE ISO |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

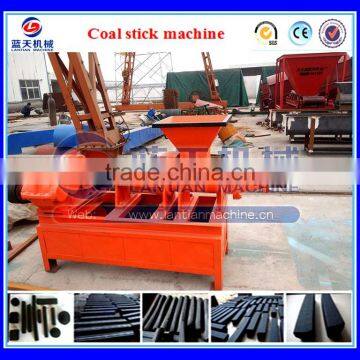

30 years Silver Chacoal Stick/bars/rods Extruder Machine
Finished product show :
1. Introduction of charcoal rod extruder machine :
It is an evergy-saving and environmental-friendly equipment, used to make coal/charcoal sticks from raw materials like coal dust, coal mud, coal ash, coking coal, charcoal powder, coal and charcoal wastes. This machine can also be used to process agricultural wastes like wood, branches, rice husks, peanut shells and others (please note: if you use these materials should be carbonized into charcoal powder firstly). The final products are shaped by screw press, and the final shapes can be round, hexagonal, quincunx, hollow and other kinds,the diameter is 20-50mm,it can meet your different needs!
This machine has single discharge port, but in single port, it can has one hole, two holes, or three holes, please check machine working pictures.
360 type: Our factory new desigh 360 model charcoal briquette extruder machine. It is have two heads,means discharge mouthes.and three direction pressure.These advertage will make higher density,better apperence ,two times production capacity charcoal briquette.
180 type:
140 type:
2.Raw materials scope of charcoal rod extruder machine .
Gernerally, there are two kinds of materials: raw coal/charcoal powder, and carbonized agriculture wastes like wood, branch, rice husks, peanut shells, bagasse, cotton stalks, corn stalks, coconut shells, etc. Please note: material size should be less than 3mm, and the moisture content should be around 30%-40%. In order to get high density final products, you can use some binder during the production.
3. The parameter of charcoal rod extruder machine :
Model | MB 140 | MB180 | MB 300 |
Capacity--charcoal | 400-600kg/h | 600-800kg/h | 2000-3500 kg/h |
Capacity--coal | 1-2t/h | 2-3t/h | 1-6t/h |
Diameter(mm) | 20-40 | 20-60 | 20-80 |
Motor power | 11kw | 18.5kw | 45 kw |
Weight | 0.6t | 0.8t | 1.2t |
Dimension | 1.87*0.9*1.15m | 2.35*0.9*1.37m | 2.7*1.25*2m |
4. The spart of charcoal rod extruder machine :
5.Automatic production line of charcoal rod extruder machine :
a.Binder mixer: It is using for dissolving and thicking binder.
b.Crusher and mixer: It is a machine with the function of crushing and mixing together, crushing the raw material below 5mm, and mixing them uniformly. The moisture need controlled between 25%-30%.
c.Coal briquette machine: It presses coal powder, charcoal powder, or other powders into different shapes and size.
d.Dryer. We have vertical dryer, box dryer and mesh belt dryer. I will suggest suitable dryer according to your raw machine, shape and size.
6.The working site from our customer in Indonisia.
1. Established in 1980s, our company covers an area of 100,000 square meters which includes 66,000 square meters of workshops. We have the most advanced technology, most strict process, from material purchase to the finished products, all strictly according to the national quality inspections standards.It mainly specilize in charcoal making machine, sawdust briquette machine,briquette machine,powder making machine,extruder machine, BBQ machine,honeycomb briquette machine,carbonization furnace,heat pump dryer and so on.
2. As manufactures, we have more than 30 years of experience, our products all achieved patent certificates, and our company has many times achieved the title of honer: " Observe Contract and Keep Promise" " Quality Trustworthy Product" "Good After-sales Service Reputation", etc.
(1)What is your company business type? Trading company or factory?
We are a 30 years factory, all the machines are manufactured by ourselves, factory direct sales, so you can
get the factory outlet price,all the products quality and after-sales service can be guarantee.
(2)Could you offer complete production line?
Yes, we will allocate suitable production line, according to your special requirement,such as crusher,conveyor,
mixer, dryer, briquette machine,
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station.
