Specifications
mortar spraying machine1.flow is uniformity
2.structure is simple and compact
3.wearing parts are easy to be replaced
low price ISO9001 automatic mortar spraying machine for sale
Application of mortar spraying machine
It is suitable for pumping and spraying the wet ready-mixed mortar witch is pumpable, such as Cement mortars, Lime plasters, Gypsum plasters, Masonry mortars, Insulating plasters,
Self-leveling floor screeds, etc.
Main features of mortar spraying machine
1. High working pressure, stable flow, can deliver mortar with higher sand content.
2. It adopts screw delivery, the flow is uniformity.
3. It adopts mechanical transmission, the structure is simple and compact, the wearing parts are cheap and easy to be replaced.
4. The rotator and stator has passed strick testification, the performance is reliable and has a long working life.
5. It is small in size, convenient to move, especially suitable to working in narrow space.
Main specifications of mortar spraying machine
Model | GLP-2A | GLP-2B | GLP-3A | GLP-3B |
Capacity | 2 m3/h | 2-4 m3/h | 3 m3/h | 3-6 m3/h |
Working pressure | 3 MPa | 3 MPa | 3 MPa | 3 MPa |
Horizontal delivery distance | 50 m | 50 m | 50 m | 50 mm |
Vertical delivery distance | 30 m | 30 m | 20m | 20m |
Main power | 4 kw/380 v | 4 kw/380 v | 7.5kw/380v | 7.5kw/380v |
Screw rotating speed | 380 rpm | 200-600rpm | 160 rpm | 200-600 rpm |
Inner diameter of air pipe | 13 mm | 13 mm | 13 mm | 13 mm |
Max diameter of material | 4 mm | 4 mm | 4 mm | 4 mm |
Diameter of delivery pipe | 25/32 mm | 25/32 mm | 25/32 mm | 25/32mm |
Air compressor | 400 L/min,8 bar, 3kw | |||
Volume of hopper | 30 L | 30 L | 50 L | 50 L |
Filling height | 800 mm | 800 mm | 800mm | 800 mm |
Dimension (mm) | 1460x600x1100 | 1465x700x1150 | 1735x500x1250 | 1835x600x1150 |
Weight | 175 kg | 220kg | 320kg | 380kg |
NOTE: The difference between A and B: type A adopts fixed rotating speed, type B adopts adjustable rotating speed,
comparatively speaking, type B has a longer working life with the rotator and stator.

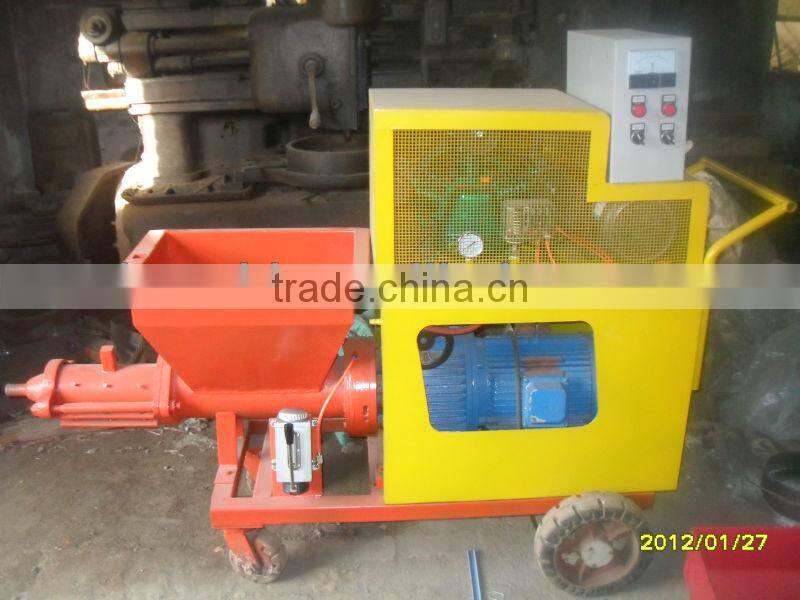

Picture show of mortar spraying machine
