Home > Manufacturing & Processing Machinery > Sorting Machine > Vibrating Screen > 3-6t/h Animal Feed Pellet Vibration Screener

3-6t/h Animal Feed Pellet Vibration Screener

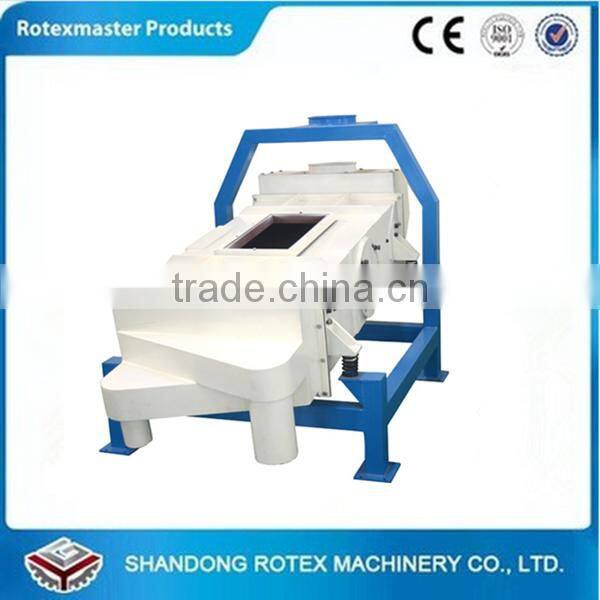

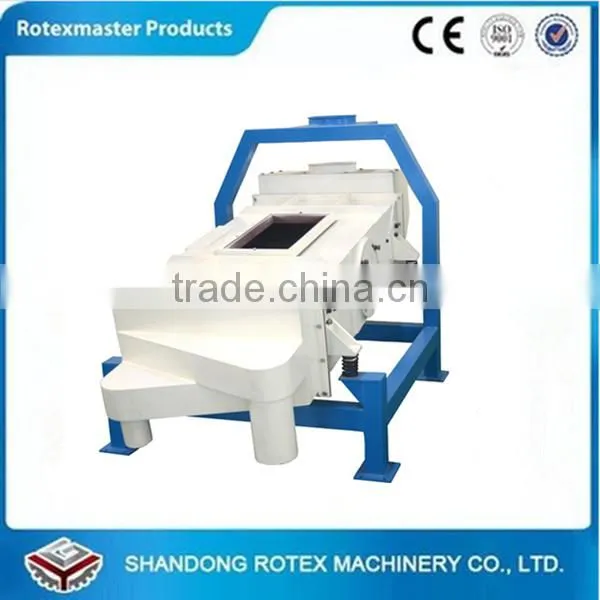

3-6t/h Animal Feed Pellet Vibration Screener photo-1

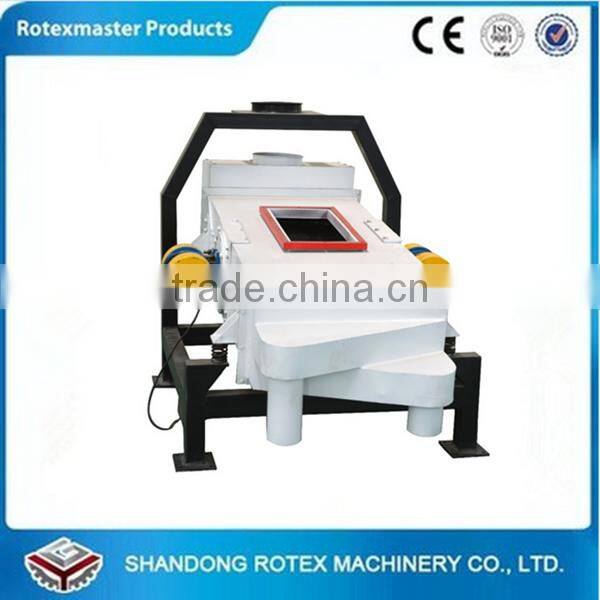

3-6t/h Animal Feed Pellet Vibration Screener photo-2

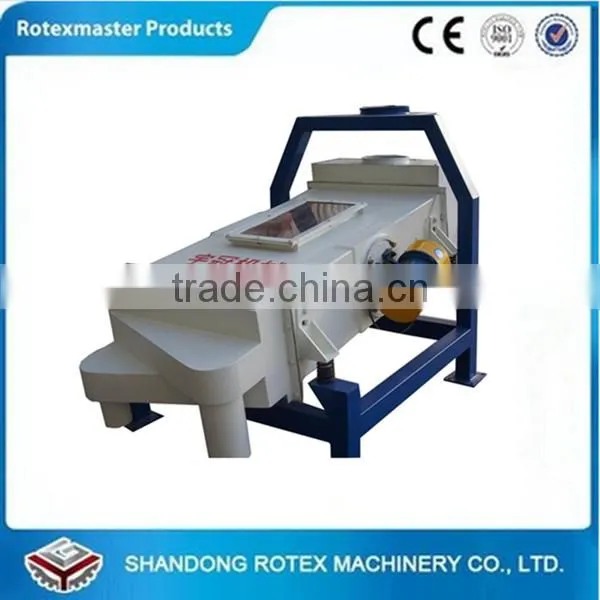

3-6t/h Animal Feed Pellet Vibration Screener photo-3

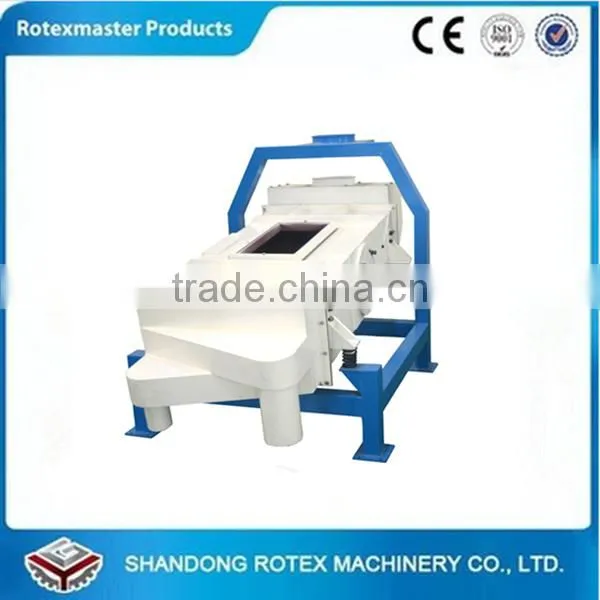

3-6t/h Animal Feed Pellet Vibration Screener photo-4
US$ 1,990 - 2,090 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, animal feed pellet screening
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Linear
Application Other, animal feed pellet screening
Brand Name ROTEXMASTER
Model Number YSKFZ60*2C
Voltage customized
Power(W) 0.25*2Kw
Dimension(L*W*H) 1150*1000*500MM
Weight 150kG
Certification CE, SGS, ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Breif introduction of  vibrating screener

YSKF series vibrating screener is  widely  used  in biomass  pellet,  feed  pelle  and  fertilizer pellet  production  line .

The horizontal vibrating motor as vibration power, the material is tossed in the screen, meanwhile, put raw materials forward in a straight line, so called vibrating screener. Material from the feeder machine evenly into the feeding inlet of vibrating screener, materials are discharged from their respective outlet through multi-screens,



Features of  vibrating screener

1: Horizontal vibrating motor

2: With low energy consumption, high output,

3: Simple structure, easy maintenance, fully enclosed structure,

4: No dust, automatic discharging, more suitable for pipeline operations.

3-6t/h animal feed pellet vibration screener

3-6t/h animal feed pellet vibration screener

Technical parameters of vibrating screener

Model

Capacity

(T/h)

Power

(Kw)

Vibration force

(Kg)

Vibration frequency

(batch/min)

Screen area

(mm)

YSKFZ60*2C

1-2

0.25*2

3000

920

1000*600

YSKFZ80*2C

2-4

0.25*2

5000

920

1500*800

YSKFZ100*2C

3-6

0.37*2

6000

920

1500*1000

YSKFZ120*2C

5-8

0.37*2

6000

920

1800*1000

YSKFZ150*2C

8-12

0.55*2

8000

920

2000*1200



Company information:

Shandong Rotex mechinary co., ltd, an professional manufacturer in boimass fuel machinary for 8 years, with main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment, vibrating screener and other auxiliary equipments.

3-6t/h animal feed pellet vibration screener

Exhibition

3-6t/h animal feed pellet vibration screener

Our team

3-6t/h animal feed pellet vibration screener3-6t/h animal feed pellet vibration screener



Our Service:

Pre-purchase servicedesign suitable plan for you according your material shape, size and moisture content. with less cost but biggest efficiency.

During-purchase servicecontrol quality, delivery intime

After-purchase service: if you ask,to your place to guide installation and degug and train your operator.





Any interest, pls contact me. BEST SOLUTION will supplied as per your request!
