efficient poultry chicken corn feed mixer grinder machine
>>. Animal Feed Crusher and Horizontal Feed Mixer
1. Mixer is horizontal and batch mixer,the hammer mill is small,the type can make powder feed;
2.The type of the hammer mill mixer machine have high effiency and can save the space for our feed factory.
3.The mixer body ends for double design, put an end to the two end dew material phenomenon;
4.The type of the hammer mill mixer machines equipped with grease add pipeline, overall reasonable structure, beautiful appearance, convenient operation and maintenance .

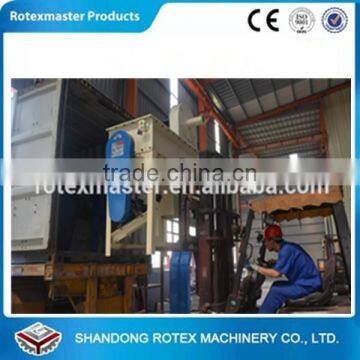

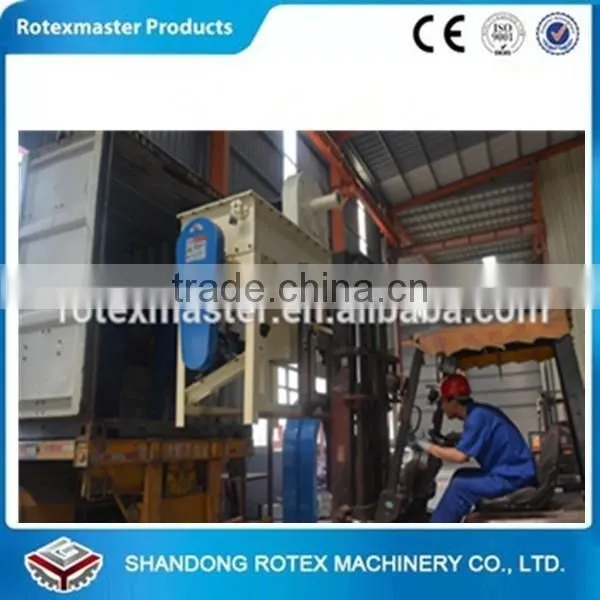

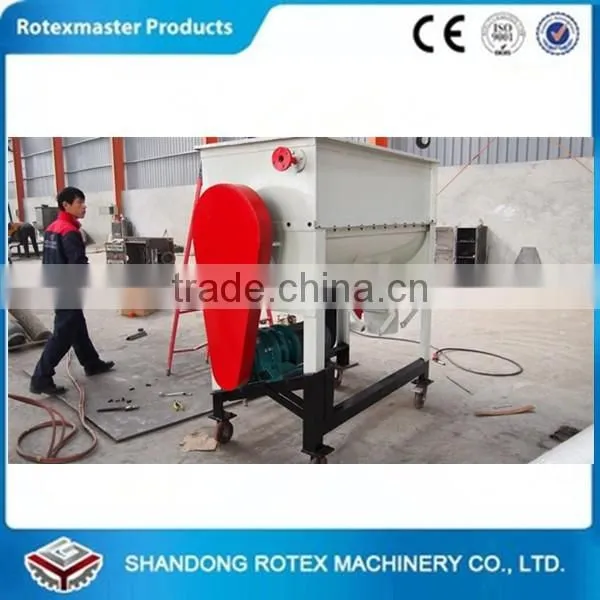

Feed Mixing Machine Photo (Carbon steel or Stainless steel)

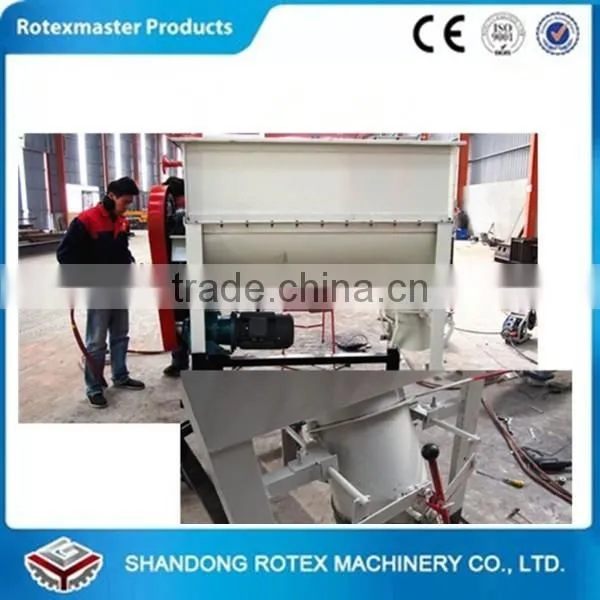

Manual discharge or Automatic discharge of feed mixer

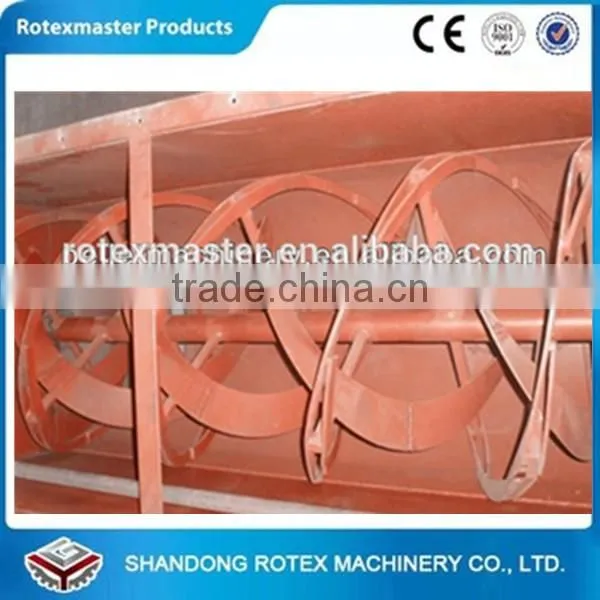

paddles in feed mixer
>>. Characteristics of Single Shaft Double Screw Horizontal Feed Mixer
1. Single shaft double screw feed mixer is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously.
2.We can make stainless steel and carbon steel mixer for your choice. It has the characteristics of high efficiency, reasonable structure, compact layout, reliable performance and easy maintenance.
3. Single shaft double screw horizontal feed mixer for livestock is one of the most important operations in manufacturing of animal feeds and mixer is considered to be the heart of feed milling operation.
4.One of the main application of mixing machine animal feed is mixing feed ingredients with other micro- ingredients such as vitamins, amino acids, trace elements and other feed additives in the feed pellet mill, which is one of the main products

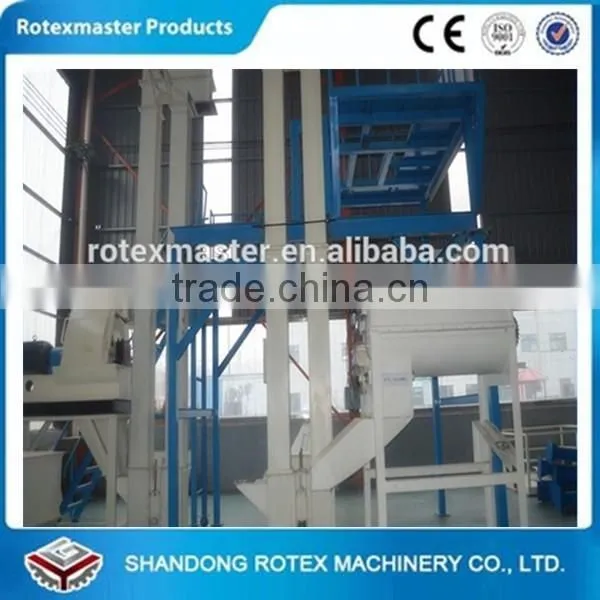

Feed Mixing Machine Application in Feed Pellet Line
>>. Know Features of Single Shaft Double Screw Horizontal Feed Mixer
1. Horizontal mixer's body and helical ribbon adopt special material,not easy to rust and corrosion, easy clean;
2.The support frame is of strong carbon steel framework design,solid and durable;
3. Propeller is wholly processed after welding,with high concentricity;
4.The mixer equipments standing operation only need little space;
5. Mixing in a sealed manner,uniform mixing and no leakage definitely;
6. Small horse power,large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes.
7. Oil filler and material discharging device are designed at frame bottom,with durable bearings
>>. Know Single Shaft Double Screw Horizontal Feed Mixer Parameter
Horizontal Mixer Model | SHJ-100 | SHJ-250 | SHJ-500 | SHJ-1000 | SHJ-2000 |
Motor Power(kw) | 3 | 5.5 | 7.5 | 18.5 | 22 |
Mix Capacity(ton) | 0.1T/Batch | 0.25T/Batch | 0.5T/Batch | 1.0T/Batch | 2.0T/Batch |
Effective Volume(m³) | 0.2 | 0.5 | 1 | 2 | 4 |
Dimension(m) | 1.4*0.6*0.75 | 1.83*0.78*1.6m | 2.45*0.82*1.85m | 2.86*1.1*1.9m | 4.5*1.45*2.7m |
Carbon Steel(mm) | 4-10mm | ||||
Mixing Time(minutes) | 3-5 minutes/Batch | ||||
Mixing Evenness (cv%) | CV ≤ 5% | ||||
Structure | "U" shape horizontal double helical ribbon mixer, Main shaft speed 25rpm | ||||
>>.Related Paddle Type Double Shaft Feed Mixer Picture(Genearl match big capacity producton line):
>>. Know Vertical Mixer Model(can be carbon steel and 304 stainless steel)
Vertical Mixer Model | SMJ-0.5T | SMJ -0.75T | SMJ -1.0T | SMJ -1.5T | SMJ -2.0T |
Motor Power(kw) | 2.2 | 3.0 | 3.0 | 3.0 | 4.0 |
Mix Capacity(ton) | 0.5T/Batch | 0.75T/Batch | 1T/Batch | 1.5T/Batch | 2T/Batch |
Weight(kg) | 150 | 175 | 200 | 250 | 300 |
Height(m) | 2.5 | 2.7 | 2.9 | 2.9 | 2.95 |
Diameter(m) | 1.0 | 1.25 | 1.25 | 1.6 | 1.8 |
Carbon Steel(mm) | 3-5mm | ||||
Mixing Time(minutes) | 10-15 minutes/Batch | ||||
Mixing Evenness (cv%) | CV ≤ 5-7% | ||||
>>.Vertical Type Poultry Feed Mixer Picture:
Factory Professional Service:
1.We devote to all-round service of all the products from shipment to maintenance.
2.Our professional service include:free training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of two years and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.
6.Welcome to contact us for further information!
Shandong Rotex Machinery CO.,LTD is a comprehensive manufacturer of bio-energy machinery, feed machinery,organic fertilizer machinery and production lines. located in Zhangqiu, Jinan, the company coverd 2.47 acre area, with more than usd 6.5million turnover, is the leading company in this field.Our main products are pellet machine, hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop and supply high quality products for domestic and overseas customers. and has wined an outstanding reputation in international market.
ROTEX MASTER's first quality attracted many clients from home and abroad
ROTEX MASTER Reputation Walls
>>. If you are interested in our mixer machne, feel free to contact Emily:
Email: machine07(at)
Whatsapp/ wechat/mob: +86-18615687601
Skype: pelletindustry07
