wood chips hammer mill
A. hammer mill is the most ideal grinding equipment for all kinds of wood chips,wood shavings, grass, straw, crop stalk, rice husk and palm fiber etc.
It can grind corn straw, grass, hay, alfafa, etc fiber material
B.We will install suitable hole screener sieve at the hammer mill bottom according to materials humidity. If raw materials were high humidity , then we will install 8mm hole screener even no screener at the bottom. If dry, then will install 2-4mm hole screener.

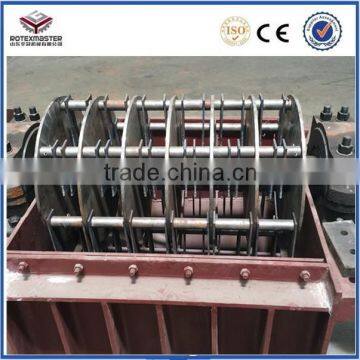

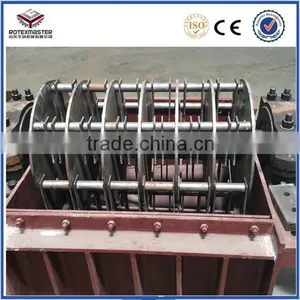

C.The cereal straw hammer mill key spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality; another one is our hammers front two angles are welded by tungsten, it can be used two times, just like vertical ring die mould with upper and bottom used. It reduce the cost and improve efficiency.

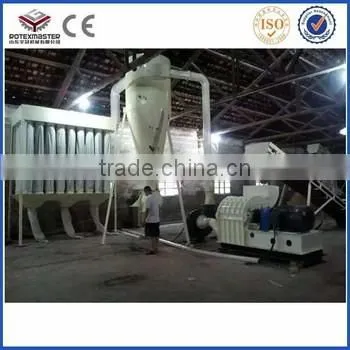

D.The cereal straw hammer mill works connect with air fan and cyclone, air lock,bag dust collector, after crushed, the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect dust.
Multifunctional Hammer Mill Technical Parameter
Model | Power(kw) | Output(t/h) | Dimension(mm) | Weight(t) | Qty of Hammer |
YDF40 | 7.5 | 0.2-0.5 | 1310*800*1070 | 0.27 | 12 |
YDF50 | 15 | 0.6-0.8 | 1380*800*1010 | 0.45 | 16 |
YDF65*27 | 22 | 0.8-1.5 | 1500*1000*1100 | 1.1 | 24 |
YDF65*55 | 37-45 | 1-2 | 1700*1000*1100 | 1.5 | 48 |
YDF65*75 | 55-75 | 2-3 | 2100*100*1100 | 1.9 | 72 |
YDF65*100 | 90-110 | 3-4 | 2400*1000*1100 | 2.3 | 96 |
YDF130*100 | 160-220 | 7-8 | 3020*1620*2170 | 6.8 | 160 |
Warm Tips: when you buy the hammer mill, dont forget to see the bearing base.
When the machine work fast, the bearing base will have a big function. Many supplier provide small
size bearing base, which easy to damage during working.
1.Technical support online service provided.
2.Technical files service provided,
3.On-site training service provided.
4.Spare parts replacement and repair service provided.
Shandong Rotex Machinery CO.,LTD is a comprehensive manufacturer of bio-energy machinery, feed machinery,organic fertilizer machinery and production lines. located in Zhangqiu, Jinan, the company coverd 2.47 acre area, with more than usd 6.5million turnover, is the leading company in this field.Our main products are pellet machine, hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop and supply high quality products for domestic and overseas customers. and has wined an outstanding reputation in international market.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 5 years of experience in this industry and be able to offer you the best quality and price.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport. We are just about 40 mins away from Jinan Airport.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: How many countries have you exported your equipment?
A: We have exported to many countries, such as Finland, Belgium, Egypt, Zambia, United State, Korea, Japan, Russia, Malaysia, Thailand, Qatar, Sudan, Vietnam, Turkey etc...
What we need to know:
1. what capacity do you want for an hour?
2. what are the raw materials do you want to make pellets?
3. What kind of animal do you feed for? 4. What is the diameter do you want for the finished pellets?
5. What is the industrial voltage there? China is 380V 50HZ 3PHASE. Pls help to confirm whether they are same.
