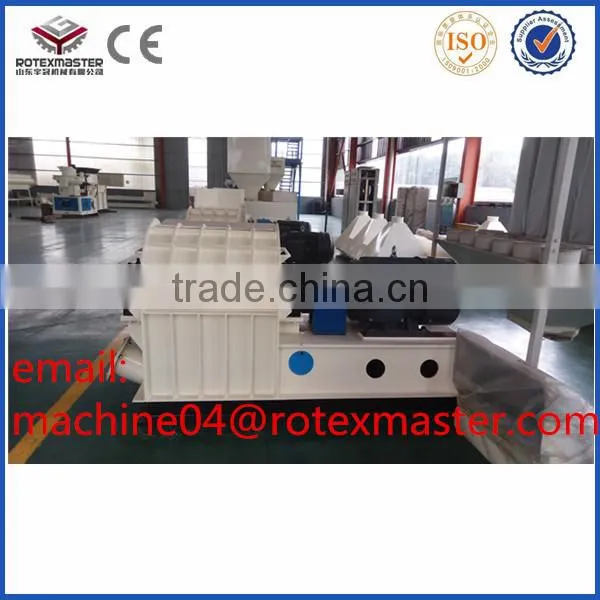

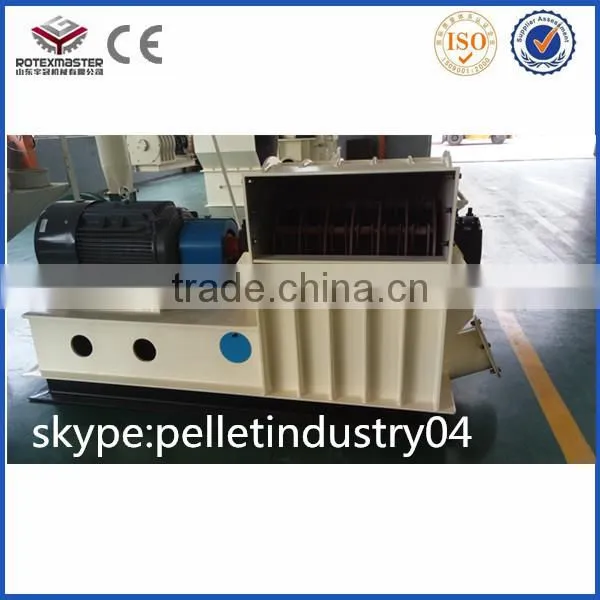

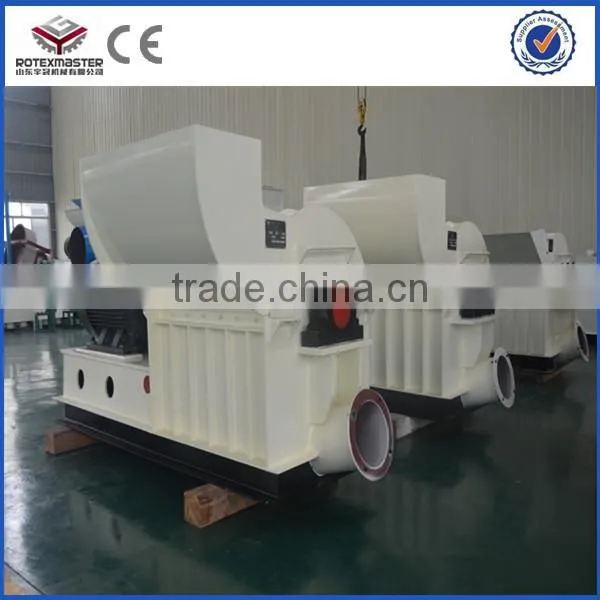

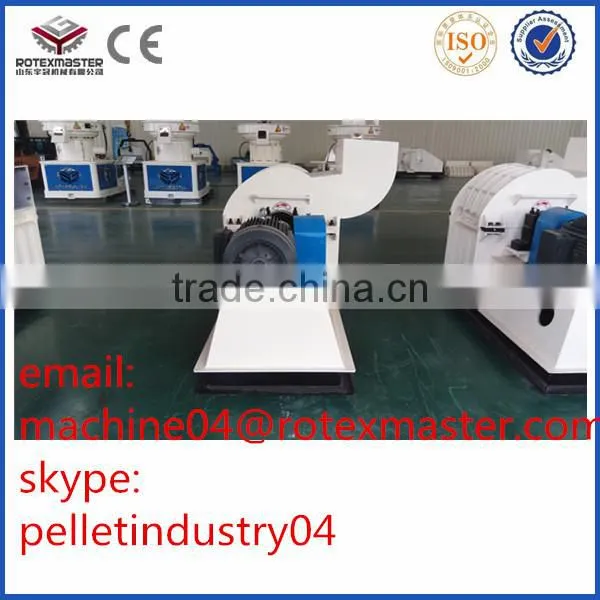

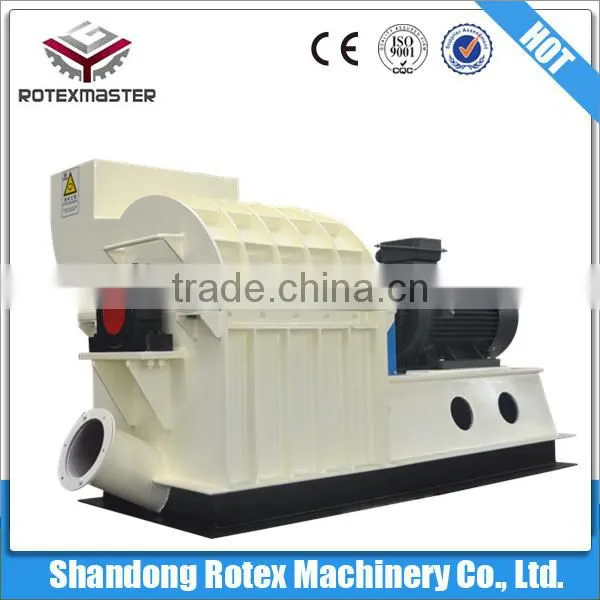

[ROTEX MASTER] YDF 65*55 Wood Crusher Machine for Making Sawdust

[ROTEX MASTER] YDF 65*55 Wood Crusher Machine for Making Sawdust

A. Multifunctional hammer mill is the most ideal grinding equipment for all kinds of wood chips,wood shavings, grass, straw, crop stalk, rice husk and palm fiber etc. When crush plastic, PVC and rubber, it adopts water cooling structure, avoiding the damage to spare parts due to long time working friction, except biomass. It also can crush animal feed materials such as soybean, maize, cereal and fertlizer materials from animal manure and chemical. It is mainly used in wood factory, feed factory and organic fertilizer factory etc.

B.We will install suitable hole screener sieve at the hammer mill bottom according to materials humidity. If raw materials were high humidity , then we will install 10-30mm hole screener even no screener at the bottom.  If dry, then will install 2-4mm hole screener, which means will outlet smaller than 2mm fine powder.

C.The hammer mill key spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality; another one is our hammers front two angles are welded by tungsten, it can be used two times, just like vertical ring die mould with upper and bottom used. It reduce the cost and improve efficiency.

D.The hammer mill works connect with air fan and cyclone, air lock,bag dust collector, after crushed, the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect dust.

Multifunctional Hammer Mill Technical Parameter

YDF65*27 Multifunctional Hammer Mill

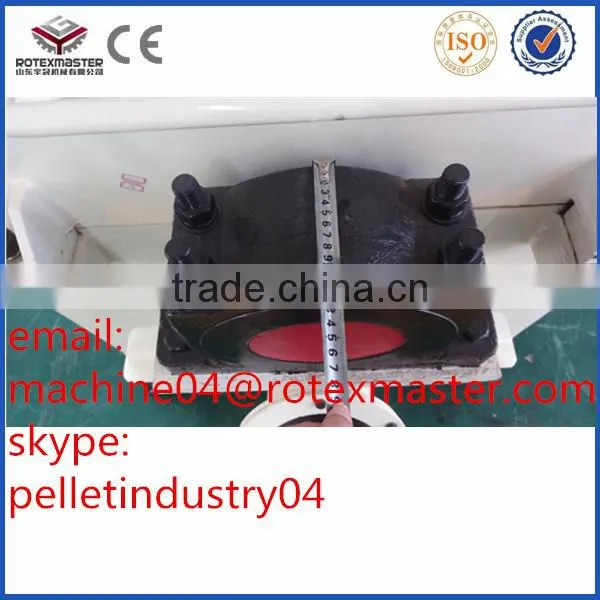

Warm Tips: when you buy the hammer mill, dont forget to see the bearing base.

When the machine work fast, the bearing base will have a big function. Many supplier provide small

size bearing base, which easy to damage during working.

YDF65*75 Multifunctional Hammer Mill 2-3 ton per hour

YDF65*55 Multifunctional Hammer Mill 37KW

The YDF65*75 Feeding door is different form YDF65*55.

So when you plan to have the hammer mill, let us know which one you want.

Except Multifuctional Hammer mill, we also have dual rotor hammer mill and High efficient hammer mill.

Dual Rotor Hammer Mill is widely used in crushing Palm fiber, cotton stalk etc.

Except the above one, we also have small capacity hammer mill with 300, 500kg/hr.

YDF40 and YDF50 Multifunctional Hammer Mill

What we need to know:

1. what capacity do you want for an hour?

2. what are the raw materials do you want to make pellets?

3. What kind of animal do you feed for? 4. What is the diameter do you want for the finished pellets?

5. What is the industrial voltage there? China is 380V 50HZ 3PHASE. Pls help to confirm whether they are same.
