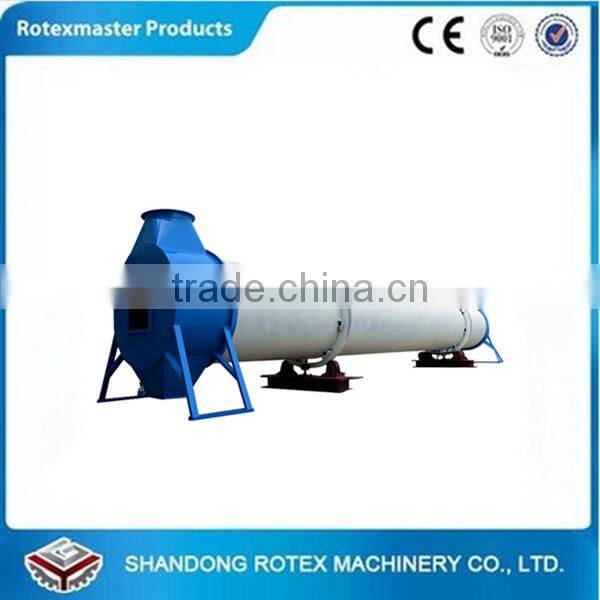

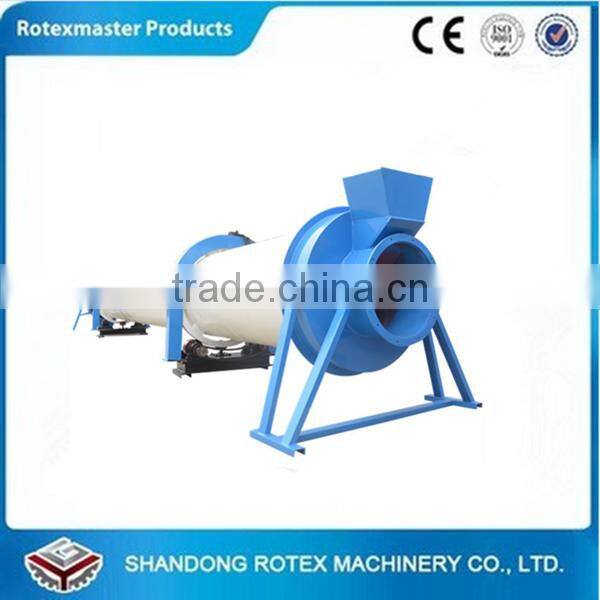

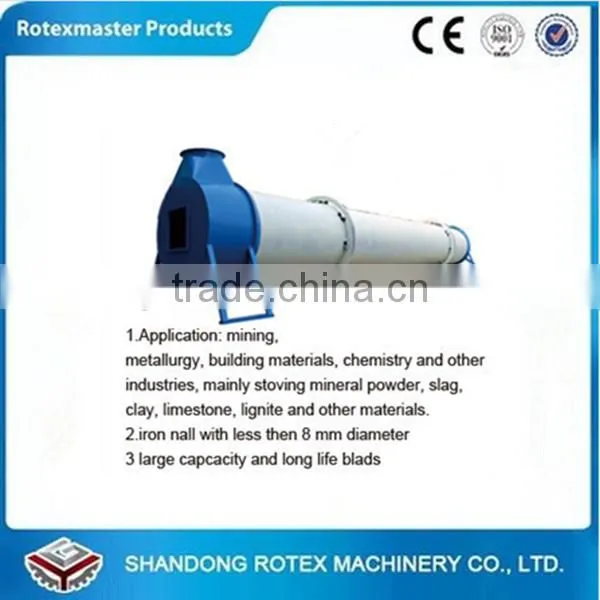

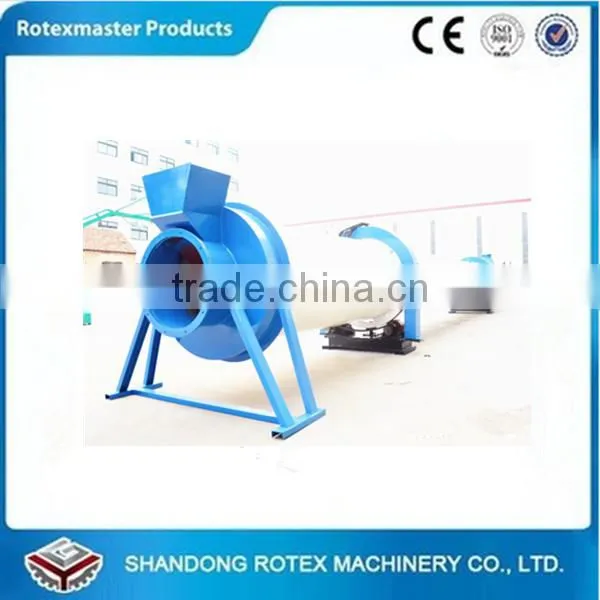

Introduction of rotary dryer
The principle of the rotary dryer is as follow: the hot air move forward from the tail, then full access with materials, through heat conduction, convertion, and radiation heat transfer. Then deliver heat to materials directly,.in this way, the material moisture content is evaporated constantly in the cylinder body. There is a fan blower in the tail, which can take out a large number of moisture evaporation, steam and dust, to prevent the repollution caused by dust discharging. The inside screw plate rotate make the material move too, until whole drying process finished.
Features of rotary dryer
1.The rotary speed is adjustable.
2. Simple structure.
3.The dryer can dry high moisture content and large volume materials.
4.There is elastic plate sealing strip in feed inlet and outlet.
5.There is lifting blade in the inner cylinder, it can make the material mixed with the heat flow fully.
6.It is matched with stove.
Technical parameters of rotary dryer
GHGφ | Power(Kw) | Evaporation | Gradient | Thickness
|
GHGφ1.2*12*1 | 5.5+7.5+3 | 0.27-0.54T/h | 3-5° | 10-12mm |
GHGφ1.5*12*1 | 7.5+18.5+4 | 0.42-0.85T/h | 3-5° | 10-12mm |
GHGφ1.5*18*1 | 5.5+18.5+4 | 0.42-0.85T/h | 3-5° | 10-12mm |
GHGφ1.8*12*1 | 7.5+18.5+4 | 0.8T/h | 3-5° | 10-12mm |
GHGφ1.8*12*3 | 11+30+4+4 | 1T/h | 3-5° | 10-12mm |
GHGφ1.8*18*1 | 11+22+4 | 1T/h | 3-5° | 10-12mm |
GHGφ1.8*24*1 | 11+30+4 | 1.22-2.44T/h | 3-5° | 14-18mm |
GHGφ2.0*24*1 | 11+37+7.5 | 1-3T/h | 3-5° | 14-18mm |
GHGφ2.2*12*1 | 11+22+4 | 1.2T/h | 3-5° | 14-18mm |
GHGφ2.2*12*3 | 11+45+4+4 | 1.5T/h | 3-5° | 14-18mm |
GHGφ2.2*24*1 | 15+37+5.5 | 1.82-3.65T/h | 3-5° | 14-18mm |
GHGφ2.5*18*1 | 15+30+4 | 1.5T/h | 3-5° | 14-18mm |
GHGφ2.5*24*1 | 15+37+5.5 | 2.36-4.71T/h | 3-5° | 14-18mm |
GHGφ2.8*12*1 | 18.5+30+4 | 1.8T/h | 3-5° | 20-24mm |
GHGφ2.8*12*3 | 22+55+5.5+5.5 | 1.8T/h | 3-5° | 20-24mm |
GHGφ2.8*24*1 | 22+45+5.5 | 2.95-5.91T/h | 3-5° | 20-24mm |
GHGφ3.0*11*1 | 18.5+45+4 | 1.5T/h | 3-5° | 20-24mm |
GHGφ3.0*12*3 | 22+55+7.5+5.5 | 2.5T/h | 3-5° | 20-24mm |
GHGφ3.0*24*1 | 22+45+7.5 | 3.39-6.78T/h | 3-5° | 20-24mm |
GHGφ3.5*24*1 | 37+75+7.5 | 4.62-9.23T/h | 3-5° | 20-24mm |
FAQ:
How to select the Rotary Drier Machine ?
1: What is your raw material?
2: What is Moisture content of raw material before drying?
3: What is Moisture Content of raw material after drying?
4: What is the fuel such as coal, waste wood, natural gas, diesel, etc?
5: What is your Industrial Voltage(3 phase) and Current Frequency(HZ)?
Company information:
Shandong Rotex mechinary co., ltd, an professional manufacturer in boimass fuel machinary for 8 years, with main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment and other auxiliary equipments.
Our team
Our Service:
Pre-purchase service: design suitable plan for you according your material shape, size and moisture content. with less cost but biggest efficiency.
During-purchase service: control quality, delivery intime
After-purchase service: if you ask,to your place to guide installation and degug and train your operator.
Exhibition
Any interest, pls contact me. BEST SOLUTION will be supplied as per your request!
