Breif introduction of counter flow cooler
counter flow pellet cooler is used to cool 2-8mm diameter pellets. the pellet before cooled, 60-80℃ above room temperature, after cooled, it will be +3-5 ℃ above.

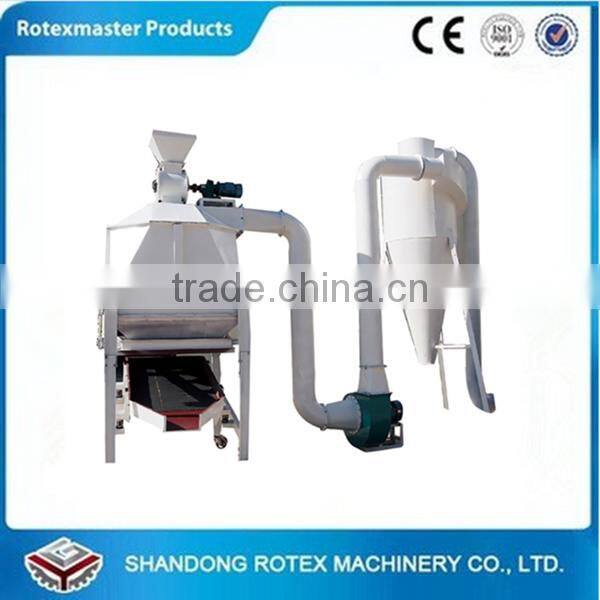

counter flow pellet cooler generally works with cyclone and air fan, air lock. which is used to absorb cold air and clean dust, also it c an installa screene r at t he cooler bottom, which can separate powder dust and good pellets
cold air goes to cooler from bottom to top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pile up at the cooler bottom, cold air will cool pellets at the bottom gradually, in this way will reduce pellet broken situation.
Features of counter flow cooler
1: Shut down automatic nesting with the unique effect, to avoid cross-contamination between feed.
2: Unique nesting box nesting force.
3: SKLN series with the secondary spiral separator used in combination.
4: Speed adjustable which ensures smooth discharge.
5: Unique rotating device for spreading pellets ensures the pellets well-distributed and totally cooled,
reduces crashing of pellets obviously.
Technical parameters of counter flow cooler
Model |
Output (T/h) |
Cooling volume (m3) |
Cooling time (min) |
Material temperature after cooled(℃) |
Power (Kw) |
air draft volume (m3/h) |
YSKLN1.2 |
0.8-1.2T/H |
1.2 |
≥10min |
Room temperature +3-5℃ |
0.18+4 |
5000m3/h |
YSKLN1.5 |
1.2-2T/h |
1.5 |
≥10min |
Room temperature +3-5℃ |
0.25+5.5 |
9000m3/h |
YSKLN2.5 |
2-4T/h |
2.5 |
≥10min |
Room temperature +3-5℃ |
0.25+15 |
13500m3/h |
YSKLN4 |
4-6T/h |
4 |
≥10min |
Room temperature +3-5℃ |
0.37+22 |
18000m3/h |
YSKLN6 |
5-8T/h |
6 |
≥10min |
Room temperature +3-5℃ |
0.37+37 |
27000m3/h |
Company information:
Shandong Rotex mechinary co., ltd, an professional manufacturer in boimass fuel machinary for 8 years, with main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment and other auxiliary equipments.
Exhibition
Our team
Our Service:
Pre-purchase service: design suitable plan for you according your material shape, size and moisture content. with less cost but biggest efficiency.
During-purchase service: control quality, delivery intime
After-purchase service: if you ask,to your place to guide installation and degug and train your operator.
any interest, pls contact me. BEST SOLUTION will supplied as per your request!
