Counter Flow Cooler for Cooling Feed or Fuel Pellets

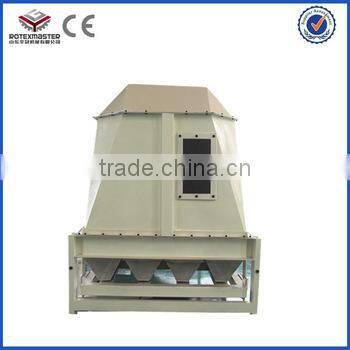

Counter Flow Cooler for Cooling Feed or Fuel Pellets photo-1

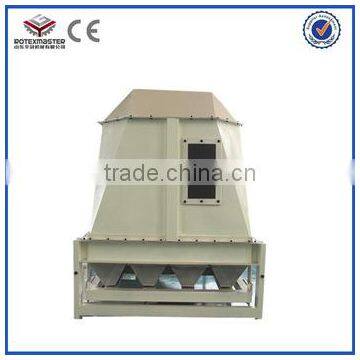

Counter Flow Cooler for Cooling Feed or Fuel Pellets photo-2
US$ 6,500 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
rotexmaster
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name rotexmaster
Model Number SKLN-1.5
Type Other, Feed Pellet Machine, cooler
Voltage 220V/380V
Power(W) 1.5+1.5kw
Certification CE ISO SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

 Counter Flow Cooler for Cooling Feed or Fuel Pellets

Introduction of Counter Flow Feed Cooler :

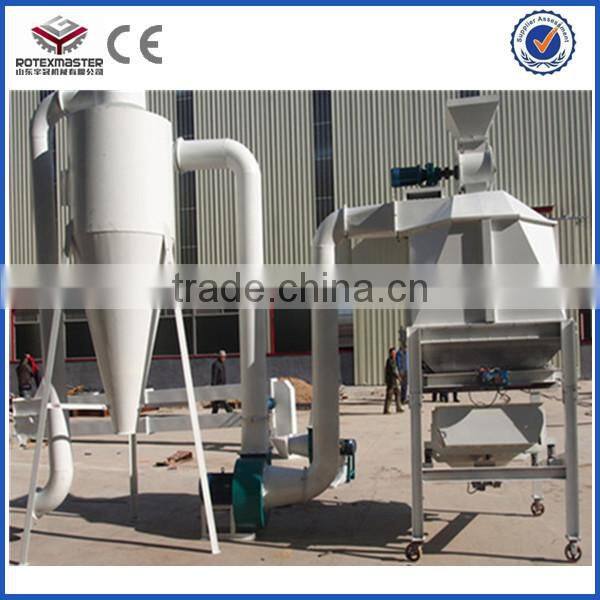

1.It includes cooling system, cyclone separator, fan, airlock, pipe and screen;

2.Speed adjustable which ensures smooth discharge.

3.Unique rotating device for spreading pellets ensures the pellets well-distributed and totally cooled, reduces crashing of pellets obviously.

4.Applied to cool a variety of materials, such as pellets, extruded materials, expansion materials, pressure-chip material, powder, etc,  especially extruded materials, expansion materials.

Counter Flow Cooler for Cooling Feed or Fuel Pellets



Feature of Counter Flow Feed Cooler :

Counter Flow Cooler for Cooling Feed or Fuel Pellets





1. After cooling pellets temperature don’t exceed room temperature +3-+5°C.



2. Shut down automatic nesting with the unique effect, to avoid cross-contamination between feed.



3. Unique nesting box nesting force.



4. SKLN series with the secondary spiral separator used in combination.



5. Suitable for cooling a variety of pellets material.

Counter Flow Cooler for Cooling Feed or Fuel Pellets



Standard Models of Counter Flow Feed Cooler



Model

Power(kw)

Cool volume()

Output (t/h)

Air volume(m³/h)

Dimension(mm)

YSKLN1.2

0.18+1.1+5.5

1.2

0.8-1.2

5000

1570x1200x2470

YSKLN1.5

0.25+1.5+7.5

1.5

1.2-2

9000

1556x1600x2505

YSKLN2.5

0.25+2.2+18.5

2.5

2-4

13500

2100x1966x2870

YSKLN4

0.37+3+30

4

4-6

18000

2300x2150x3190

YSKLN6

0.37+4+45

6

5-8

27000

3300x2146x3722



After-sales service:



--Devote to all round service of all the products from shipment to maintenance;



--Professional service: free training, guidance,installation,and debugging;



--After selling, we provide the warranty of one year,and any time you need our help,we'll be very glad to render a service;



--Any problems will be solved on line through the communication with our technician or live in time through the local agent;



--Authorized oversea agents are also engaged in serving.

we have professional sales and after sales service .

Counter Flow Cooler for Cooling Feed or Fuel PelletsCounter Flow Cooler for Cooling Feed or Fuel Pellets
