Drum Dryer Hot Selling In USA, Russin, Ghana, Malaysia

FOB Price

USD $3,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port QIngDao TianJin
Payment TermsL/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drying Equipment
Place of Origin	Henan, China	Brand Name	KeHua, KeHua
Model Number	Many Model	Voltage	380V
Power(W)	4-75 KW	Weight	3-150
Certification	CE, ISO9001-2008	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. High Performance
2. High Capacity
3. Professional Manufacture
4. Export More than 30 Countrys

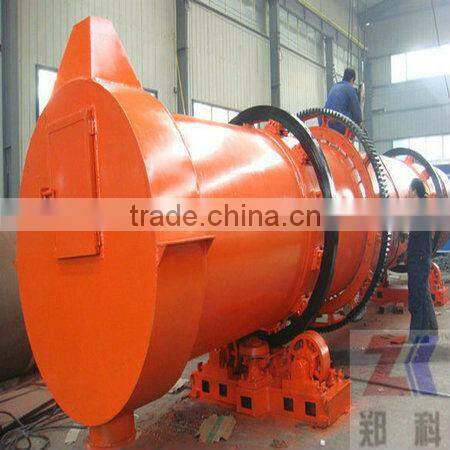

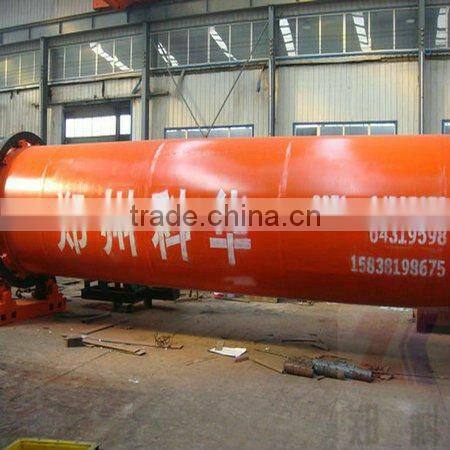

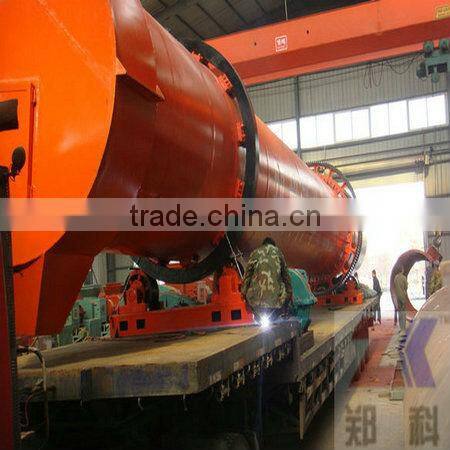

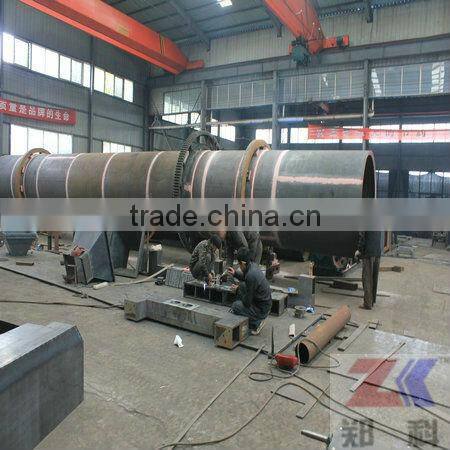

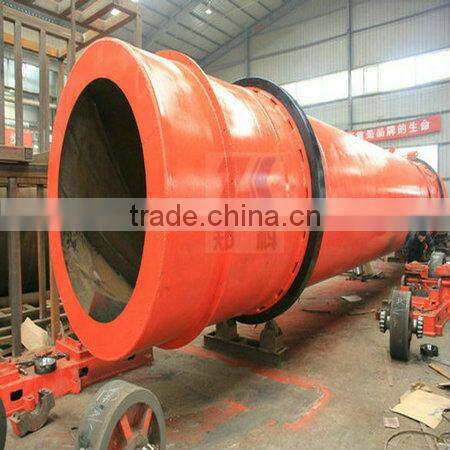

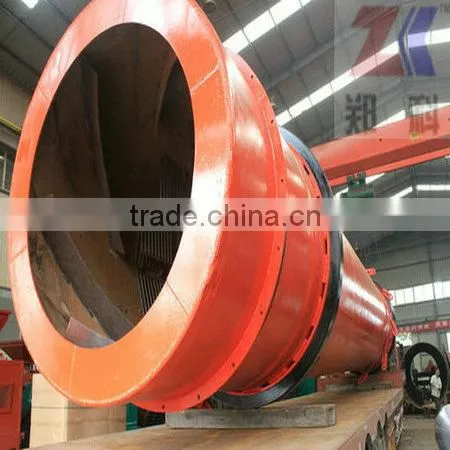

Drum Dryer

Skype: zkbm1998

Application of Drum Dryer:

Drum Dryer optimize the design for a wide range of low moisture content available.Sand finished and drying

with excellent results. Drum dryer is widely used in sand and building sand drying, successfully applied to the

dry mortar, construction, new materials and other industries.

Structure of Drum Dryer:

Drum Dryer consist of the cylinder, roll around the ring, gear, gear roll, drag roller, a small gear, a feeding

device, lifting plate, reducer, motor, feeding devices, components, design of combustion according to user

needs Furnace, the combustion chamber, bucket elevator, belt conveyor, feeder, dust and other system equipment.

Working Principle of Drum Dryer:

Wet material from the belt conveyor or bucket elevator to the hopper, and then by feeder feeding through

the feeding device into the terminal.Drum Dryer cylinder into a slightly tilted to the horizontal rotating

cylinder. Adding material from the higher end, lowend entry by the heat carrier, and the material into a

countercurrent contact, but also heat carrier and the material together and flow into the cylinder. With

the rotating cylinder, the material runs by gravity to a more bottom end. Wet material in the cylinder body to move

forward the process, directly or indirectly heating the heat carrier, the wet material to dry, and then the

discharge end by the belt conveyor or screw conveyor sent. Tumble dryer wall of the cylinder body with

lifting plate, its role is to copy the material up and planted, so that the surface of the material increases the

contact with the air flow to improve drying rate and to promote material progress. Heatcarrier is generally

divided into hot air, flue gas. After heatcarrier around cylinder dryer back then, generally require cyclone trap

the gas inside the material brought down. For further reduction of dust content in exhaust gas should be handled

hrough the bag filter befor discharge.

Main Technical Parameters:

Model	Gradient (°)	Speed (R/min)	Volume (m³ )	Power (kw)	Capacity (t/h)	Weight (t)
Φ0.6×8m	3-5	8	2.26	4	1-3	2.9
Φ0.8×10 m	3-5	7.2	5.02	4	4-6	4.5
Φ1.0×10 m	3-5	6.73	7.85	5.5	5-8	5.6
Φ1.2×12 m	3-5	5.8	13.31	11	8-12	14.8
Φ1.5×12 m	3-5	4.8	21.2	15	10-15	17.8
Φ1.8×14 m	3-5	3.2	48.22	30	12-18	27
Φ2.2×18 m	3-5	3	70.43	37	15-20	53.8
Φ2.4×20 m	3-5	2.83	90.43	45	20-25	60
Φ2.8×24 m	3-5	2.59	147.8	75	25-30	67
Φ3×20 m	3-5	1.5-5	141.3	55	25-35	78
Φ3×25 m	3-5	1.5-5	176.6	75	32-40	104
