Specifications
1. Efficiency Increased 30%2. More Than 30 Years Experience
3. Easy Operation and Maintence
4. One Year Guarantee
Rotary Dryer
Skype: zkbm1998
Rotary Dryer Introduce:
We can supply two types of dryer: rotary drier machine and hot airflow type.
rotary drier shows the features of perfect drying effect, easy operation, high efficiency and easy control of drying. It takes advantage of the stability of roller and homogeneity of air. This equipment makes the combination of roller and pipes which increase the drying strength and reduce the manual power. This is the ideal equipment for drying raw materials with high humility.
Usage Of Rotary Dryer Machine:
rotary dryer machine is used for drying materials with a certain humidity or granularityin milling of food ,chemical ,ores, building materials, metallurgy and chemical industry. rotary dryer machine has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable. So this kind of rotary dryer machine has playing important role in various industries .rotary dryer machine is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. rotary dryer machine can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
Working Principle of Rotary Dryer Machine:

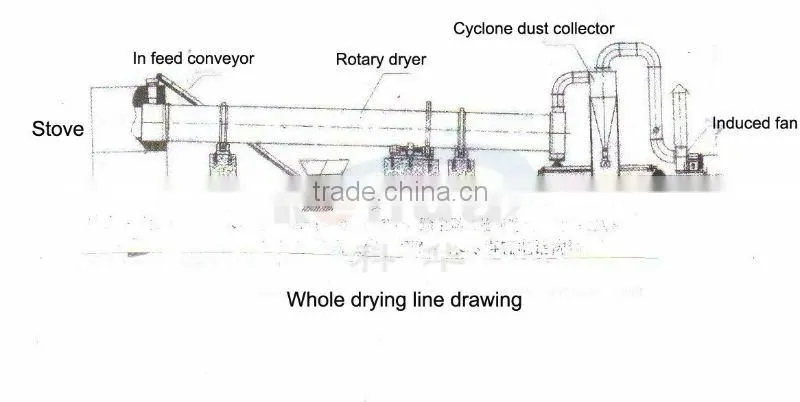

rotary dryer machine is consist of heating device,feeding device ,transport device,discharge device,dust extraction device and other connecting parts . For the installation process , the rotary dryer machine should slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the rotary dryer machine under gravity . Material to be dried enters the rotary dryer machine , and as the rotary dryer machine rotates, the material is lifted up by a series of internal fins lining the inner wall of the rotary dryer machine . When the material gets high enough to roll back off the fins, it falls back down to the bottom of the rotary dryer machine , passing through the hot gas stream as it falls.
Main Technical Parameters:
Model | Gradient (°) | Speed (R/min) | Volume (m³ ) | Power (kw) | Capacity (t/h) | Weight (t) |
Φ0.6×8m
| 3-5 | 8 | 2.26 | 4 | 1-3 | 2.9 |
Φ0.8×10 m
| 3-5 | 7.2 | 5.02 | 4 | 4-6 | 4.5 |
Φ1.0×10 m
| 3-5 | 6.73 | 7.85 | 5.5 | 5-8 | 5.6 |
Φ1.2×12 m
| 3-5 | 5.8 | 13.31 | 11 | 8-12 | 14.8 |
Φ1.5×12 m
| 3-5 | 4.8 | 21.2 | 15 | 10-15 | 17.8 |
Φ1.8×14 m
| 3-5 | 3.2 | 48.22 | 30 | 12-18 | 27 |
Φ2.2×18 m | 3-5 | 3 | 70.43 | 37 | 15-20 | 53.8 |
Φ2.4×20 m
| 3-5 | 2.83 | 90.43 | 45 | 20-25 | 60 |
Φ2.8×24 m
| 3-5 | 2.59 | 147.8 | 75 | 25-30 | 67 |
Φ3×20 m
| 3-5 | 1.5-5 | 141.3 | 55 | 25-35 | 78 |
Φ3×25 m
| 3-5 | 1.5-5 | 176.6 | 75 | 32-40 | 104 |
