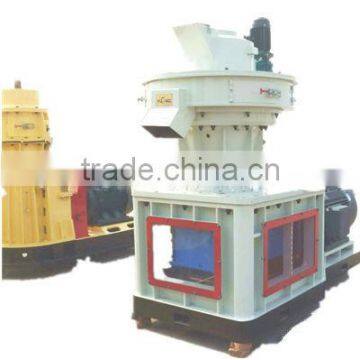

XJ580 1.5T Palm Making Machine/Wood Pellet Production line

Specifications

1.-Rated Power:160KW
2.-Output:2~2.5T/Hr
3.-Processing size:4~12mm
4.-Palm Pellet Mill
5.-OEM and ODM

XJ580 1.5T Palm Making Machine /Wood Pellet Production line 2.5T/Hr



Specifications



Model	Output (T/Hr)	Power (KW)	Processing Size (mm)	Weight (kg)	Overall Size (mm)
XGJ550	0.8~1.2	75	4~12mm	6040	2630*100*2400
XGJ560	1~1.5	90	4~12mm	6100	2600*1300*2300
XGJ580	1.5~2.5	160	4~12mm	7000	2900*1300*2400
XGJ850	2.5~3.5	220	4~12mm	14500	3300*1400*3100
XGJ880	3~5	315	4~12mm	18000	3800*1680*3400
XGJ1050	5~8	360~450	4~30mm
XGJ1250	8~12	550~660	4~30mm







Features:



1. - Vertical mould, vertical feeding, no arc, and easy heat dissipation



2. – Molding still, press shaft rotation, material centrifugal to make materials evenly distributed.



3. – Mould in two layers, dual usages, high productivity and energy-saving.



4. – Independent lubrication, high pressure filtration

5. – Independent frequency conversion device, to ensure the forming rate of particles.







XGJ series centrifugal pellet mill absorbs the advantages of worldwide pellet making machine, and designed with “double-layer die” structure; The pinch roller is made of high alloy wearresistant materials. Transmission system oil filters automatically, and in good lubrication. This mill has the features of unique design, rational structure, low consumption high efficiency, sturdy and durable, and fill up the gap of round molding vertical feeding technology.





This pellet mill is suitable for pressing the materials which is hard bonding, difficult forming, such as the shells of rice husk, sunflower seed, wood fiber materials of branches, tree trunk, bark, tree, ect, crop straws; chemical materials of rubber ,cement, ash. It is widely used in biomass fuel factory, power plant, wood processing plant, fertilizer plant, chemical factory.



Biomass Pellet Production Line





Attentions:

The configuration is devided into simple and standard

To make a detailed configurations,pls tell us:

1.-What kind of raw materials?

2.-Water content?

3.-Output per hour?
