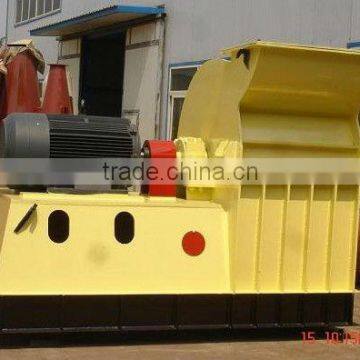

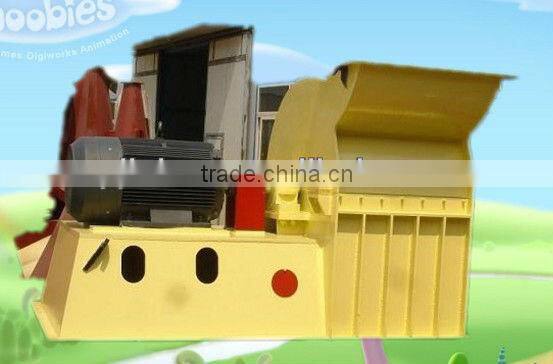

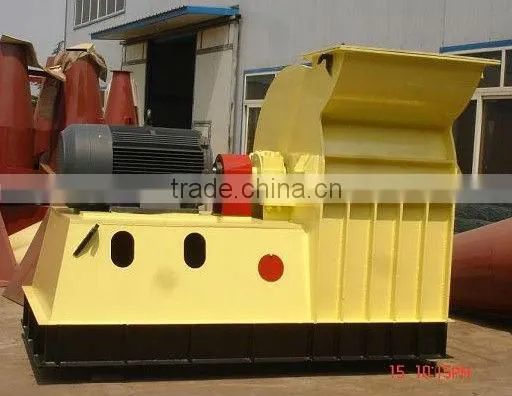

Multifuctional Wood Powder Hammer Mill/Wood Strip Crusher for Wood Powder

Specifications

1.-Model:SG65*75
2.-Electric Power:75KW
3.-Output:2~3T
4.-Hammer blade:72pcs
5.-OEM and ODM

Multifuctional Wood Hammer Mill/Wood Strip Crusher fow Wood Powder

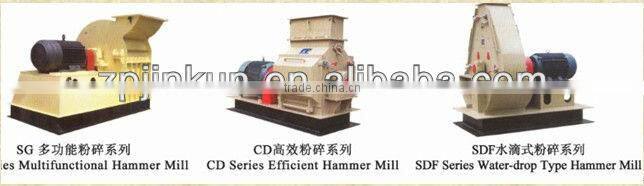

JINKUN SG Series 40,50,65 and 130 multifunctional hammer mill is equipped with water cooling device, mainly used for crushing scrap rubber, PVC foamed board and a variety of wood, straw, rank grass, ect. This machine has features of rational structure, sturdy and durable, safety and reliability, convenient operation, low vibration, and high efficiency.



It is widely used in the industry of biofuels, electricity station, feed, organic fertilizer, Chinese medicine, cultivation, and chemical.



Model	Output (T/Hr)	Power (KW)	Weight (kg)	Hammer blade No’s (PCS)	Overall Size (mm)	Remarks
SG40	0.2~0.5	7.5	270	12	1310*800*1070	5mm, optional
SG50	0.6~0.8	15	450	16	1380*1300*1010
SG65*27	0.8~1.5	22	1100	24	1500*1000*1100	6mm, optional
SG65*55	1~2	37~45	1500	48	1700*1000*1100
SG65*75	2~3	55~75	1900	72	2100*1000*1100
SG65*100	3~4	90~110	2300	90	2400*100*1100
SG130*55	5~6	130~160	5300	80	2800*1620*2100
SG130*100	7~8	160~220	6800	160	3020*1620*2170





The hammer mills can be used by two methods---positive pressure and negative pressure.

The negative pressure use which match with fan blower, cyclone, air lock, electricity control

cabinet and so on. This grinding system can use bags to collect dust in the grinding process.

And the positive pressure use which the fan blower will install before the cyclone, usually used

in the pellet making line.



The hammer mill capacity will depend on the material moisture content and the size of the

 finished product you demand. The following capacity in the form is on base of making 6mm size

products.
