Zouping Jinkun Plastic Pellet Machine

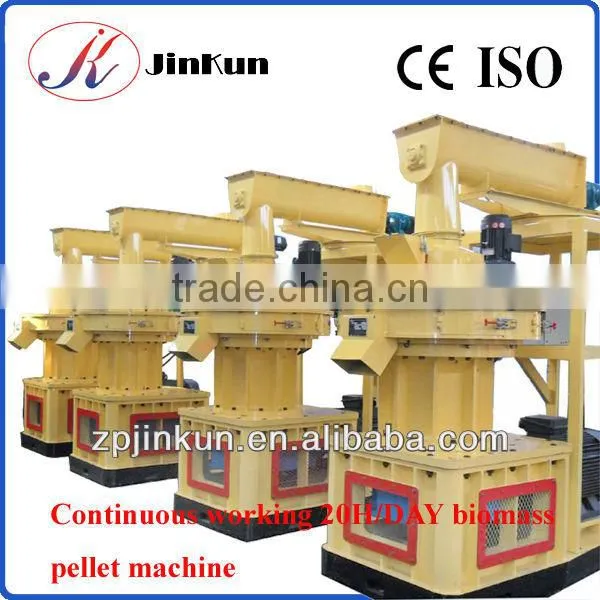

Zouping Jinkun Plastic Pellet Machine photo-1

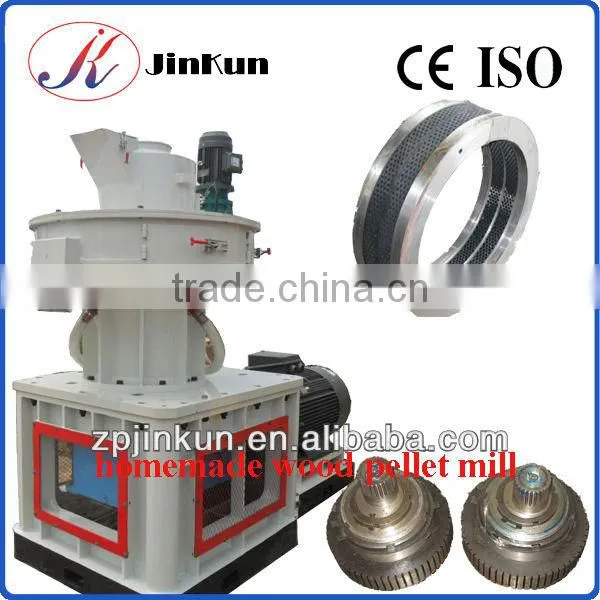

Zouping Jinkun Plastic Pellet Machine photo-2
Zouping Jinkun Plastic Pellet Machine photo-3

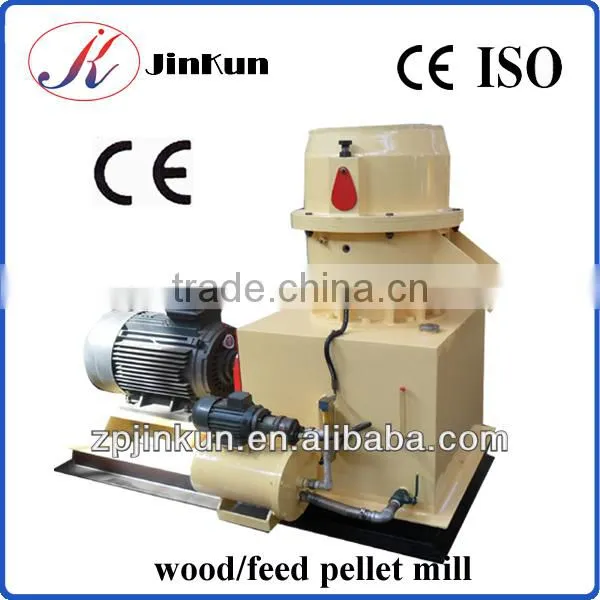

Zouping Jinkun Plastic Pellet Machine photo-4

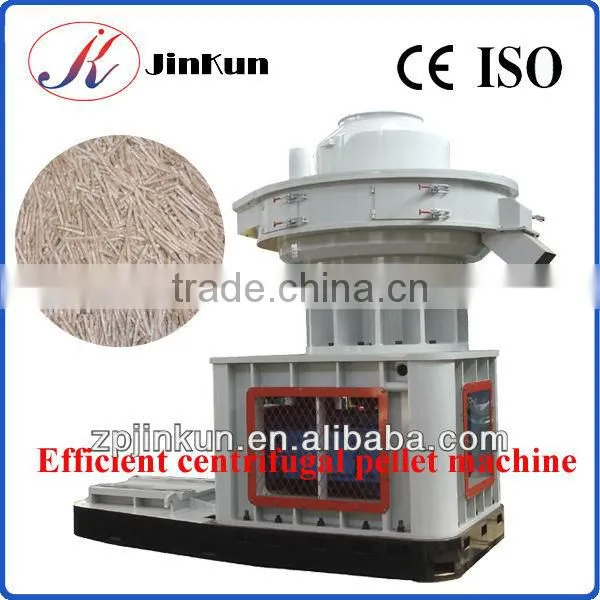

Zouping Jinkun Plastic Pellet Machine photo-5

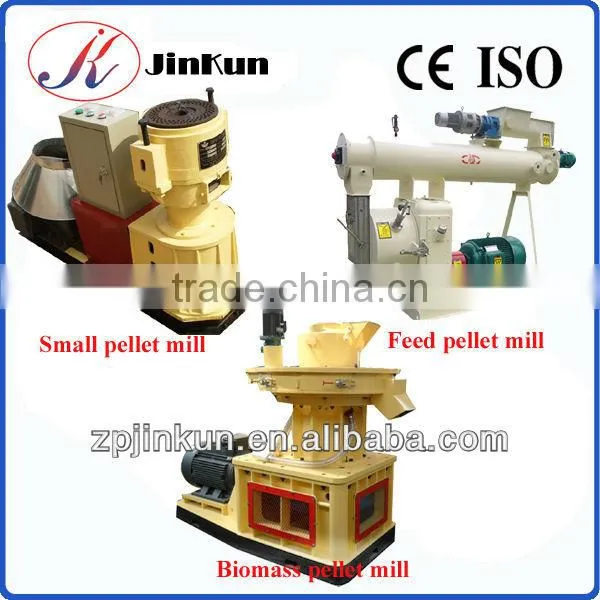

Zouping Jinkun Plastic Pellet Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JK machinery
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name JK machinery
Model Number JK560
Voltage 220V/380V
Power(W) 90KW
Dimension(L*W*H) 2600*1300*2300mm
Weight 6.1t
Certification ISO,CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Plastic pellet machine,ISO,CE
1.-Rated Power: 75KW
2.-Output:1T/Hr
3.-Processing size:4~12mm
4.Complete pellet line

Zouping Jinkun plastic pellet machine CE certification is detailed as follows:



Specifications of pellet mill:



Model

Output

(T/Hr)

Power

(KW)

Processing Size

(mm)

Weight

(kg)

Overall Size

(mm)

JK450

0.4~0.7

55

4~12mm

2100

2630*100*1600

JK560

1~1.5

90

4~12mm

6100

2600*1300*2300

JK580

1.5~2.5

160

4~12mm

7000

2900*1300*2400

JK850

2.5~3.5

220

4~12mm

14500

3300*1400*3100

JK880

3~5

315

4~12mm

18000

3800*1680*3400

JK1050

5~8

360~450

4~30mm





JK1250

8~12

550~660

4~30mm







Features:

1. - Vertical mould, vertical feeding, no arc, and easy heat dissipation

2. – Molding still, press shaft rotation, material centrifugal to make materials evenly distributed.

3. – Mould in two layers, dual usages, high productivity and energy-saving.

4. – Independent lubrication, high pressure filtration

5. – Independent frequency conversion device, to ensure the forming rate of particles.



This pellet production line including the dryer, the wood chipper, the hammer mill, the pellet mill, the cooler, the screener, the packing machine and so on.



This pellet mill is suitable for pressing the materials which is hard bonding, difficult forming, such as the shells of rice husk, sunflower seed, wood fiber materials of branches, tree trunk, bark, tree, ect, crop straws; chemical materials of rubber ,cement, ash. It is widely used in biomass fuel factory, power plant, wood processing plant, fertilizer plant, chemical factory.

  Zouping Jinkun plastic pellet machine

Zouping Jinkun plastic pellet machine

Zouping Jinkun plastic pellet machine Zouping Jinkun plastic pellet machine

Zouping Jinkun plastic pellet machine

Zouping Jinkun plastic pellet machineZouping Jinkun plastic pellet machineZouping Jinkun plastic pellet machineZouping Jinkun plastic pellet machineZouping Jinkun plastic pellet machine



 Attentions:

The configuration is devided into simple and standard

To make a detailed configurations,pls tell us:

1.-What kind of raw materials?

2.-Water content?

3.-Output per hour?
