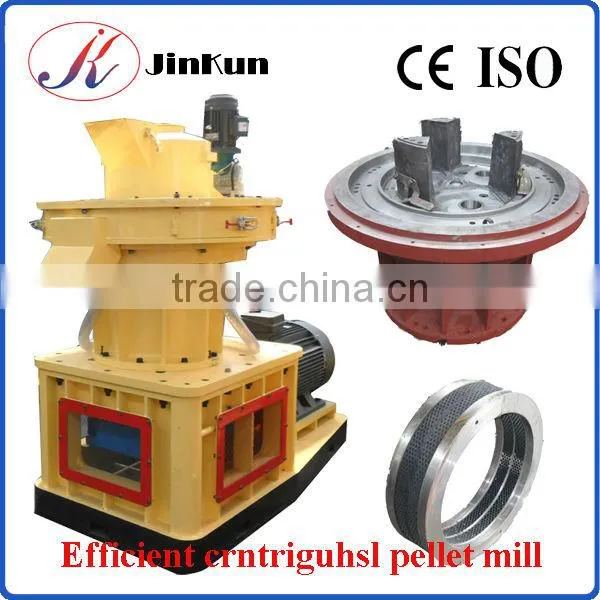

Biomass Fuel Pellet Press Mill Used Wood Pellet Mill

Specifications

 Jinkun used wood pellet mill  (1-1.5 ton per hour) is detailed as follows:

                                                      JK560 complete pelet mill production line

                                                                Output capacity:1-1.5t/h

                                                      Diameter:4-12mm

                                                                Power:90KW

                                                      Weight:6.1t

                                                               Size:2600*1300*2300mm

Brief introduction of pellet mill:

JK series centrifugal pellet mill absorbs the advantages of worldwide pellet making machine, and designed with “double layer die” structure; The pinch roller is made of high alloy wear resistant materials. Transmission system oil filters automatically,

 and in good lubrication. This mill has the features of unique design, rational structure, low consumption high efficiency, sturdy and durable,

 and fill up the gap of round molding vertical feeding technology.

Main feature of pellet mill:

1.Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.

2.Die fixed,rollers rotating,materials centrifugal,evenly distributed around.

3.Double-layer dies,up and down dual-use,high capacity,saving energy.

4.Independent lubrication;high pressure filtration,clean and unblocked.

5.Independent and frequency changeable cutting device,ensure formation rate of pellets.

 Application:

The equipments is applied to the material with low adhesiveness and low shaping.

Material:rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical material.

Industry:It is used in the biomass energy fuels plant,power plant,wood processing plant,fertilizer plant,chemical plant etc.It is the ideal pressing shaping equipments with low
