Home > Products > Biomass burner > Automatic Power Saver Biomass Wood Pellet Burner Professional Supplier

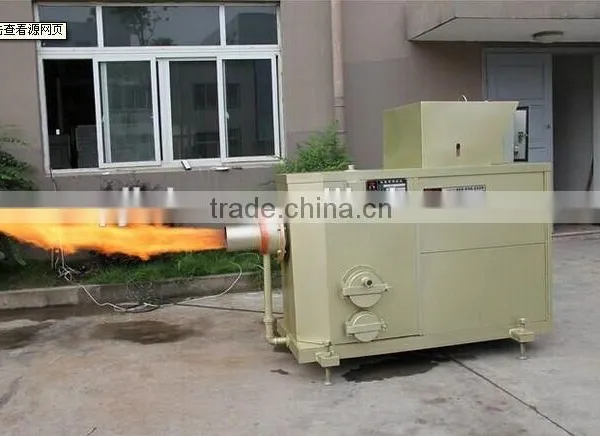

Automatic Power Saver Biomass Wood Pellet Burner Professional Supplier
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | BOCHENG |
Model Number: | BC60 | Voltage: | 220V/380V | Power(W): | 60-100kw |
Weight: | 500kg | Dimension(L*W*H): | 1200*500*1500mm | Certification: | CE ISO SGS |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Power Saver Biomass Wood Pellet Burner Professional Supplier
1.Introduction:
Our biomass pellet burner adopts the most mature combustion technology and semi-gasification compound combustion technology, it has the features of reasonable structure, automatic feeder, fully combustion rate, high thermal efficiency, pollution-free, low- emission, compact structure, easy for installation, small occupied area, low operation cost, etc., which can replace other fuel fired burner.
2.Main Features:
l Energy efficient and high efficiency
l Clean combustion technology and low-carbon environmental protection
l Simple operation and convenient maintenance
l Compact structure and attractive appearance.
3.Main parameters of burner:
Rated capacity: 480*104Kcal/h
Grate type:Circular type chamber combustion
Control mode:PLC intelligent automatic control
Burn-out efficiency:≥96%
Pellet consumption amount: 400-1200Kg/h
Rated power: 240V
4.Automatic PLC control system:
Unique man-machine conversation function, large size intelligent touch screen, this system include:
Automatic ventilation feature for combustion chamber;
Automatic feeding system;
Automatic ignition system;
Ignition micro blow-in procedure;
Blow-in and induced air joint procedure;
Strong and soft fire self-regulation procedure;
Safe operation interlocking protection procedure;
Halt protection procedure;
Various alarm procedures.
5.Application:
The biomass pellet burner is applicable for spray coating line, steam boiler, hot water boiler, organic heat carrier boiler, die-casting, industrial furnace, drying equipment, greenhouse and other energy-saving renovation project.
6.Technical Data:
Model | Rated Power (kw) | Fuel Consumption (kg) | Board Dimension (L * W * H) (mm) | Diameter of Outlet Fire (mm) | Net Weight (kg) |
BC60 | 60-100 | 13-22 | 1200*500*1500 | 160 | 500 |
BC120 | 120-280 | 26-62 | 1200*500*1500 | 160 | 600 |
BC300 | 300-450 | 66-100 | 1400*5400*1500 | 200 | 750 |
BC500 | 500-750 | 110-160 | 1400*540*1500 | 200 | 1000 |
BC800 | 800-1150 | 177-250 | 1800*600*1500 | 380 | 1200 |
BC1200 | 1200-1550 | 266-344 | 1800*600*1500 | 380 | 1200 |
BC1600 | 1600-2350 | 355-522 | 2000*1000*1500 | 400 | 1400 |
BC2400 | 2400-2950 | 533-655 | 2000*1000*1500 | 500 | 1700 |
BC3000 | 3000-4000 | 666-888 | 2600*1000*1500 | 670 | 2000 |
BC4000 | 4000-5900 | 888-1311 | 2600*1200*1550 | 670 | 2400 |
BC5000 | 5000-6900 | 1111-1500 | 2600*1200*1550 | 670 | 2800 |
BC6000 | 6000-7900 | 1333-1755 | 2800*1300*1600 | 700 | 3200 |
BC7000 | 7000-8900 | 1555-1977 | 3000*1500*1700 | 800 | 4000 |
BC8000 | 8000-9900 | 1777-2200 | 3000*1500*1700 | 800 | 4400 |
The rates voltage of small Burner is 220v or 380v; the FTL1200 to FTL8000 must be 380v. |
7.Customer's factory visit:
8.Contact:
