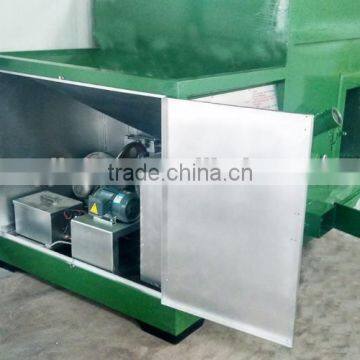

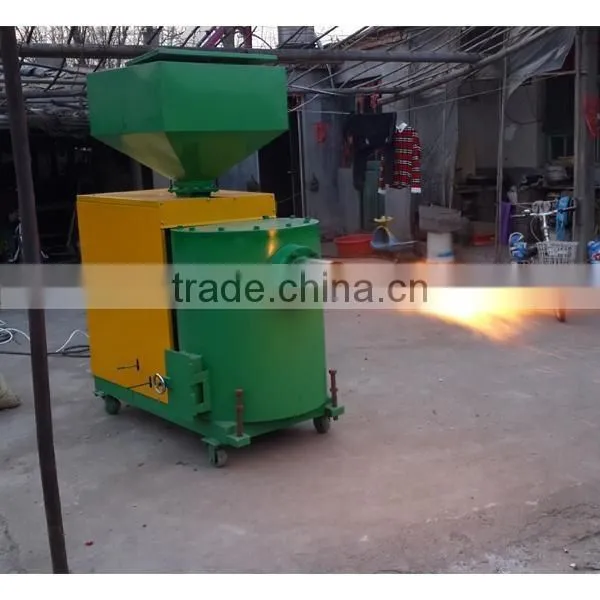

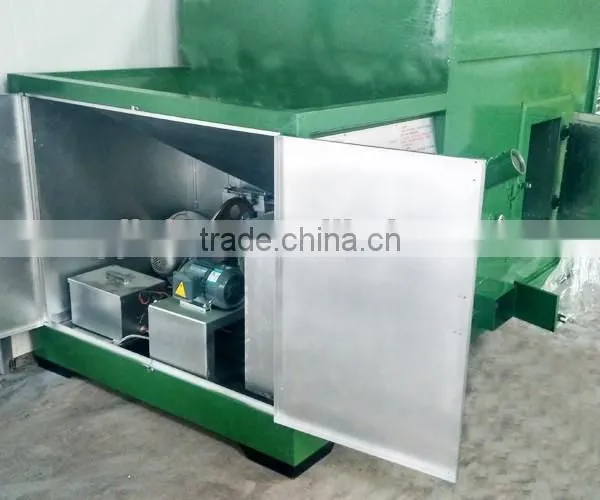

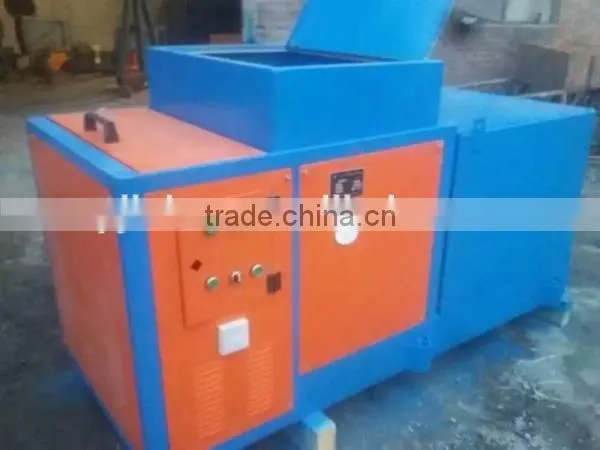

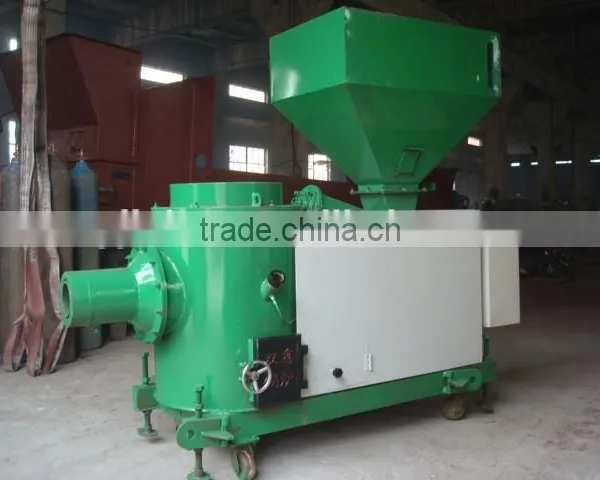

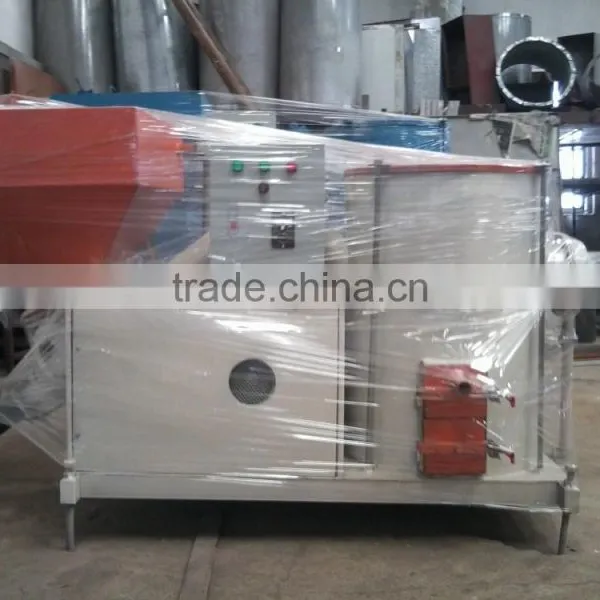

wood Pellet biomass Burner / biomass gasifier for Drying
1.Introduction:
Our biomass pellet burner adopts the most mature combustion technology and semi-gasification compound combustion technology, it has the features of reasonable structure, automatic feeder, fully combustion rate, high thermal efficiency, pollution-free, low- emission, compact structure, easy for installation, small occupied area, low operation cost, etc., which can replace other fuel fired burner.
2.Main Features:
l Energy efficient and high efficiency
l Clean combustion technology and low-carbon environmental protection
l Simple operation and convenient maintenance
l Compact structure and attractive appearance.
3.Main parameters of burner:
Rated capacity: 480*104Kcal/h
Grate type:Circular type chamber combustion
Control mode:PLC intelligent automatic control
Burn-out efficiency:≥96%
Pellet consumption amount: 400-1200Kg/h
Rated power: 240V
4.Automatic PLC control system:
Unique man-machine conversation function, large size intelligent touch screen, this system include:
Automatic ventilation feature for combustion chamber;
Automatic feeding system;
Automatic ignition system;
Ignition micro blow-in procedure;
Blow-in and induced air joint procedure;
Strong and soft fire self-regulation procedure;
Safe operation interlocking protection procedure;
Halt protection procedure;
Various alarm procedures.
5.Application:
The biomass pellet burner is applicable for spray coating line, steam boiler, hot water boiler, organic heat carrier boiler, die-casting, industrial furnace, drying equipment, greenhouse and other energy-saving renovation project.
6.Technical Data:
Model |
Rated Power (kw) |
Fuel Consumption (kg) |
Board Dimension (L * W * H) (mm) |
Diameter of Outlet Fire (mm) |
Net Weight (kg) |
BC60 |
60-100 |
13-22 |
1200*500*1500 |
160 |
500 |
BC120 |
120-280 |
26-62 |
1200*500*1500 |
160 |
600 |
BC300 |
300-450 |
66-100 |
1400*5400*1500 |
200 |
750 |
BC500 |
500-750 |
110-160 |
1400*540*1500 |
200 |
1000 |
BC800 |
800-1150 |
177-250 |
1800*600*1500 |
380 |
1200 |
BC1200 |
1200-1550 |
266-344 |
1800*600*1500 |
380 |
1200 |
BC1600 |
1600-2350 |
355-522 |
2000*1000*1500 |
400 |
1400 |
BC2400 |
2400-2950 |
533-655 |
2000*1000*1500 |
500 |
1700 |
BC3000 |
3000-4000 |
666-888 |
2600*1000*1500 |
670 |
2000 |
BC4000 |
4000-5900 |
888-1311 |
2600*1200*1550 |
670 |
2400 |
BC5000 |
5000-6900 |
1111-1500 |
2600*1200*1550 |
670 |
2800 |
BC6000 |
6000-7900 |
1333-1755 |
2800*1300*1600 |
700 |
3200 |
BC7000 |
7000-8900 |
1555-1977 |
3000*1500*1700 |
800 |
4000 |
BC8000 |
8000-9900 |
1777-2200 |
3000*1500*1700 |
800 |
4400 |
The rates voltage of small Burner is 220v or 380v; the FTL1200 to FTL8000 must be 380v. | |||||
7.Customer's factory visit:
8.Contact:
