Pharmaceutical industry use oscillating screen multilayers separator
- 100 Set / Sets per Month
- Dalian Qingdao Dalian Lianyungang Shanghai and all inland ports
- T/T L/C D/P D/A Credit Card PayPal
- Energy saving mobile multilayers sieving machine for agriculture/food/salt
- Professional manafacture filter screen metal vibration screen price in india
- Factory direct sale metallurgy/sand multilayers sieving machine for sale
- High efficiency grading vibrating shaker for aluminium
- Large capacity refractory materials mobile linear vibrating filter screen
- Durable trommel kaolin/limestone double deck vibrating screen for sale
Product Details
Condition: | New | Type: | Linear | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | Hongyun | Model Number: | 3YK-1535 |
Voltage: | Request | Power(W): | 11kw | Dimension(L*W*H): | 4360*2210*1610mm |
Weight: | 6700kg | Certification: | CE ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
According to the customer's requirements.
Product Description
Pharmaceutical industry use oscillating screen multilayers separator

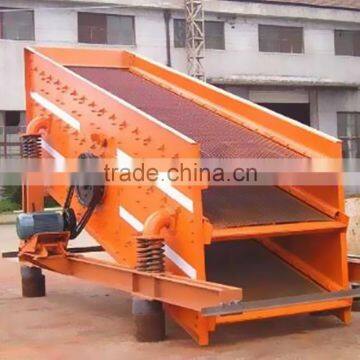

Description | Vibrating screen is a kind of equipment applied more widely, mainly composed of vibrator, screen box, bearing or suspension,transmission and so on.It uses the strong vibratory force of itself running to make the material do vibrating and throwing sports on the screen so as to achieve the using effect ofscreening.It can adjust the size of the screen according to the particle size of materials, thus meet the screen demand of different materials. In the process of the use of the machine, we can strengthenscreening accuracy according to the user's demand, improve the screening effect of the material thoughthickening screen mesh layer to achieve uniform specifications of screening. It has widely applicable scope,and can be used with different equipment. Now it is widely used in sand, construction, building materials,pharmaceutical, agriculture,food and other various industries. And its using effect can achieve screening precision of different industries. |
Advantages
| 1 The exciting force which is produced by device’s running is adjustable. And it can be adjusted according to the user's screening needs to reduce the vibration of the material; |
2 Large capacity. It can be applied in production work of large quantity,with the effect of the small noise, and brings different experience for the users. | |
3 The powerful vibration of the screen box can reduce the screen aperture’s blocking phenomenon of materials to make the whole screening process more effective, that has a great effect on the improvement of production efficiency. |
Model | Layer | Sieve Area | Mesh Size | Maximum Feeding Size | Capacity | Vibration Power | Double Amplitude | Power | Screen Inclination | Sieve Size | Weight | Overall size (mm) |
2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200× 2500 | 3500 | 2930×186 ×870 |
3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200× 2500 | 3850 | 3070×1860 ×1210 |
2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200× 3000 | 4200 | 3430×1860 ×870 |
3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200× 3700 | 4600 | 3570×1860 ×1210 |
2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200× 3700 | 4600 | 4050×1860 ×870 |
3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500× 3500 | 5200 | 4270×1860 ×1210 |
2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500× 3500 | 5890 | 4120×2210 ×1230 |
3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500× 3500 | 6700 | 4360×2210 ×1610 |
2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500× 4500 | 6330 | 5120×2210 ×1230 |
Pharmaceutical industry use oscillating screen multilayers separator
Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry.Since founded, our company has been making the coal gangue crusher, shale crusher, fine crusher and slag crusher as main developing direction.
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years.
We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
