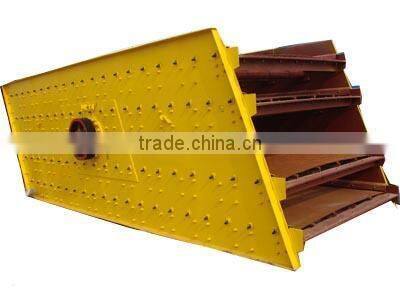

Hongyun Mining Machinery Circular Vibrating Screen
Product Description--circular vibrating screen
1. Circular vibrating screen is a kind of equipment with widely application. It uses the strong vibratory force of itselves’ running to make the material do vibrating and throwing sports on the screen so as to achieve the using effect of screening.
2. Circular vibrating screen can adjust the size of the screen according to materials' granularity, thus it can meet the screening demand of different materials.
Applications --circular vibrating screen
Circular vibrating screen is widely used in sand, construction, building materials, pharmaceutical industry, agriculture, food and other various industries. And its using effect can achieve screening precision of different industries.
Structure picture--circular vibrating screen
Circular vibrating screen is composed of vibrator, screen box, bearing, suspension device, transmission device and so on.
Working principle picture--circular vibrating screen
Advantages--circular vibrating screen
1 Adjustable the exciting force produced by device’s running.
2 Simple structure
3 Less screen aperture’s blocking phenomenon, high efficiency
4 High usability of transmission
5 Special shockproof device to ensure long using life
6 Large capacity
Detailed parameters --circular vibrating screen
Model | Layer | Sieve Area | Mesh Size | Capacity | Power | Sieve Size | Weight | Overall size |
2YK1225 | 2 | 6 | 4-50 | 8-60 | 5.5 | 1200×2500 | 3500 | 2930×1860×870 |
3YK1225 | 3 | 9 | 4-50 | 10-70 | 5.5 | 1200×2500 | 3850 | 3070×1860×1210 |
2YK1230 | 2 | 7.2 | 4-50 | 12-78 | 7.5 | 1200×3000 | 4200 | 3430×1860×870 |
3YK1230 | 3 | 10.8 | 4-50 | 13-80 | 7.5 | 1200×3700 | 4600 | 3570×1860×1210 |
2YK1237 | 2 | 8.88 | 4-50 | 15-86 | 7.5 | 1200×3700 | 4600 | 4050×1860×870 |
3YK1237 | 3 | 13.22 | 4-50 | 16-90 | 7.5 | 1500×3500 | 5200 | 4270×1860×1210 |
2YK1535 | 2 | 10.5 | 5-50 | 20-125 | 11 | 1500×3500 | 5890 | 4120×2210×1230 |
3YK1535 | 3 | 15.75 | 5-50 | 21-125 | 11 | 1500×3500 | 6700 | 4360×2210×1610 |
2YK1545 | 2 | 13.5 | 5-50 | 22-150 | 15 | 1500×4500 | 6330 | 5120×2210×1230 |
3YK1545 | 3 | 20.25 | 5-50 | 22-150 | 15 | 1500×4500 | 6800 | 5360×2210×1610 |
4YK1545 | 4 | 27 | 5-50 | 22-155 | 18.5 | 1500×4500 | 7800 | 5930×2210×2060 |
2YK1548 | 2 | 14.4 | 5-50 | 22.5-162 | 15 | 1500×4800 | 6980 | 5420×2210×1230 |
3YK1548 | 3 | 21.6 | 5-50 | 22.5-162 | 15 | 1500×4800 | 7700 | 5660×2210×1610 |
4YK1548 | 4 | 28.8 | 5-50 | 22.5-162 | 18.5 | 1500×4800 | 8700 | 6230×2210×2060 |
2YK1848 | 2 | 17.28 | 5-80 | 25-206 | 15 | 1800×4800 | 9080 | 5420×2550×1420 |
3YK1848 | 3 | 25.92 | 5-80 | 32-276 | 18.5 | 1800×4800 | 9600 | 5660×2550×1780 |
4YK1854 | 4 | 34.54 | 5-80 | 32-285 | 22 | 1800×4800 | 11100 | 6290×2550×2160 |
2YK1854 | 2 | 19.44 | 5-80 | 32-312 | 18.5 | 1800×5400 | 10150 | 5960×2500×1420 |
3YK1854 | 3 | 29.16 | 5-80 | 32-312 | 22 | 1800×5400 | 10840 | 6260×2550×1780 |
4YK1854 | 4 | 38.88 | 5-80 | 32-336 | 30 | 1800×5400 | 12840 | 6830×2550×2160 |
2YK2160 | 2 | 25.2 | 5-100 | 50-475 | 30 | 2100×2600 | 11780 | 6720×2840×1530 |
3YK2160 | 3 | 37.8 | 5-100 | 50-475 | 30 | 2100×2600 | 12800 | 7030×2840×1910 |
4YK2160 | 4 | 50.4 | 5-100 | 50-497 | 37 | 2100×2600 | 14800 | 7300×2840×2380 |
2YK2460 | 2 | 28.8 | 5-100 | 65-550 | 37 | 2400×6000 | 15600 | 7020×3140×1530 |
3YK2460 | 3 | 43.2 | 5-100 | 70-620 | 37 | 2400×6000 | 17600 | 7300×3140×1910 |
4YK2460 | 4 | 57.6 | 5-100 | 80-680 | 45 | 2400×6000 | 19600 | 7600×3140×2380 |

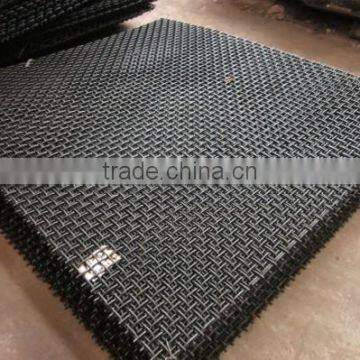

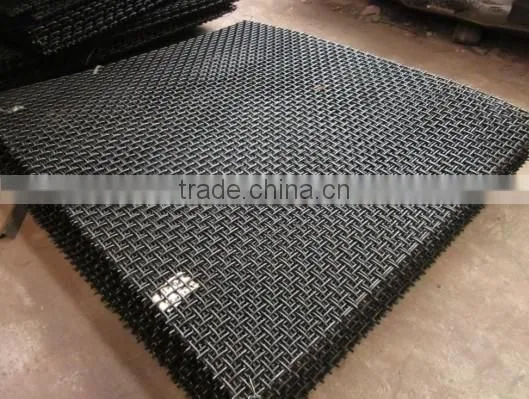

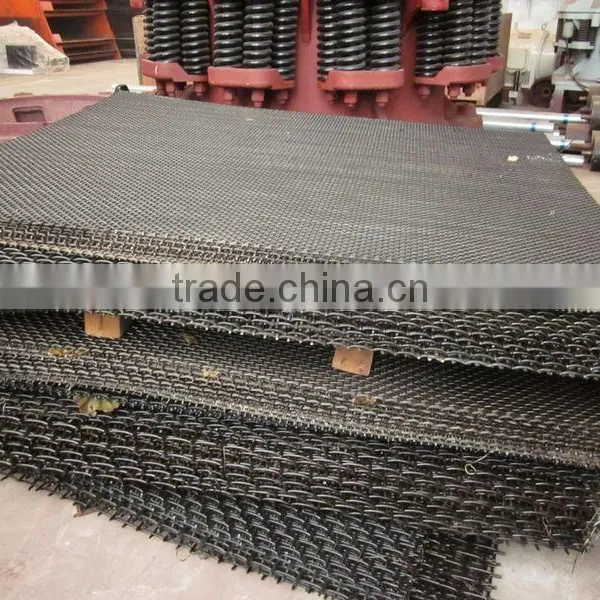

The screen:
Supply perfect after-sale service:
Company is responsible for one package service including buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators. One year warranty and long-term supply of components.
