Large Capacity Vibrating Screen

Name: Large Capacity Vibrating Screen
Brand: Hongyun
Availability: InStock

FOB Price

US$ 4,030 - 5,000 / Set

1 Set(Min. Order)

Port Qingdao Shenzhen Shanghai Dalian Lianyungang Tianjing All inland ports
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Linear, Large capacity vibrating screen
Application	Other, Ore, Sand, construction, pharmaceutical industry, agriculture,	Place of Origin	Henan, China
Brand Name	Hongyun	Model Number	3YK1237
Power(W)	7.5kw	Dimension(LWH)	427018601210mm
Weight	5200kg	Certification	CE,ISO
Warranty	one year warranty	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Large capacity vibrating screen has export standard package,also can do special package as customers' requirements.

Product Description

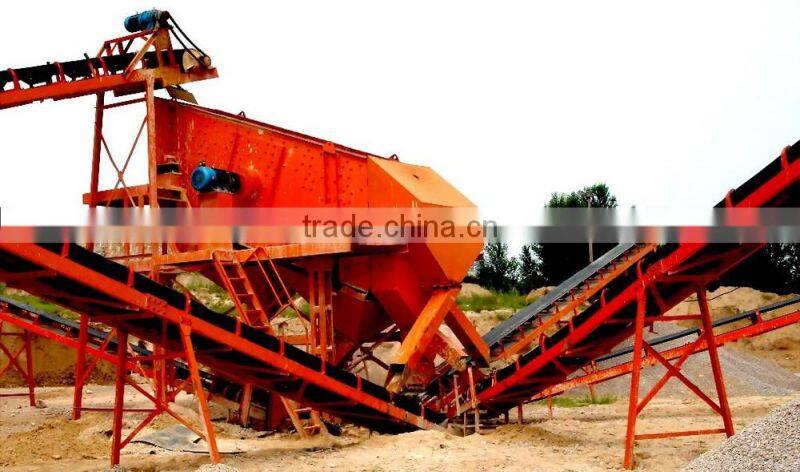

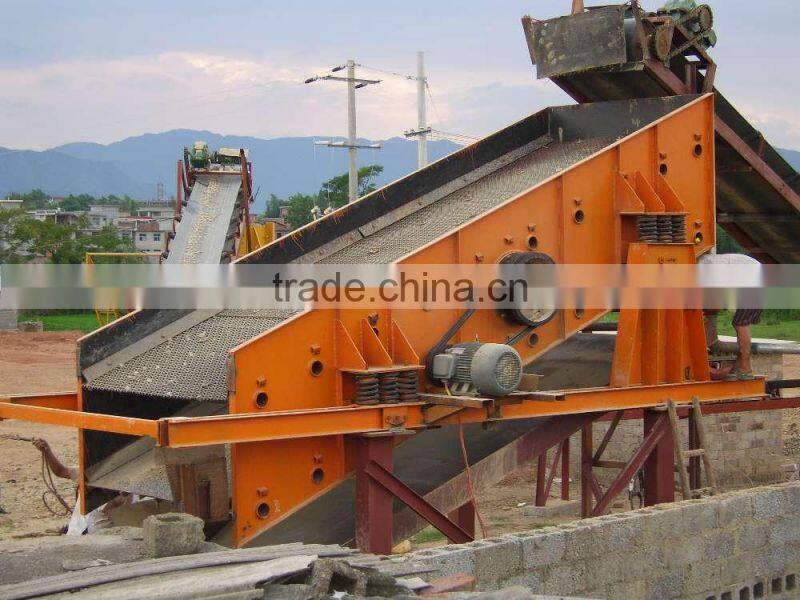

Large capacity vibrating screen

Application

It is widely used in sand, construction, building materials, pharmaceutical industry, agriculture, food and other various industries.

Structure

It is mainly composed of vibrator, screen box, bearing or suspension, transmission and so on.

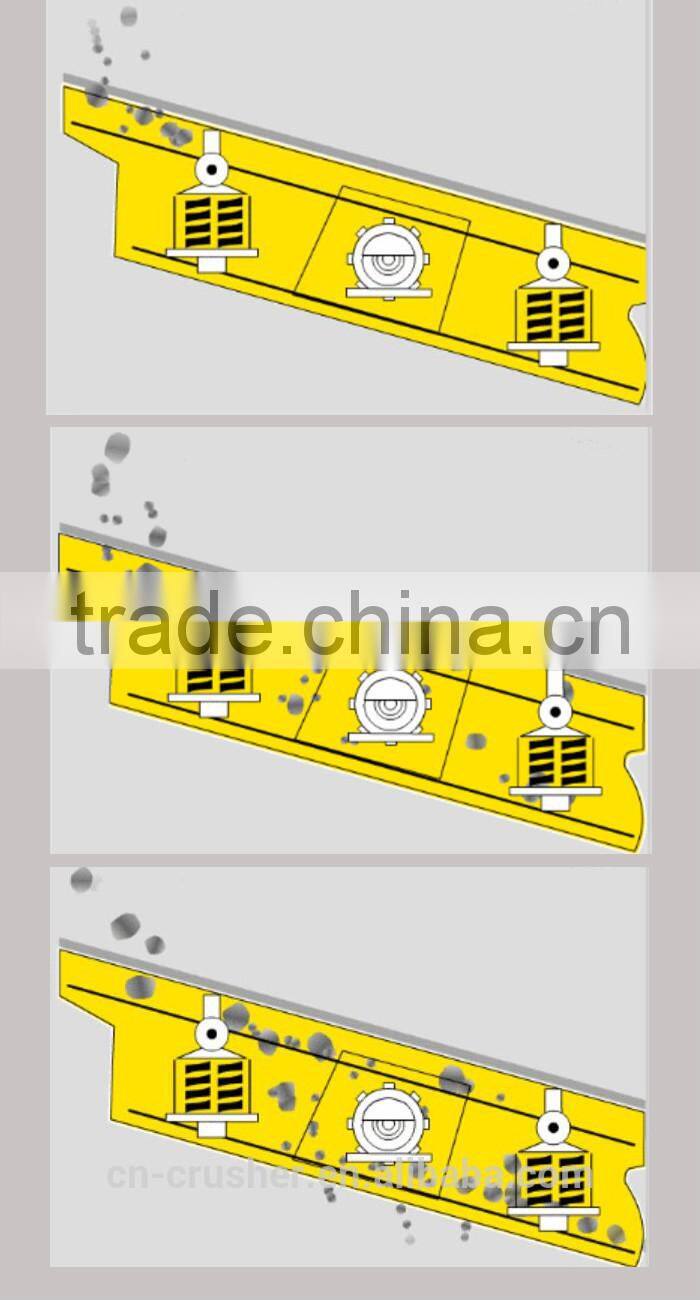

Working principle

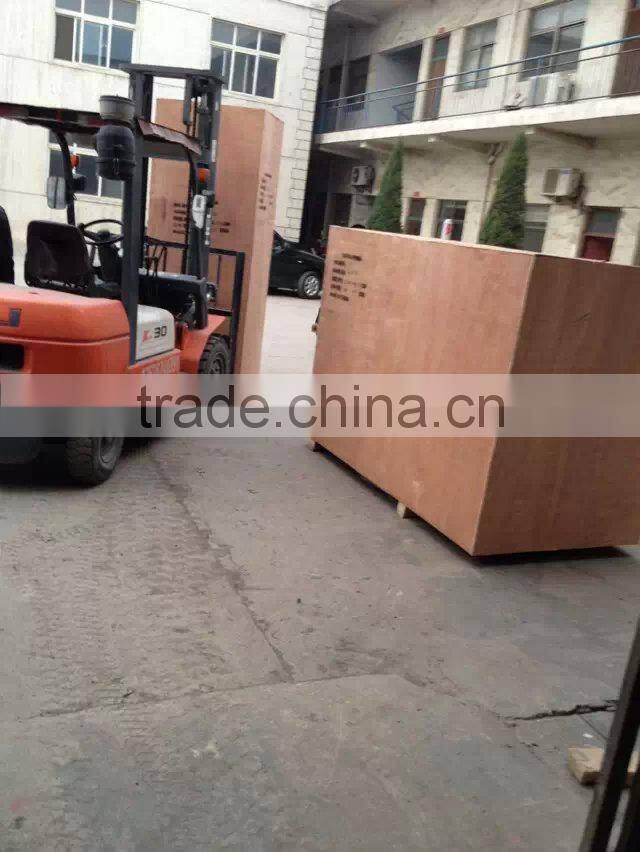

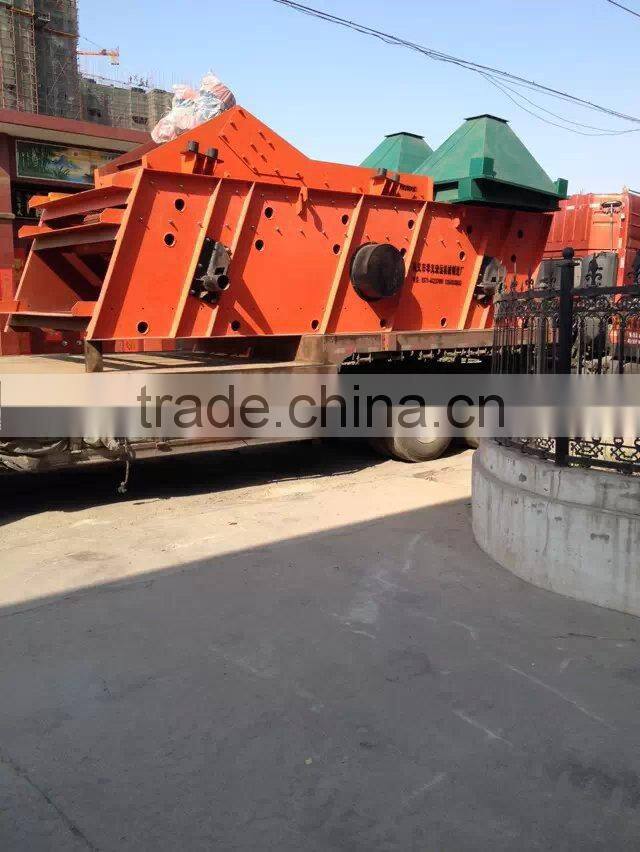

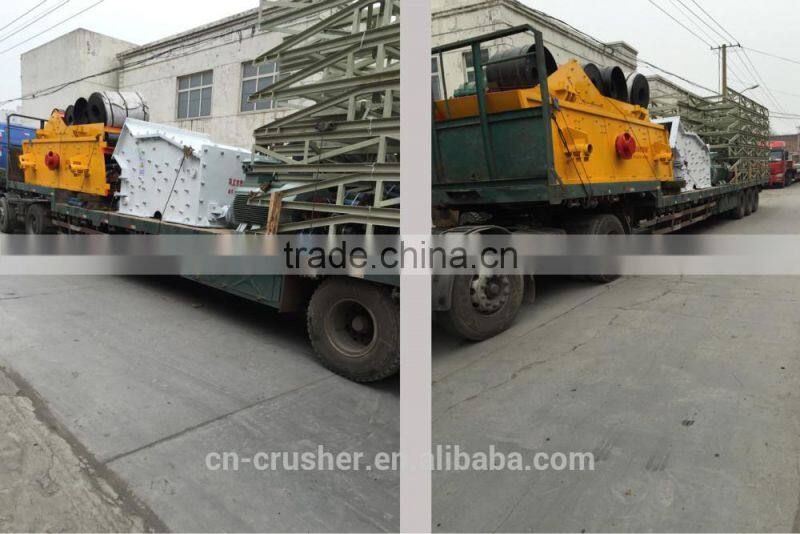

Packaging and shipping

Large capacity xxnx vibrating screen has export standard package,also can do special package as customers' requirements.

We can ships it though Qingdao,Shanghai,Tianjing,Dalian,Lianyungang ports and all inland ports.

Our services

Our company is responsible one package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators. Three Guarantees, one year warranty, and long-term supply of components.

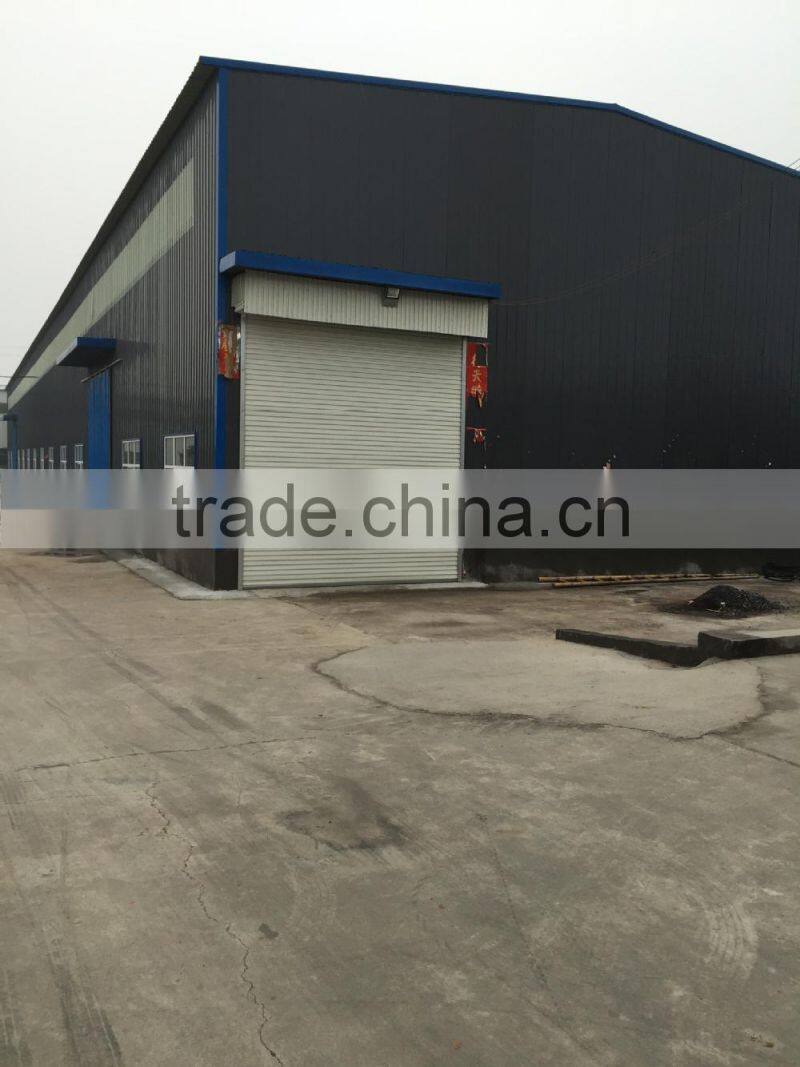

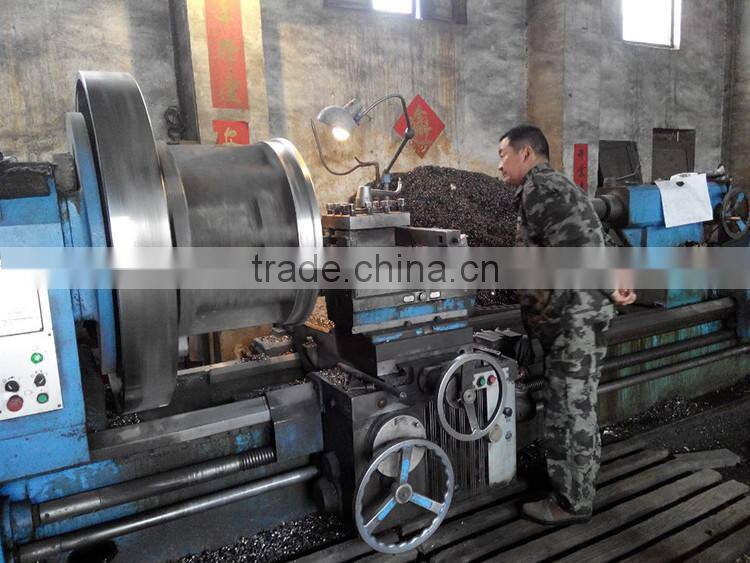

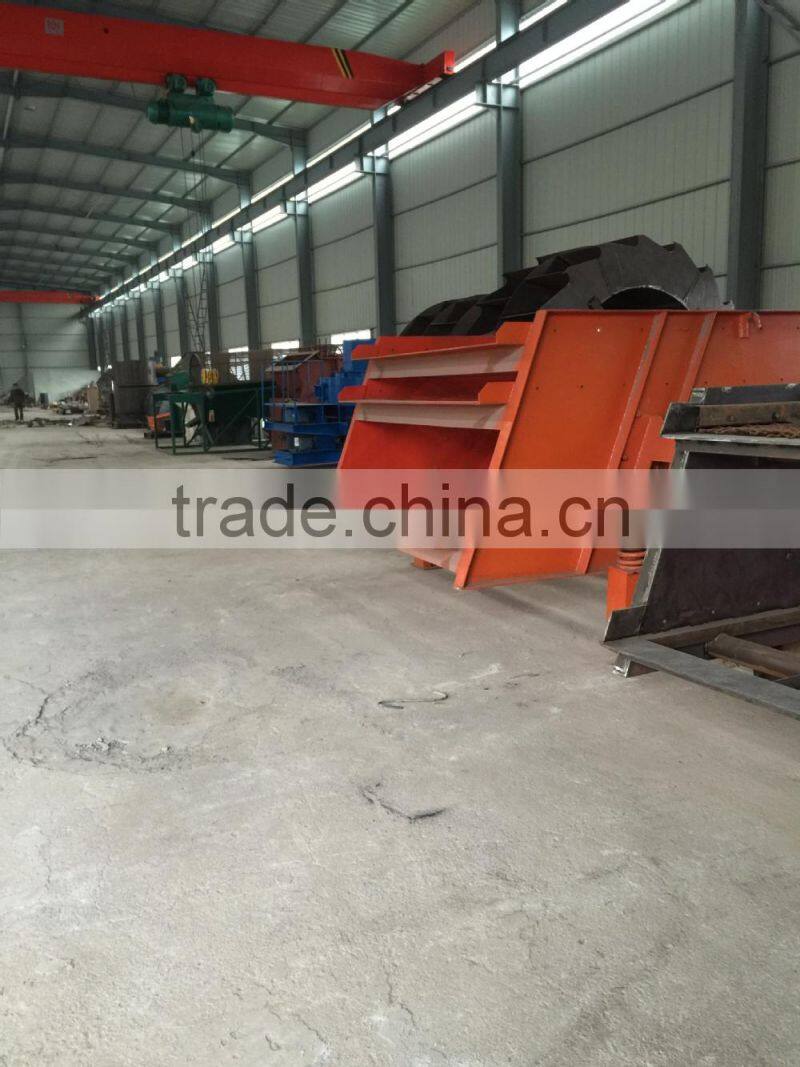

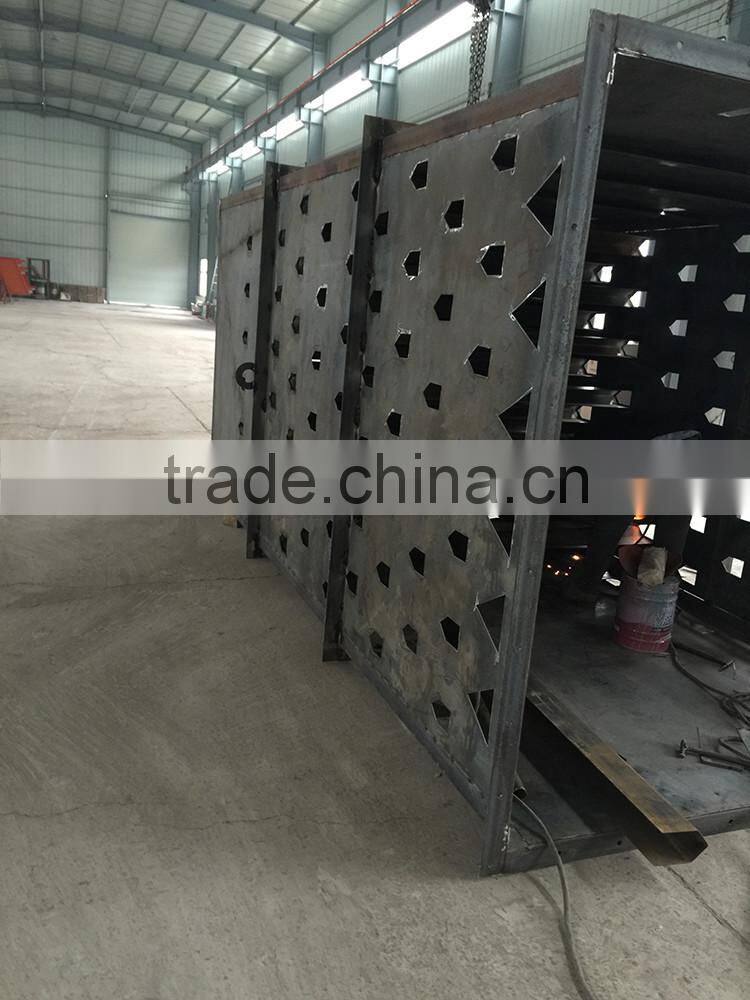

Factory photos

Customer visit

Technical parameters of Adjustable exciting force screening machine

Model	Layer	Sieve Area (m2)	Mesh Size (mm)	Maximum Feeding Size (mm)	Capacity (m3/h)	Vibration Power (r/min)	Double Amplitude (mm)	Power (kw)	Screen Inclination (Angle)	Sieve Size (mm)	Weight (kg)	Overall size (L×W×H)(mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200×3700	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.22	4-50	400	16-90	800-970	8	7.5	20	1500×3500	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	15	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	18.5	20	1800×4800	9600	5660×2550×1780
4YK1854	4	34.54	5-80	400	32-285	750	8	22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	18.5	20	1800×5400	10150	5960×2500×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	30	20	2100×2600	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	30	20	2100×2600	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	37	20	2100×2600	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	45	20	2400×6000	19600	7600×3140×2380
