3YK, 5YK xxsx stone vibrating screen for mining

Name: 3YK, 5YK xxsx stone vibrating screen for mining
Brand: Hongyun
Availability: InStock

FOB Price

USD $42,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 80 Set / Sets per Month
Port Shanghai Qingdao Shenzhen Dalian
Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Linear
Application	Ore	Place of Origin	Henan, China
Brand Name	Hongyun	Model Number	4YK2460
Voltage	according to the different countries	Power(W)	45kw
Dimension(LWH)	760031402380mm	Weight	19.6
Certification	CE ISO	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

xxsx stone vibrating screen uses standard export containers, nude packing for main machine, plywood box for spare parts or the package of the xxsx stone vibrating screen can be according to customers' requirements.

Product Description

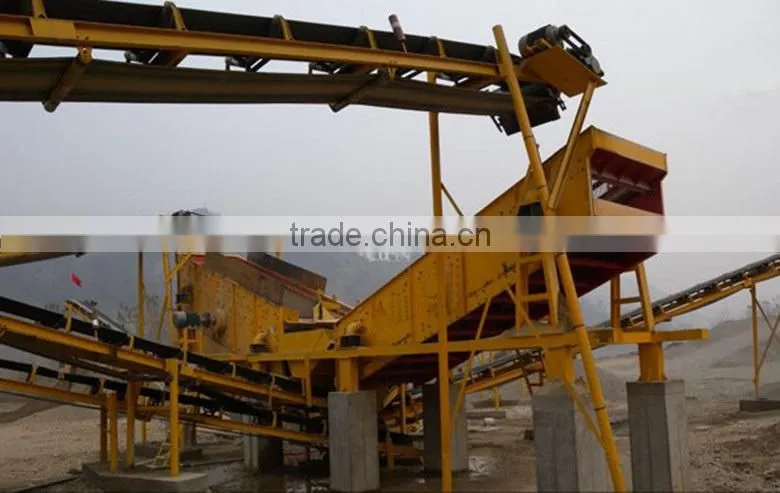

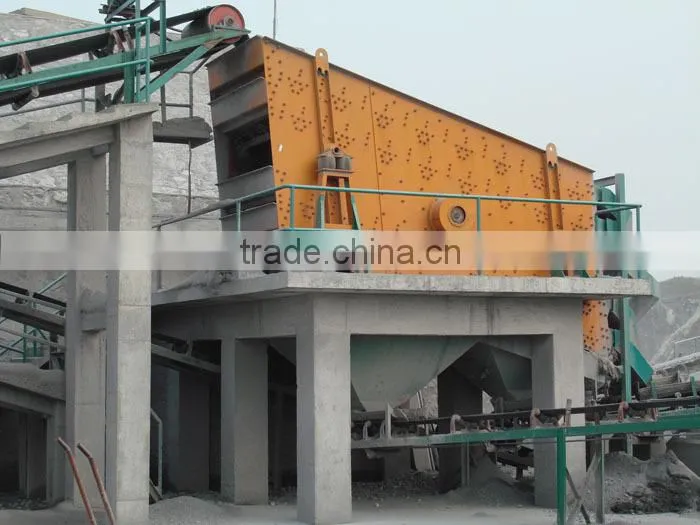

xxsx stone vibrating screen

xxsx stone vibrating screen application

Vibration machine is a kind of equipment applied more widely, mainly composed of vibrator, screen box, bearing or suspension, transmission and so on.

Vibration machine advantages

1 The exciting force which is produced by device’s running is adjustable. And it can be adjusted according to the user's screening needs to reduce the vibration of the material

2Because of the simple structure, it is easy and quick when replacing the components to abandon the cumbersome steps

3 The powerful vibration of the screen box can reduce the screen aperture’s blocking phenomenon of materials to make the whole screening process more effective, that has a great effect on the improvement of production efficiency

4 The high usability of transmission increases the running efficiency of the device, that makes the whole process more efficient and energy saving

5 The use of special shockproof device reduces collision and friction of too intense vibration to other connecting parts in the process of vibrating screening

6. Large capacity. It can be applied in production work of large quantity, with the effect of the small noise, and brings different experience for the users

Model	Layer	Sieve Area (m2)	Mesh Size (mm)	Maximum Feeding Size (mm)	Capacity (m3/h)	Vibration Power (r/min)	Double Amplitude (mm)	Power (kw)	Screen Inclination (Angle)	Sieve Size (mm)	Weight (kg)	Overall size (L×W×H)(mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200×3700	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.22	4-50	400	16-90	800-970	8	7.5	20	1500×3500	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	15	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	18.5	20	1800×4800	9600	5660×2550×1780
4YK1854	4	34.54	5-80	400	32-285	750	8	22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	18.5	20	1800×5400	10150	5960×2500×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	30	20	2100×2600	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	30	20	2100×2600	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	37	20	2100×2600	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	45	20	2400×6000	19600	7600×3140×2380
