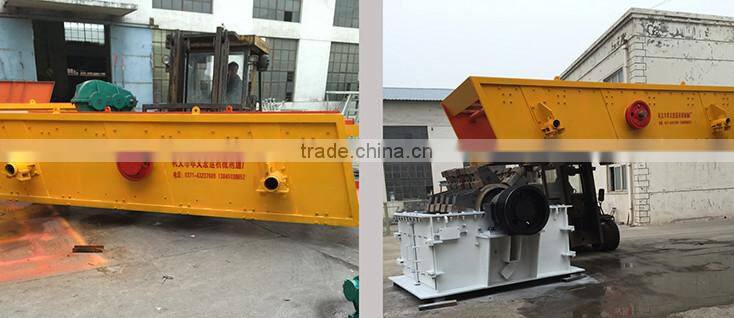

Small or Mini Vibrating Screen Separator
- Shanghai Qingdao Shenzhen Dalian
- T/T L/C Money Gram Credit Card PayPal
You May Like
-
Sand Production Line Crushing and Screening Plants Vibrating Sieve Machine 4YK2460 Low Price Vibrating Screen for Mining
-
Hot Vibrating Screen or Low Price Riddler
-
High Performance Vibrating Screen or Low Price Riddler
-
High Frequency Vibrating Screen With Large Capacity of 70-620 M3/h
-
Long Life Linear Vibrating Screen With High Frequency
-
Made in China , Machine Manufacturers Xxsx Vibration Machine
Product Details
| Condition | New | Type | Linear | |
| Application | Ore | Place of Origin | Henan, China | |
| Brand Name | Hongyun | Model Number | 4YK2460 | |
| Voltage | according to the different countries | Power(W) | 45kw | |
| Dimension(L*W*H) | 7600*3140*2380mm | Weight | 19.6 | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |

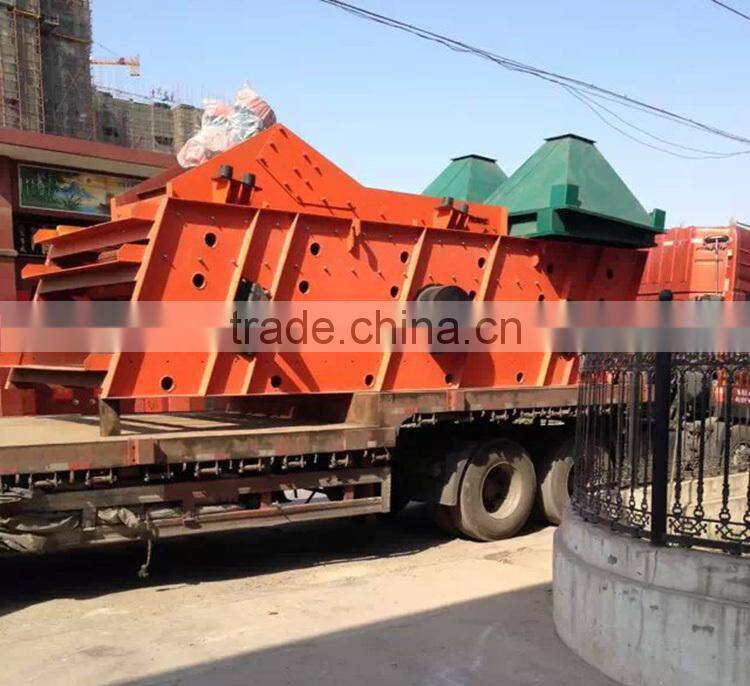

Vibrating screen separator uses standard export containers, nude packing for main machine, plywood box for spare parts or the package of the vibrating screen separator according to customers' requirements.
Product Description
Specification
1,High performance
2,Wear resisting
3,Simple structure
4,Small noise
Vibrating screen separator application

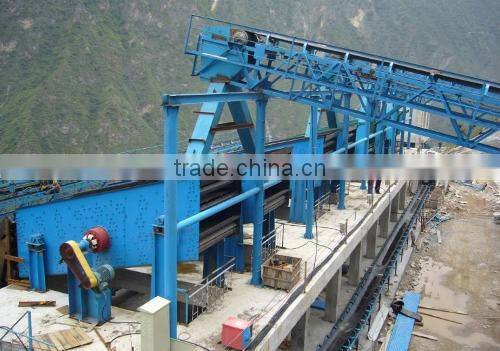

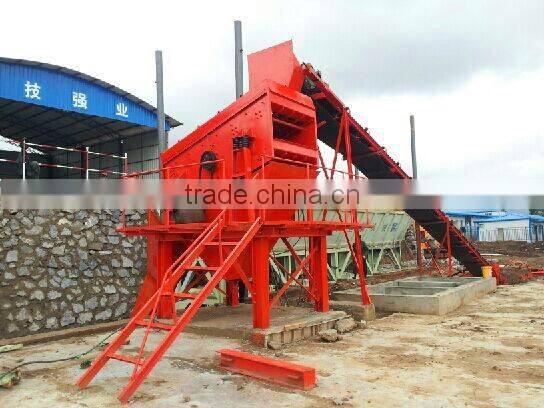

It is widely used in sand, construction, building materials, pharmaceutical industry, agriculture, food and other various industries.
Vibrating screen separator structure
It is mainly composed of vibrator, screen box, bearing or suspension, transmission and so on.
Vibrating screen separator working principle
It uses the strong vibratory force of itselves’ running to make the material vibrating and throwing sports on the screen so as to achieve the using effect of screening.

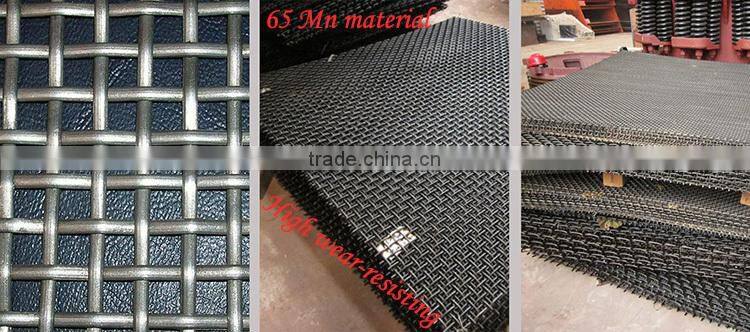

It can adjust the size of the screen according to the particle size of materials, and meet the screen demand of different materials.
Vibrating screen separator advantage
1,The exciting force which is produced by device’s running is adjustable. And it can be adjusted according to the user's screening needs to reduce the vibration of the material
2,The use of special shockproof device reduces collision and friction of too intense vibration to other connecting parts in the process of vibrating screening
3,Large capacity. It can be applied in production work of large quantity, with the effect of the small noise, and brings different experience for the users
Model | Layer | Sieve Area | Mesh Size | Maximum Feeding Size | Capacity | Vibration Power | Double Amplitude | Power | Screen Inclination | Sieve Size | Weight | Overall size |
3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860×1210 |
2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210×1230 |
3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210×1610 |
2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6330 | 5120×2210×1230 |
3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6800 | 5360×2210×1610 |
4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500×4500 | 7800 | 5930×2210×2060 |
2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500×4800 | 6980 | 5420×2210×1230 |
3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500×4800 | 7700 | 5660×2210×1610 |
4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500×4800 | 8700 | 6230×2210×2060 |
2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800×4800 | 9080 | 5420×2550×1420 |
3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800×4800 | 9600 | 5660×2550×1780 |
4YK1854 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800×4800 | 11100 | 6290×2550×2160 |
2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800×5400 | 10150 | 5960×2500×1420 |
3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800×5400 | 10840 | 6260×2550×1780 |
4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800×5400 | 12840 | 6830×2550×2160 |
2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100×2600 | 11780 | 6720×2840×1530 |
3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100×2600 | 12800 | 7030×2840×1910 |
4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100×2600 | 14800 | 7300×2840×2380 |
2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400×6000 | 15600 | 7020×3140×1530 |
3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400×6000 | 17600 | 7300×3140×1910 |
4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400×6000 | 19600 | 7600×3140×2380 |
Our factroy
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, our company has been making the coal gangue crusher, shale crusher, fine crusher and slag crusher as main developing direction. We improved their performance and quality to have offered thousands of equipment of excellent performance and stable quality to society.
Our service tenet: “service for users, responsible to users, to satisfy users!”
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme. Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years. We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
