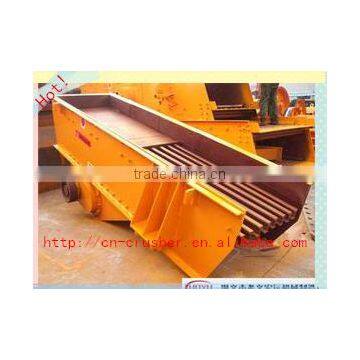

Vibrating feeder price with AC motor of mining machine
- 20 Set / Sets per Month
- Qingdao Tianjin etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Henan, China | Brand Name | hongyun | |
Model Number | GZD-960*3800 | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Under engineer guide
Product Description
Aplplication:
vibrating feeder can be used in concert with different types of crushers, screening and classificatory equipment and drying equipments, etc. Now, it is widely used in sand making industries, mineral processing, ore milling, coal industries, metallurgy, chemistry and so on.
Working principle:
Vibrating feeder makes use of the centrifugal force which produced by its vibrator to make the screen box and vibrator do center movement obtrusively and continuously so that to achieve the effect of vibrating feeding .
Main advantages:
1,The combined using of vibrator and eccentric block greatly improves its vibration amplitudethat makes the transportation quickly and smoothly.
2,The Special design of article grid can prevent the phenomenon of materials clogging during transportation.
3,High efficiency and low energy consumption.
Technical parameters:
Type | Size of funnel(mm) | Max.Feeding size(mm) | Capacity(t/h | Power(kw) | Weight(kg) | Overall dimension(mm) |
GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
About us:
If you want to know more about our products, please contact us timely!
Contact information:
♦ Wechat:lulu15893374678
♦ Whatsapp:+8615893374678
♦ Tel: +8613598071775
♦ QQ:3240875853
♦ Website:
Company Profile

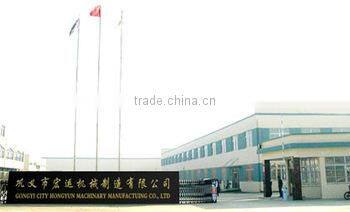

Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme. Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years. We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
