Help CenterVibrating Feeder for Cone Crusher, Jaw Crusher
Related Products
-
Vibrating Feeder for Mining Machine With Construction Equipment PricesUS$ 9,700 - 10,000MOQ: 1 Set -
Uniformly and Continuously Feeding, Vibrating Feeder With High QualityUS$ 17,230 - 18,000MOQ: 1 Set
-
120-600t/h, Providing Overseas Engineer Services Vibrating Feeder PriceUS$ 12,200 - 14,000MOQ: 1 Set
-
With High Wear-resistant Material , Low Energy Consumption Mining Vibrating FeederUS$ 9,700 - 10,000MOQ: 1 Set
-
Large Capacity Mining Vibrating Feeder Mini Stone Vibrating Feeder| Stone Crushing Vibrating Feeder| Stone Vibrating FeederUS$ 10,000 - 10,000MOQ: 1 Set
Aplplication:
vibrating feeder can be used in concert with different types of crushers, screening and classificatory equipment and drying equipments, etc. Now, it is widely used in sand making industries, mineral processing, ore milling, coal industries, metallurgy, chemistry and so on.
Working principle:

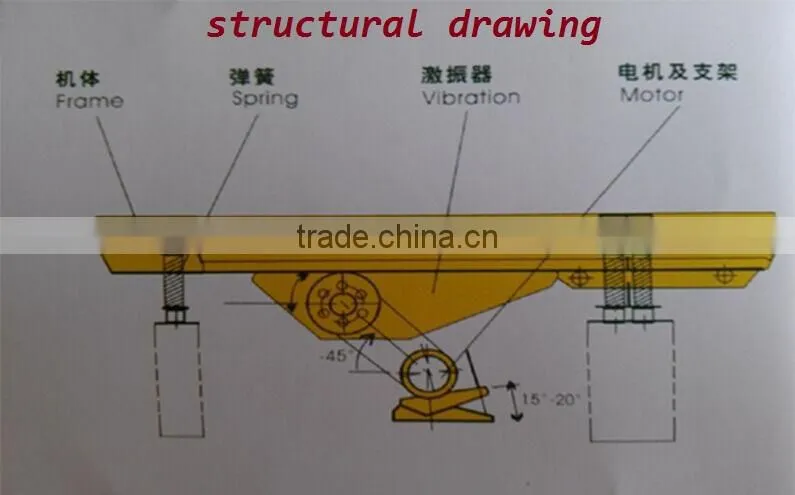

Vibrating feeder makes use of the centrifugal force which produced by its vibrator to make the screen box and vibrator do center movement obtrusively and continuously so that to achieve the effect of vibrating feeding .
Main advantages:
1,The combined using of vibrator and eccentric block greatly improves its vibration amplitudethat makes the transportation quickly and smoothly.
2,The Special design of article grid can prevent the phenomenon of materials clogging during transportation.
3,High efficiency and low energy consumption.
Technical parameters:
Type | Size of funnel(mm) | Max.Feeding size(mm) | Capacity(t/h | Power(kw) | Weight(kg) | Overall dimension(mm) |
GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
About us:
If you want to know more about our products, please contact us timely!
Contact information:
♦ Wechat:lulu15893374678
♦ Whatsapp:+8615893374678
♦ Tel: +8613598071775
♦ QQ:3240875853
♦ Website:
Send Inquiry to This Supplier
